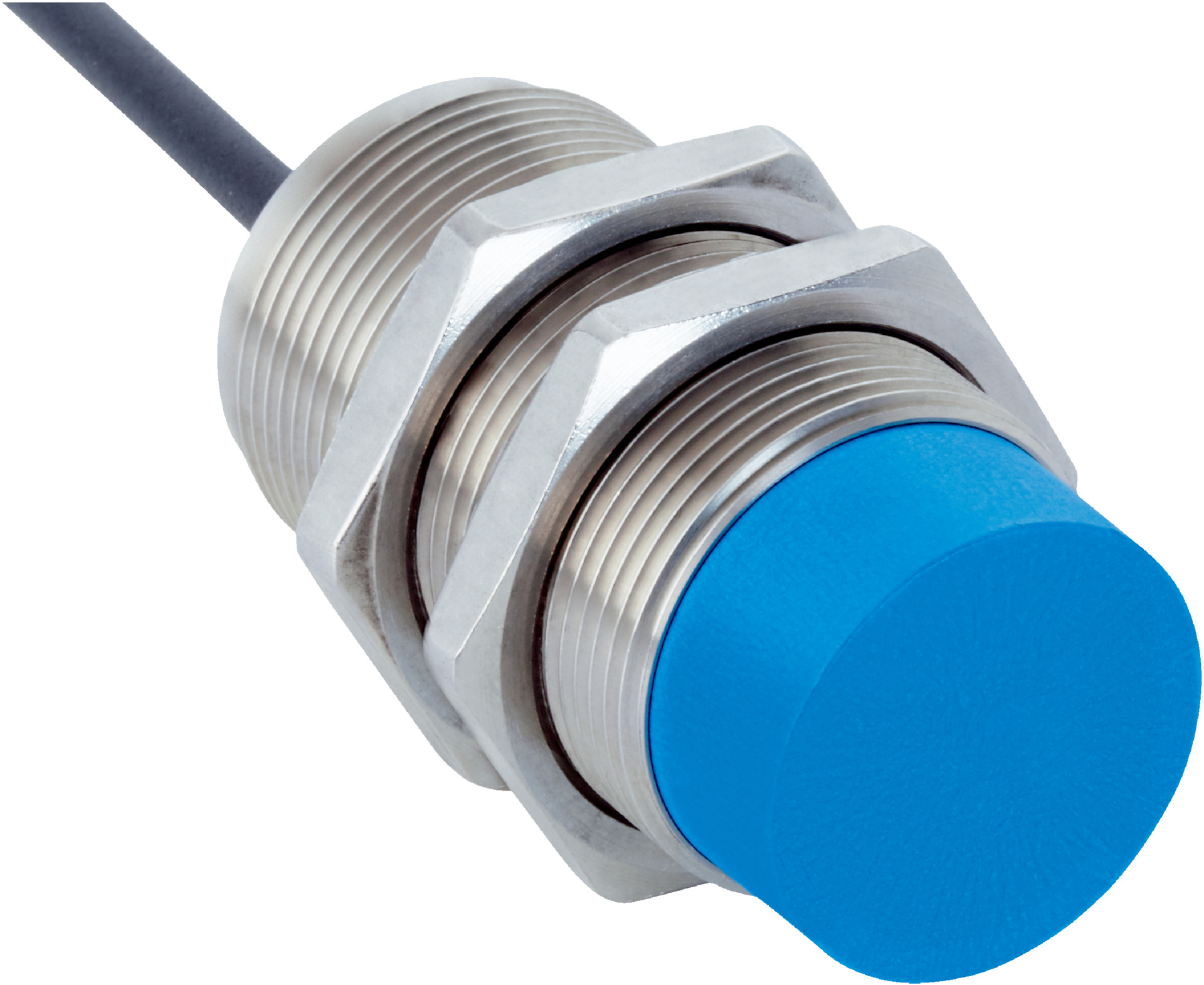

Inductive Proximity Sensor M30 | Stainless Steel V4A | 20mm Sensing Range | IP68 & IP69K Rated | by SICK
The Inductive Proximity Sensor M30 is designed for robust sensing in challenging environments, featuring a stainless steel V4A housing and a sensing range of 20 mm. With an IP68 and IP69K rating, it's perfect for mobile machines and hygienic washdown zones, ensuring reliable performance even under harsh conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Standard design, stainless steel V4A (DIN 1.4404 / AISI 316L)
- Thread size: M30 x 1.5
- Sensing range Sn: 20 mm
- Safe sensing range Sa: 16.2 mm
- Installation type: Non-flush
- Switching frequency: 500 Hz
- Connection type: Cable, 3-wire, 2 m
- Switching output: PNP, normally open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP68 and IP69K
- Supply voltage: 7.2 V DC to 60 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2.5 V
- Time delay before availability: 100 ms
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- EMC: Complies with Motor Insurance Directive ECE-R10 Rev. 5 and DIN ISO 11452-2
- Environmental test: Quick temperature change EN 60068-2-14
- Corrosion test: Salt spray test EN 60068-2-52 severity 5
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PUR
- Conductor size: 0.5 mm²
- Cable diameter: Ø 5 mm
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: EN 60068-2 series
- Ambient operating temperature: –40 °C to +100 °C
- Housing length: 61 mm
- Thread length: 43.65 mm
- Tightening torque max: Typ. 100 Nm
- Protection class: III
- UL File No.: E181493
- Dimensions (H x L x W): 61mm x 61mm x 30mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M30 x 1.5 thread size
- Non-flush installation type with sensing range of 20 mm and safe sensing range of 16.2 mm
- High switching frequency of 500 Hz with PNP normally open output
- Cable connection type: 3-wire, 2 m length
- Enclosure rating IP68 and IP69K for protection against dust and high-pressure washdown
- Resistant to cleaning agents and temperature resistant
- Shock and vibration resistant with compliance to EN 60068 standards
- Stainless steel V4A housing (DIN 1.4404 / AISI 316L) and plastic sensing face (LCP)
- Short-circuit and power-up pulse protection included
- Wide supply voltage range from 7.2 V DC to 60 V DC
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensor installation and wiring to ensure proper function and safety.
Applications
- Mobile machines
- Hygienic and washdown zones
- Difficult application conditions requiring robust sensing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- High resistance to cleaning agents supports hygienic environments without frequent replacements
- Energy-efficient operation with low current consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

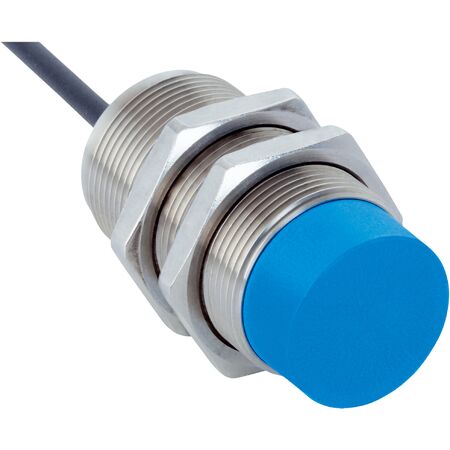

The SICK IMS30-20NPSNU2S inductive sensor is available for immediate purchase. Ideal for use in mobile machinery, hygienic washdown zones, and challenging industrial environments.
