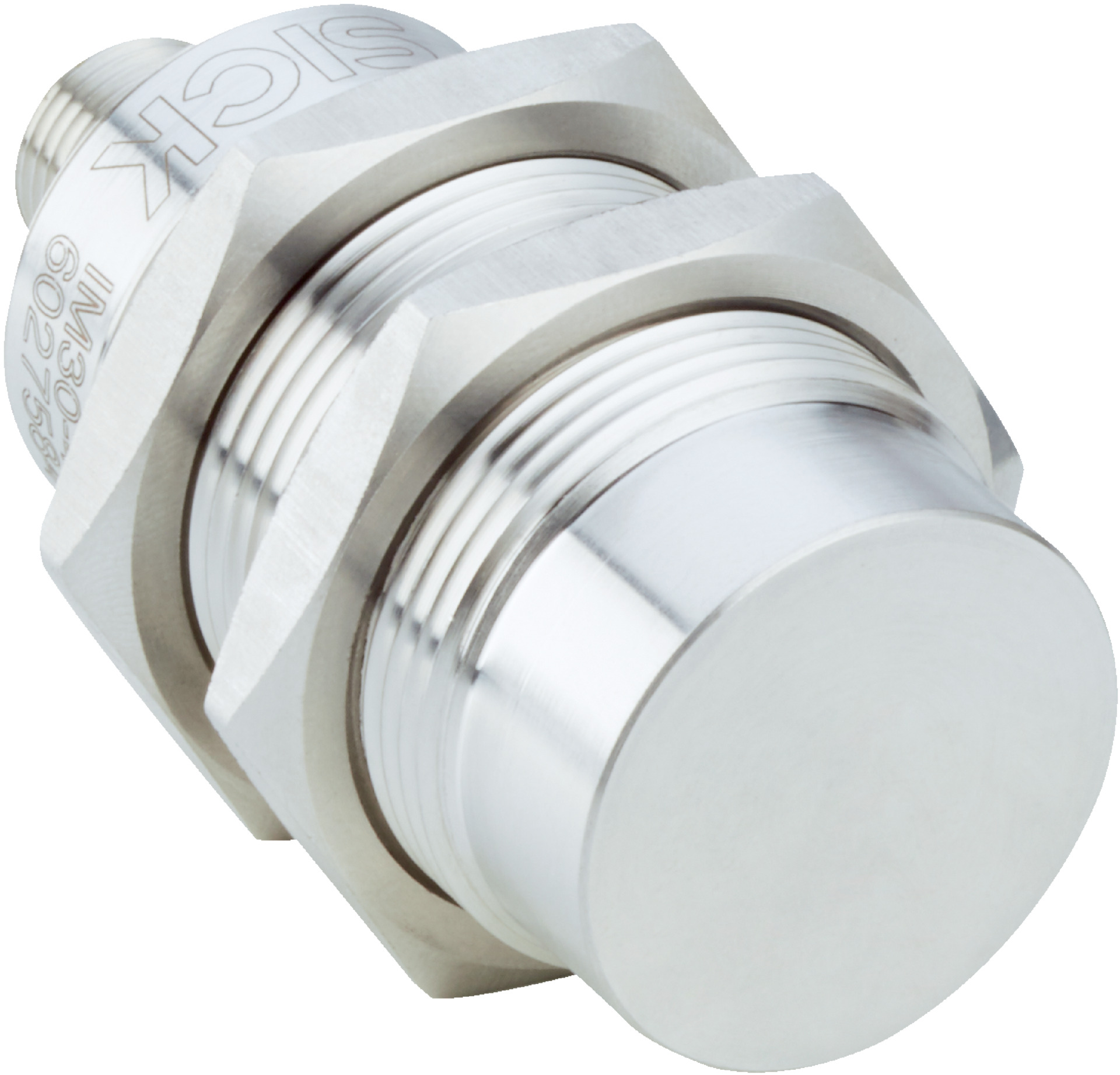

Inductive Proximity Sensor M30 | Stainless Steel | 40mm Sensing Range | IP68 & IP69K Rated | by SICK
The Inductive Proximity Sensor M30 is designed for reliable object detection in industrial automation, featuring a robust stainless steel housing and a sensing range of 40 mm. With an IP68 and IP69K enclosure rating, it withstands harsh environments, making it ideal for applications involving coolants and lubricants. This sensor is built for durability and efficiency, ensuring minimal downtime and maintenance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Metric, M30 x 1.5 thread
- Diameter: 30 mm
- Pressure resistance: ≤ 40 bar
- Sensing range Sn: 40 mm
- Safe sensing range Sa: 32.4 mm
- Installation type: Non-flush
- Switching frequency: 90 Hz
- Connection type: Male connector M12, 4-pin
- Switching output: PNP, Normally Open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP68, IP69K
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 30 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 5%
- Temperature drift: ≤ 10%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +85 °C
- Housing material: Stainless steel V2A, DIN 1.4305 / AISI 303
- Sensing face material: Stainless steel V2A, DIN 1.4305 / AISI 303
- Tightening torque max: ≤ 150 Nm
- Protection class: III
- Communication interface: IO-Link V1.0, COM2 (38.4 kBaud)
- Dimensions (H x L x W): 30mm x 63.5mm x 30mm
- Weight: 0.2 kg
Key Features
- Metric housing with M30 x 1.5 thread size
- Non-flush installation type
- Sensing range Sn of 40 mm with safe sensing range Sa of 32.4 mm
- Pressure resistance up to 40 bar
- Switching frequency of 90 Hz with PNP normally open output
- Connection via male M12 4-pin connector
- Enclosure rating IP68 and IP69K for high protection
- Sensing face made of stainless steel V2A resistant to coolant lubricants
- Visual adjustment indicator and IO-Link communication interface
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
- Operating temperature range from -25 °C to +85 °C
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial sensor wiring and IO-Link communication protocols to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient operation with low power consumption
- Resistant to harsh environments reducing risk of sensor failure and downtime
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

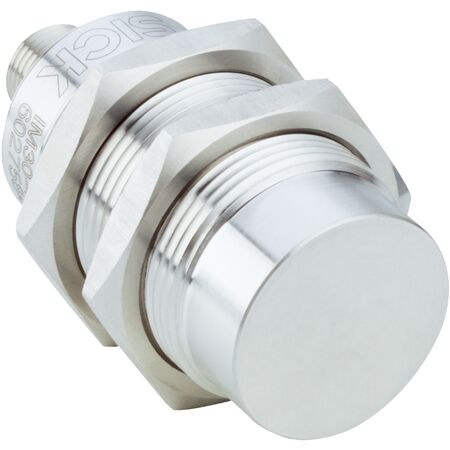

The SICK IM30-40NPS-VC1 inductive sensor is available for immediate purchase, ideal for industrial automation applications requiring robust and reliable object detection in harsh environments.
