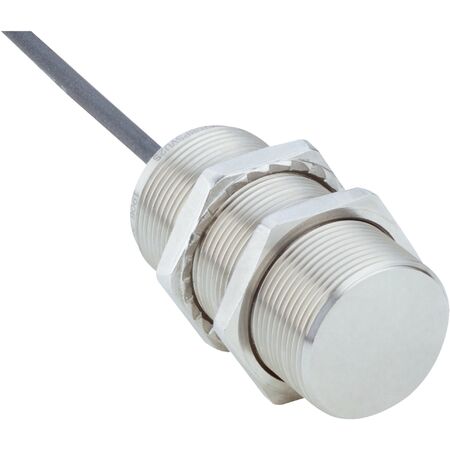

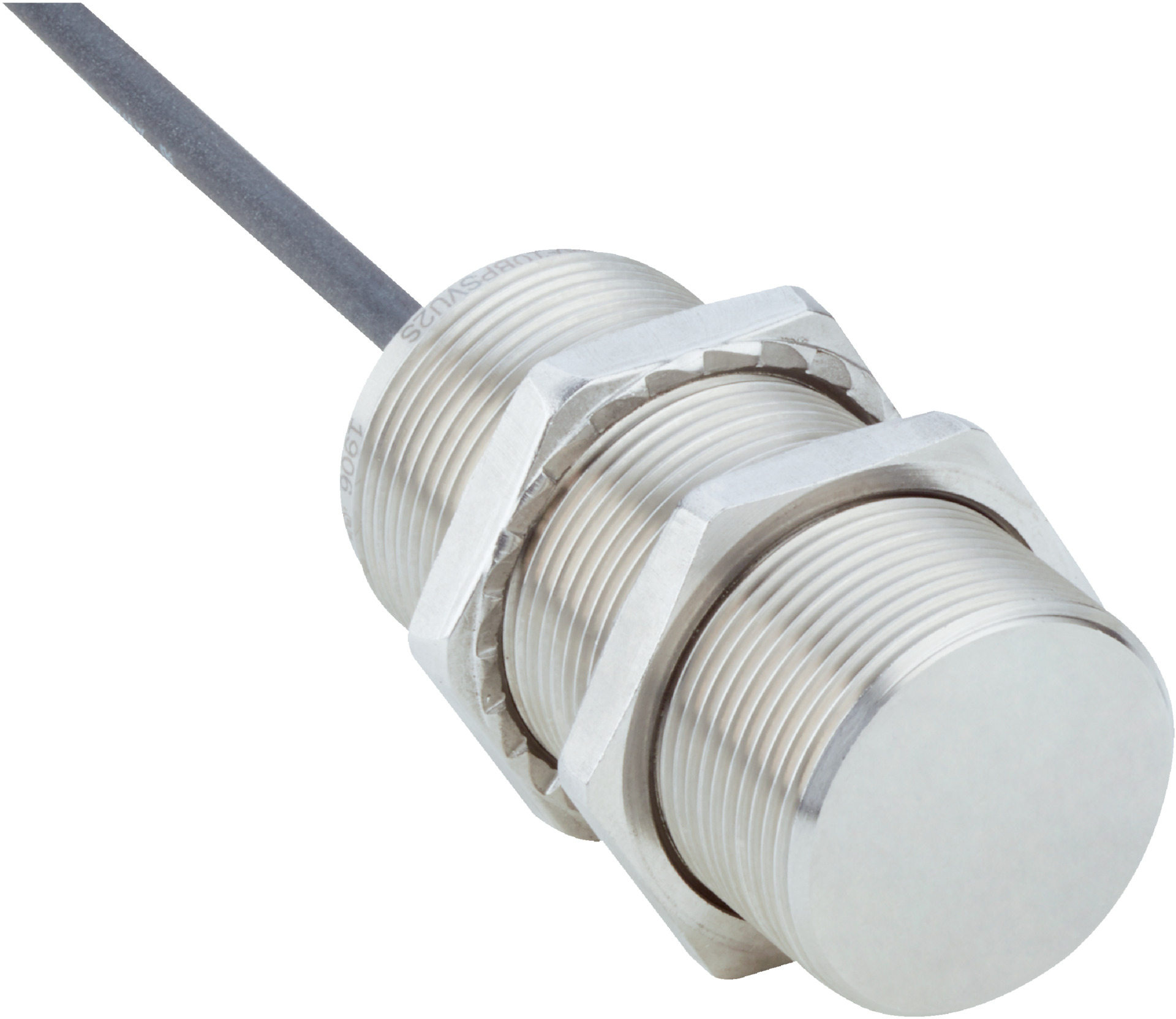

Inductive Proximity Sensor M30 | Stainless Steel | IP68 & IP69K Rated | 10 mm Sensing Range | by SICK
The Inductive Proximity Sensor M30 is designed for reliable detection of metal objects in industrial automation. With a robust stainless steel housing and an impressive IP68/IP69K protection rating, it withstands harsh environments, including those with coolants and lubricants. Ideal for applications requiring high durability and precision, this sensor features a sensing range of 10 mm and is built to last, ensuring minimal maintenance and downtime.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Switching frequency: 50 Hz
- Output type: NPN normally closed
- Electrical wiring: DC 3-wire
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 300 ms
- Hysteresis: 1% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ≤ 10%
- Continuous current: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PUR, diameter 4.5 mm
- Conductor size: 0.34 mm²
- Protection class: III
- Shock resistance: 100 g / 5 ms / 1000 cycles
- Vibration resistance: 10 Hz to 55 Hz, 1 mm; 55 Hz to 500 Hz, 60 g
- Housing length: 60.3 mm
- Thread length: 55.8 mm
- Tightening torque max: ≤ 100 Nm
- Enclosure rating: IP68, IP69K
- Dimensions (H x L x W): 60mm x 60mm x 30mm
- Weight: 0.1 kg
Key Features
- Flush installation with metric M30 x 1.5 thread
- Sensing range of 10 mm with safe sensing range of 8.1 mm
- NPN normally closed switching output
- Cable connection, 3-wire, 2 meters long
- Housing and sensing face made of stainless steel V2A (DIN 1.4305 / AISI 303)
- High protection rating IP68 and IP69K
- Resistant against coolant lubricants
- Short-circuit and power-up pulse protection
- Shock and vibration resistant (100 g / 5 ms / 1000 cycles; 150 g / 1 million cycles)
- Wide ambient operating temperature range from -25 °C to +75 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for detecting metal objects
- Use in zones with coolants and lubricants
- Harsh environments requiring corrosion-resistant sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- High resistance to harsh environments minimizes environmental contamination risks
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IMI30-10BNOVU2S inductive sensor is available for immediate purchase, ideal for industrial automation and harsh environment applications.
