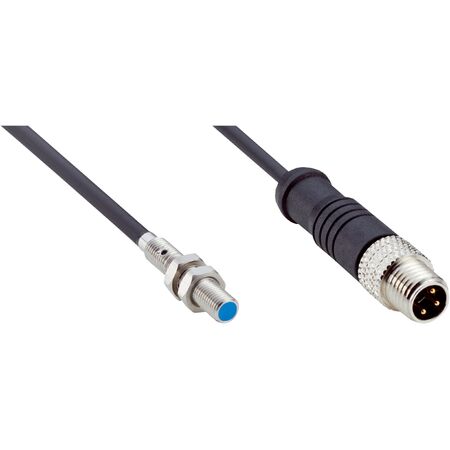

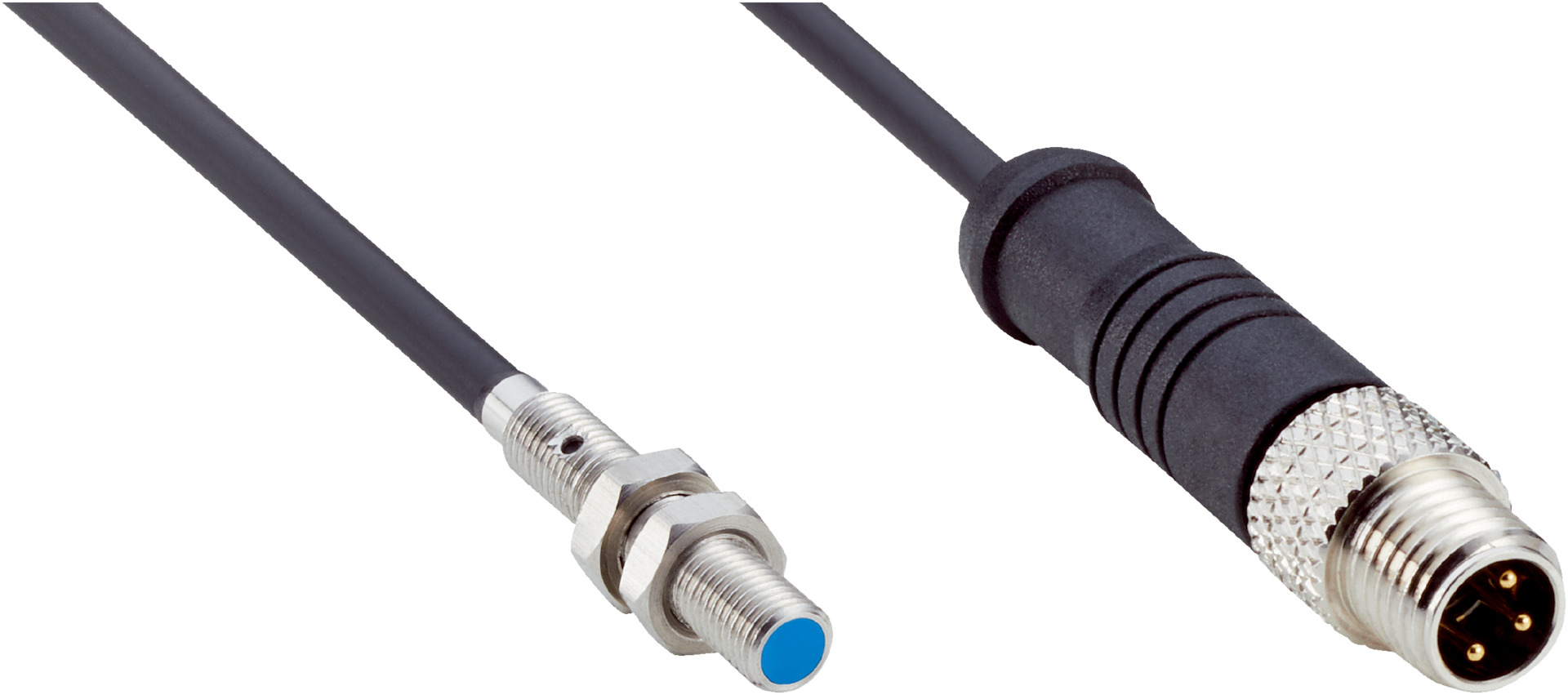

Inductive Proximity Sensor M4 | 1mm Sensing Range | IP67 Rated | High Switching Frequency | by SICK
The Inductive Proximity Sensor M4 is designed for precise object detection with a sensing range of 1 mm and a high switching frequency of 4,200 Hz. Ideal for industrial automation and machine safety applications, this sensor features a robust IP67 rated stainless steel housing, ensuring durability and reliability in harsh environments. With an IO-Link communication interface, it offers seamless integration into modern control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 10 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 2.5%
- Temperature drift of sensing range: ≤ 10%
- Continuous current Ia: ≤ 100 mA
- Cable material: PUR, diameter Ø 2.5 mm
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic, LCP
- Tightening torque max: ≤ 0.8 Nm
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Cycle time: 10.4 ms
- Process data length: 1 Byte
- Switching output: PNP, normally open (NO)
- Enclosure rating: IP67
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- Operating temperature range: -25 °C to +70 °C
- Dimensions (H x L x W): 22mm x 22mm x 4mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M4 x 0.5 thread size
- Sensing range of 1 mm with safe sensing range of 0.81 mm
- Flush installation type
- High switching frequency of 4,200 Hz
- PNP switching output with NO function
- IP67 rated enclosure for dust and water protection
- Visual adjustment indicator and IO-Link communication interface
- Cable with M8 3-pin connector, 0.2 m length
- Short-circuit and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Machine safety and control systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency
- Low power consumption with efficient DC 3-wire electrical wiring
- Robust design minimizes electronic waste through extended service life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK IMM04-01BPSVR8S inductive sensor is available for immediate purchase, ideal for industrial automation and safety applications.
