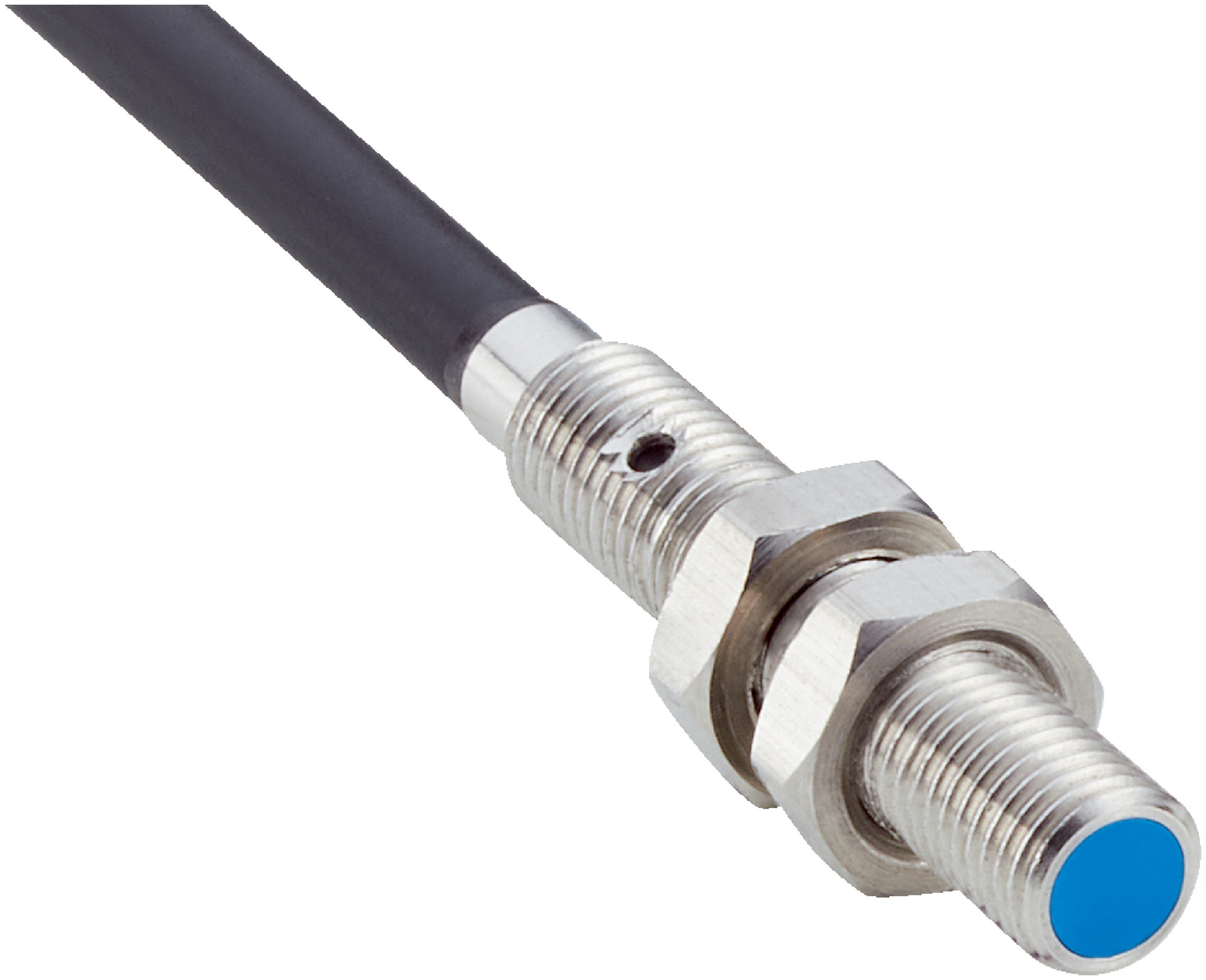

Inductive Proximity Sensor M4 | IO-Link Communication | IP67 Rated | 1.5mm Sensing Range | by SICK
The Inductive Proximity Sensor M4 is designed for precise object detection in industrial automation, featuring a sensing range of 1.5 mm and IP67 rated enclosure for dust and water protection. With high switching frequency and IO-Link communication, it's perfect for machine safety and control systems, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 30 ms
- Hysteresis: 1% to 20%
- Reproducibility: ≤ 2.5%
- Temperature drift of sensing range: ≤ 10%
- EMC compliant with EN 60947-5-2
- Continuous current: ≤ 100 mA
- Cable: PUR, 3-wire, 2 m length, diameter Ø 2.5 mm
- Short-circuit and power-up pulse protection included
- Shock resistance: 30 g, 11 ms; vibration resistance: 10-55 Hz, 1 mm
- Operating temperature range: -10 °C to +60 °C
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic LCP
- Thread length: 20 mm
- Tightening torque max: ≤ 0.8 Nm
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Cycle time: 10.4 ms
- Process data length: 1 Byte
- Dimensions (H x L x W): 22mm x 22mm x 4mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M4 x 0.5 thread size
- Sensing range of 1.5 mm with safe sensing range of 1.215 mm
- Quasi-flush installation type
- High switching frequency of 4,400 Hz
- PNP switching output with NO function
- IP67 rated enclosure for dust and water protection
- Visual adjustment indicator and IO-Link communication
- Triple sensing range capability
- Includes mounting nuts, washers, and cable flag
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and IO-Link configuration to ensure proper operation and safety compliance.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing processes
- Machine safety and control systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency
- Low power consumption with efficient DC 3-wire electrical wiring
- IO-Link interface enables predictive maintenance reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

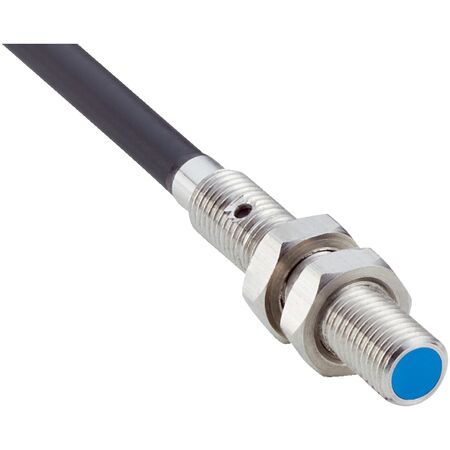

The SICK IMM04-1B5PSVU2S inductive sensor is available for immediate purchase, ideal for industrial automation and machine safety applications.
