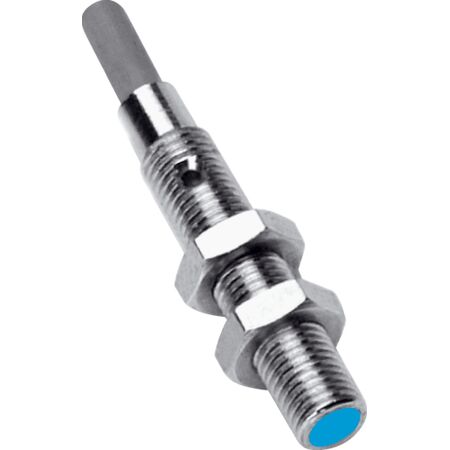

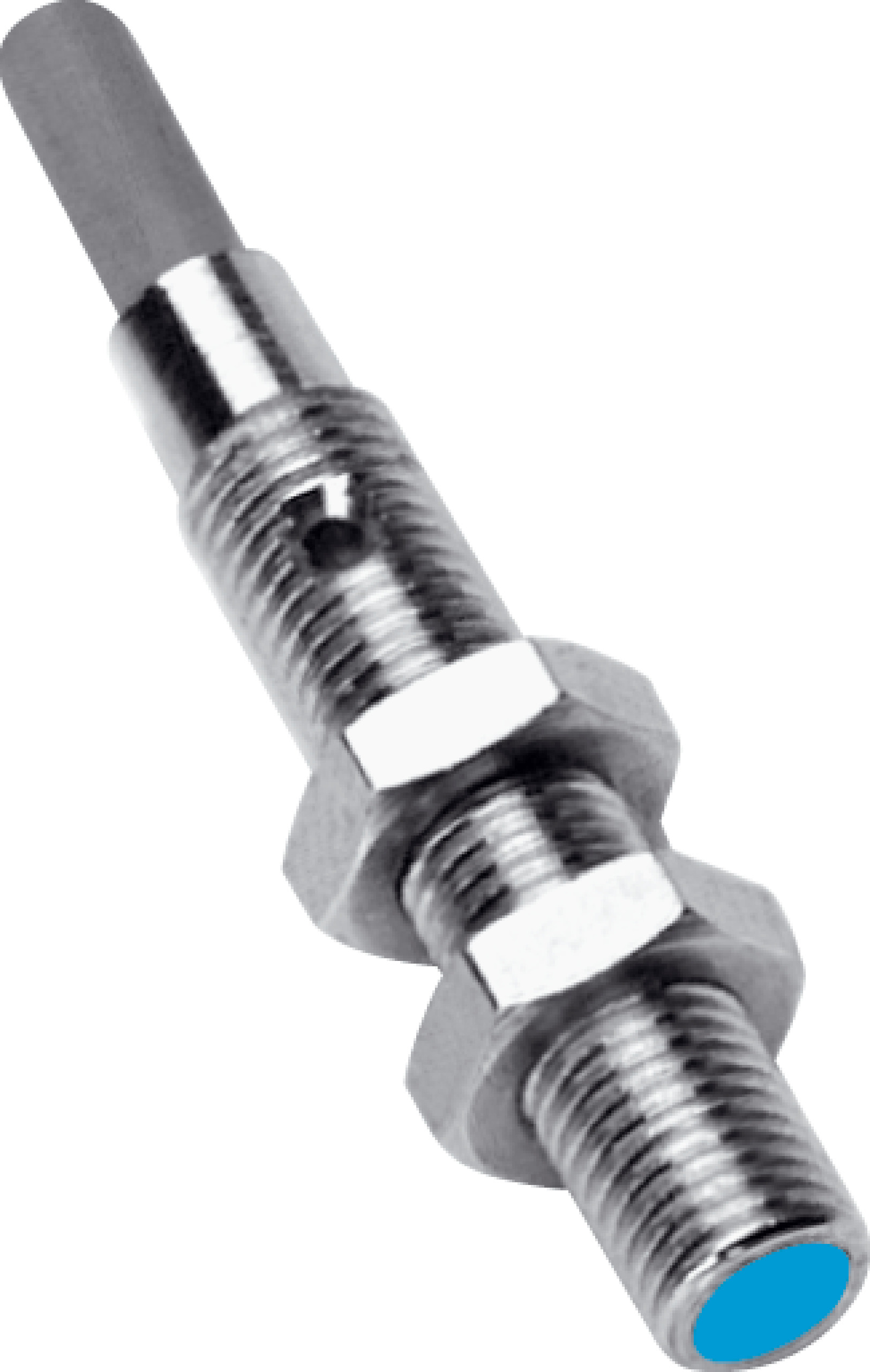

Inductive Proximity Sensor M4 | IP67 Rated | 0.6mm Sensing Range | 5000Hz Switching Frequency | by SICK
The Inductive Proximity Sensor M4 is designed for precise object detection in industrial automation, featuring a 0.6mm sensing range and a high switching frequency of 5,000 Hz. With an IP67 rated enclosure for dust and water protection, this sensor is perfect for metal detection and position sensing in manufacturing lines, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Standard design, stainless steel V2A (DIN 1.4305 / AISI 303)
- Thread size: M4 x 0.5
- Diameter: 4 mm
- Sensing range Sn: 0.6 mm
- Safe sensing range Sa: 0.486 mm
- Installation type: Flush
- Switching frequency: 5,000 Hz
- Connection type: Cable, 3-wire, 2 m PUR cable
- Switching output: PNP, normally open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 10 ms
- Hysteresis: 1% to 10%
- Reproducibility: ≤ 2%
- Temperature drift: ≤ 10%
- Continuous current Ia: ≤ 100 mA
- Cable diameter: 2.6 mm
- Short-circuit protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +70 °C
- Sensing face material: Plastic, POM
- Housing length: 22 mm
- Thread length: 19 mm
- Tightening torque max: ≤ 0.8 Nm
- Dimensions (H x L x W): 22mm x 22mm x 4mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M4 x 0.5 thread size
- Flush installation type
- Sensing range of 0.6 mm with safe sensing range of 0.486 mm
- High switching frequency of 5,000 Hz
- PNP switching output with normally open function
- Cable connection type: 3-wire, 2 m PUR cable
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Operating temperature range from -25 °C to +70 °C
- Housing made of stainless steel V2A (DIN 1.4305 / AISI 303)
- Includes mounting nuts and washers made of V2A stainless steel
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical wiring and sensor mounting to ensure proper flush installation and compliance with safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems requiring precise sensing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Low power consumption with efficient DC 3-wire electrical wiring
- High reliability reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IM04-0B6PS-ZU1 inductive proximity sensor is available for immediate purchase. Ideal for industrial automation and metal detection applications requiring precise and reliable sensing.
