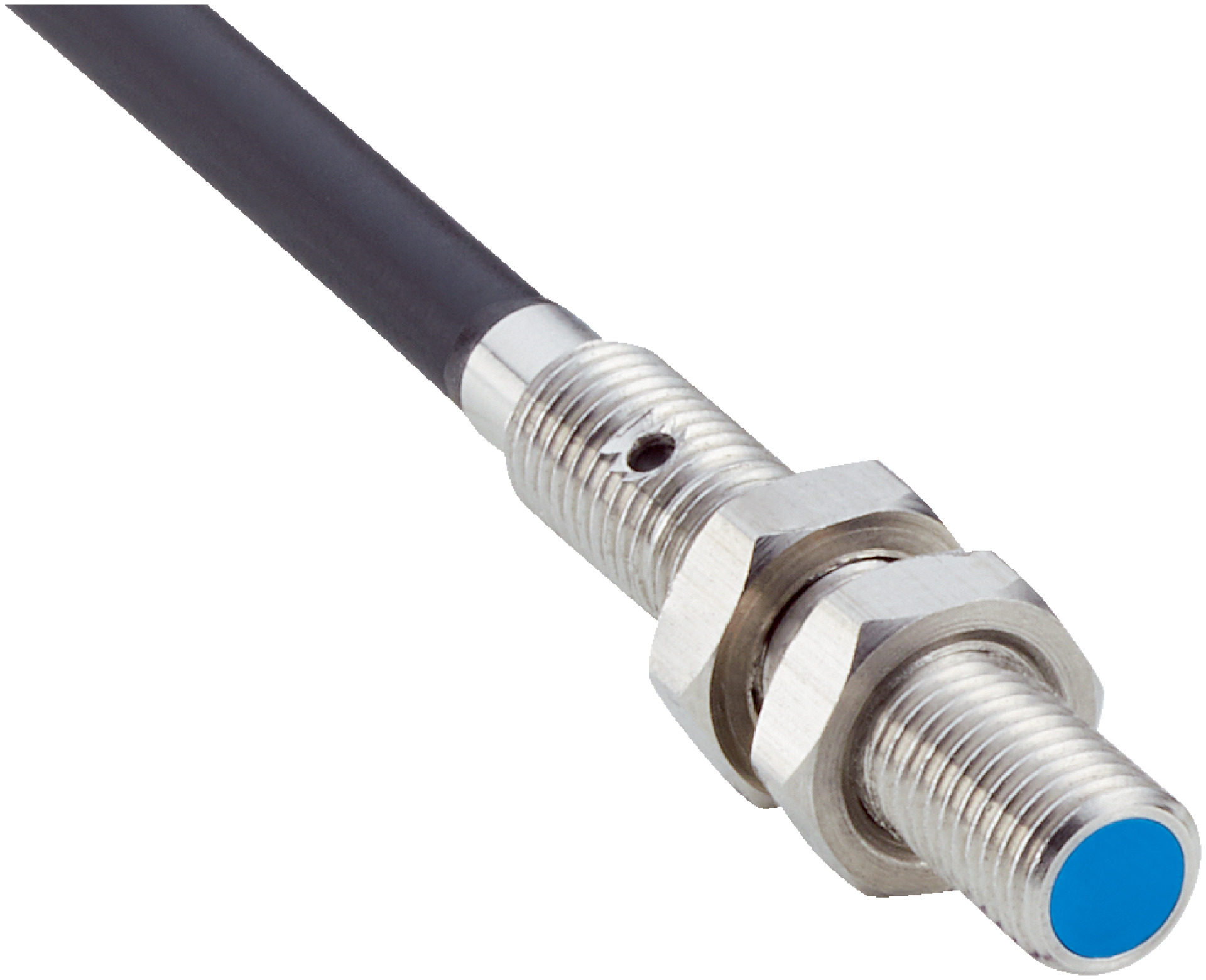

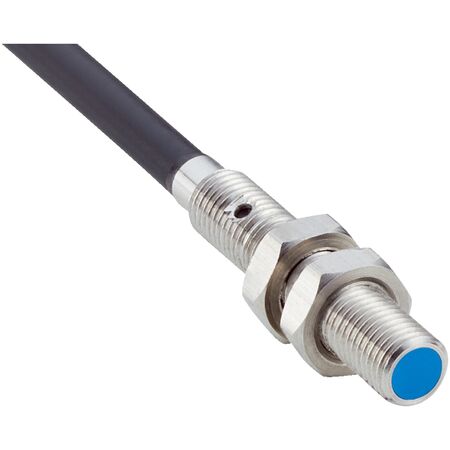

Inductive Proximity Sensor M4 | IP67 Rated | 0.6mm Sensing Range | 5000Hz Switching Frequency | by SICK
The Inductive Proximity Sensor M4 is designed for precise metal detection and position sensing in industrial automation. With a compact flush mount design, it features a 0.6mm sensing range and a high switching frequency of 5,000 Hz, making it ideal for reliable performance in machinery and safety systems. Built with a durable stainless steel housing and IP67 rating, this sensor ensures longevity and protection against dust and water.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Thread size: M4 x 0.5
- Diameter: 4 mm
- Sensing range Sn: 0.6 mm
- Safe sensing range Sa: 0.486 mm
- Switching frequency: 5,000 Hz
- Connection type: Cable, 3-wire, 2 m
- Switching output: PNP, NC function
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 10 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 2.5%
- Temperature drift: ≤ 10%
- EMC standard: EN 60947-5-2
- Continuous current Ia: ≤ 100 mA
- Cable material: PUR
- Cable diameter: 2.5 mm
- Short-circuit and power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Operating temperature: -25 °C to +70 °C
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic, LCP
- Housing length: 22 mm
- Thread length: 20 mm
- Tightening torque max: ≤ 0.8 Nm
- Dimensions (H x L x W): 22mm x 22mm x 4mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M4 x 0.5 thread size
- Flush installation type with 0.6 mm sensing range
- High switching frequency of 5,000 Hz
- PNP switching output with NC output function
- Cable connection, 3-wire, 2 meters length
- IP67 rated enclosure for dust and water protection
- Visual adjustment indicator for easy setup
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Short-circuit and power-up pulse protection included
- Wide operating temperature range from -25 °C to +70 °C
- Housing made of stainless steel V2A (DIN 1.4305 / AISI 303) with plastic sensing face
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical wiring and sensor mounting to ensure proper flush installation and compliance with safety standards.
Applications
- Industrial automation for object detection
- Position sensing in machinery
- Metal detection in manufacturing processes
- Safety and control systems requiring flush installation sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Low power consumption with efficient DC 3-wire electrical wiring
- Robust design minimizes replacement frequency and resource use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IMM04-0B6POVU2S inductive sensor is available for immediate purchase, ideal for industrial automation and metal detection applications requiring compact and reliable sensing solutions.
