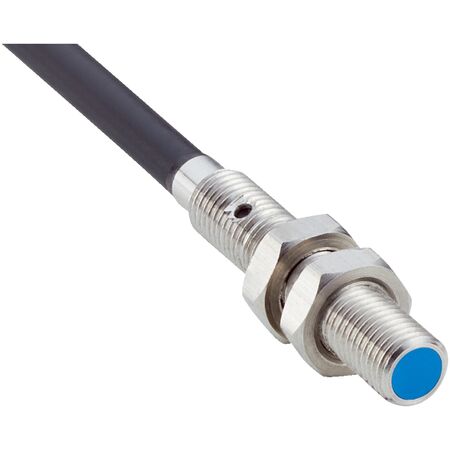

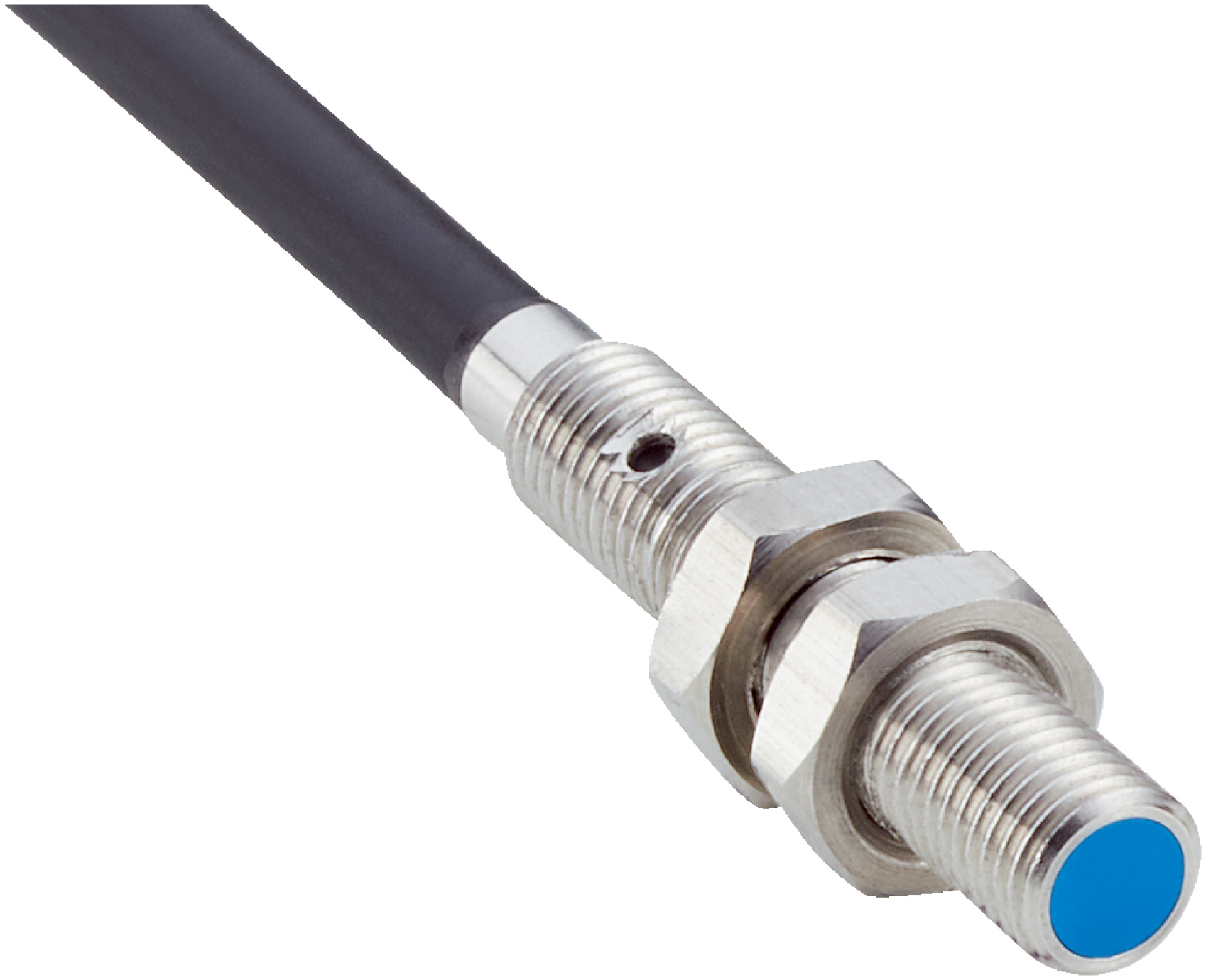

Inductive Proximity Sensor M4 | IP67 Rated | 5,000 Hz Switching Frequency | Stainless Steel Housing | by SICK
The Inductive Proximity Sensor M4 is designed for reliable object detection in industrial automation, featuring a robust IP67 enclosure and a high switching frequency of up to 5,000 Hz. With a sensing range of 0.6 mm and a durable stainless steel housing, this sensor is perfect for position sensing and machine safety applications, ensuring long-lasting performance and minimal maintenance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 10 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 2.5%
- Temperature drift of sensing range: ≤ 10%
- Continuous current: ≤ 100 mA
- Cable material: PUR, diameter Ø 2.5 mm
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic, LCP
- Switching output: PNP, normally open
- Switching frequency: 5,000 Hz
- Enclosure rating: IP67
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Cycle time: 10.4 ms
- Process data length: 1 Byte
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Dimensions (H x L x W): 22mm x 22mm x 4mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M4 x 0.5 thread size
- Sensing range of 0.6 mm with safe sensing range of 0.486 mm
- Flush installation type with IP67 enclosure rating
- Switching frequency up to 5,000 Hz with PNP normally open output
- Visual adjustment indicator and IO-Link communication interface
- Cable connection type, 3-wire, 2 m length
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and IO-Link configuration to ensure proper operation and safety.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing processes
- Machine safety and control systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient operation minimizes power consumption in automation systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IMM04-0B6PSVU2S inductive sensor is available for immediate purchase, ideal for industrial automation and machine safety applications.
