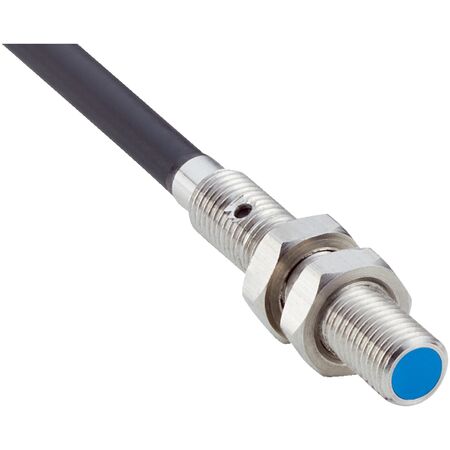

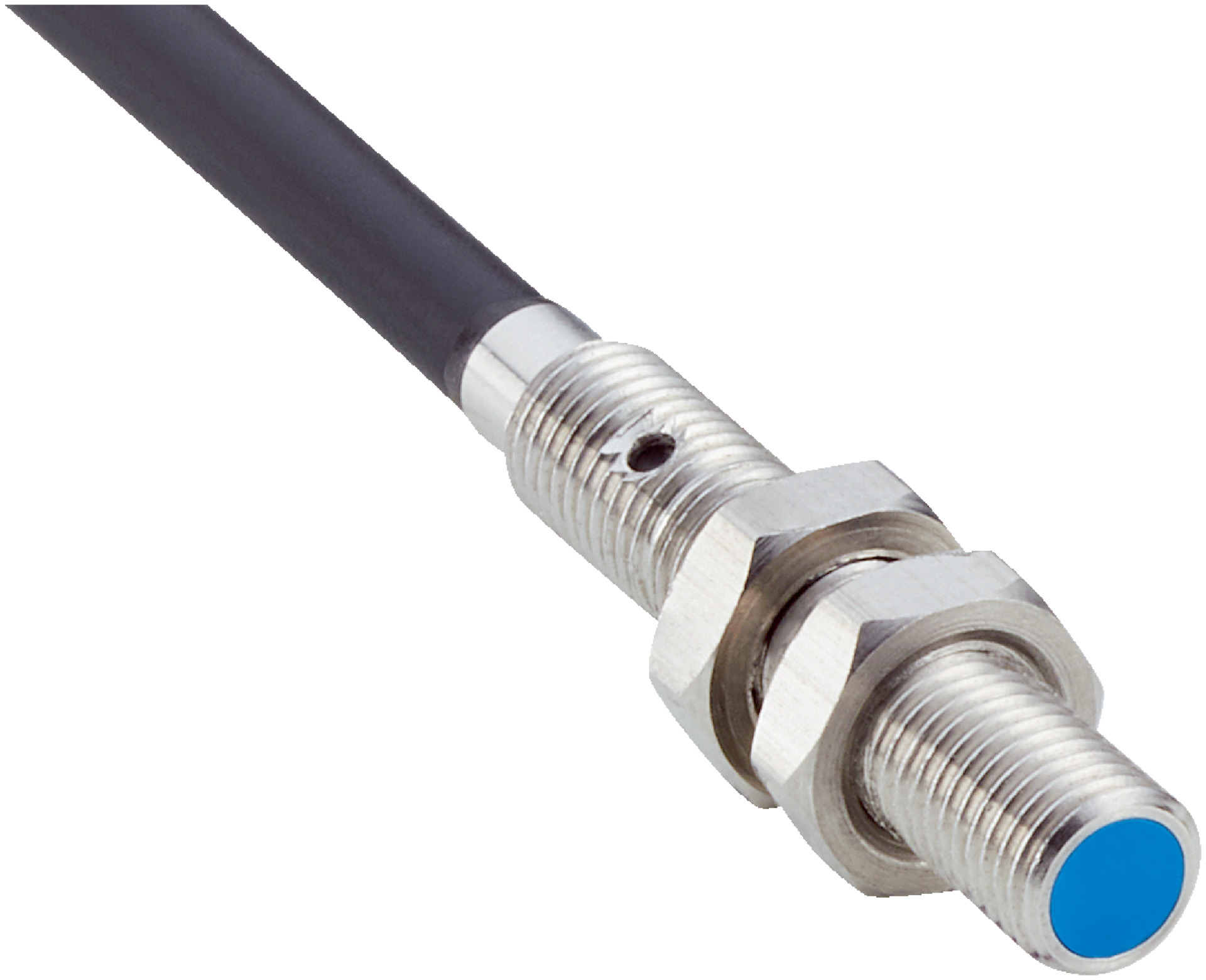

Inductive Proximity Sensor M4 | IP67 Rated | 1.5mm Sensing Range | High Switching Frequency | by SICK
The Inductive Proximity Sensor M4 is designed for reliable object detection in industrial automation, featuring a sensing range of 1.5 mm and a high switching frequency of 4,400 Hz. With an IP67 rated enclosure for dust and water protection, this sensor is perfect for metal detection in manufacturing processes, ensuring durability and efficiency in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 30 ms
- Hysteresis: 1% to 20%
- Reproducibility: ≤ 2.5%
- Temperature drift of sensing range: ≤ 10%
- EMC standard: EN 60947-5-2
- Continuous current Ia: ≤ 100 mA
- Cable material: PUR, diameter Ø 2.5 mm
- Conductor size: 0.08 mm²
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: -10 °C to +60 °C
- Housing material: Stainless steel V2A, DIN 1.4305 / AISI 303
- Sensing face material: Plastic, LCP
- Housing length: 22 mm
- Thread length: 20 mm
- Tightening torque max: ≤ 0.8 Nm
- Dimensions (H x L x W): 22mm x 22mm x 4mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M4 x 0.5 thread size
- Sensing range of 1.5 mm with safe sensing range of 1.215 mm
- Quasi-flush installation type
- High switching frequency of 4,400 Hz
- NPN normally open switching output
- Cable connection type, 3-wire, 2 m length
- IP67 rated enclosure for dust and water protection
- Visual adjustment indicator and triple sensing range
- Includes mounting nuts and washers made of V2A stainless steel
Professional Installation Requirements
- Installation should be performed by qualified personnel following the provided installation guidelines to ensure proper sensor function and safety.
Applications
- Industrial automation for object detection
- Position sensing in machinery
- Metal detection in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Low power consumption with DC 3-wire electrical wiring
- Robust design minimizes environmental impact through long service life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IMM04-1B5NSVU2S inductive sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
