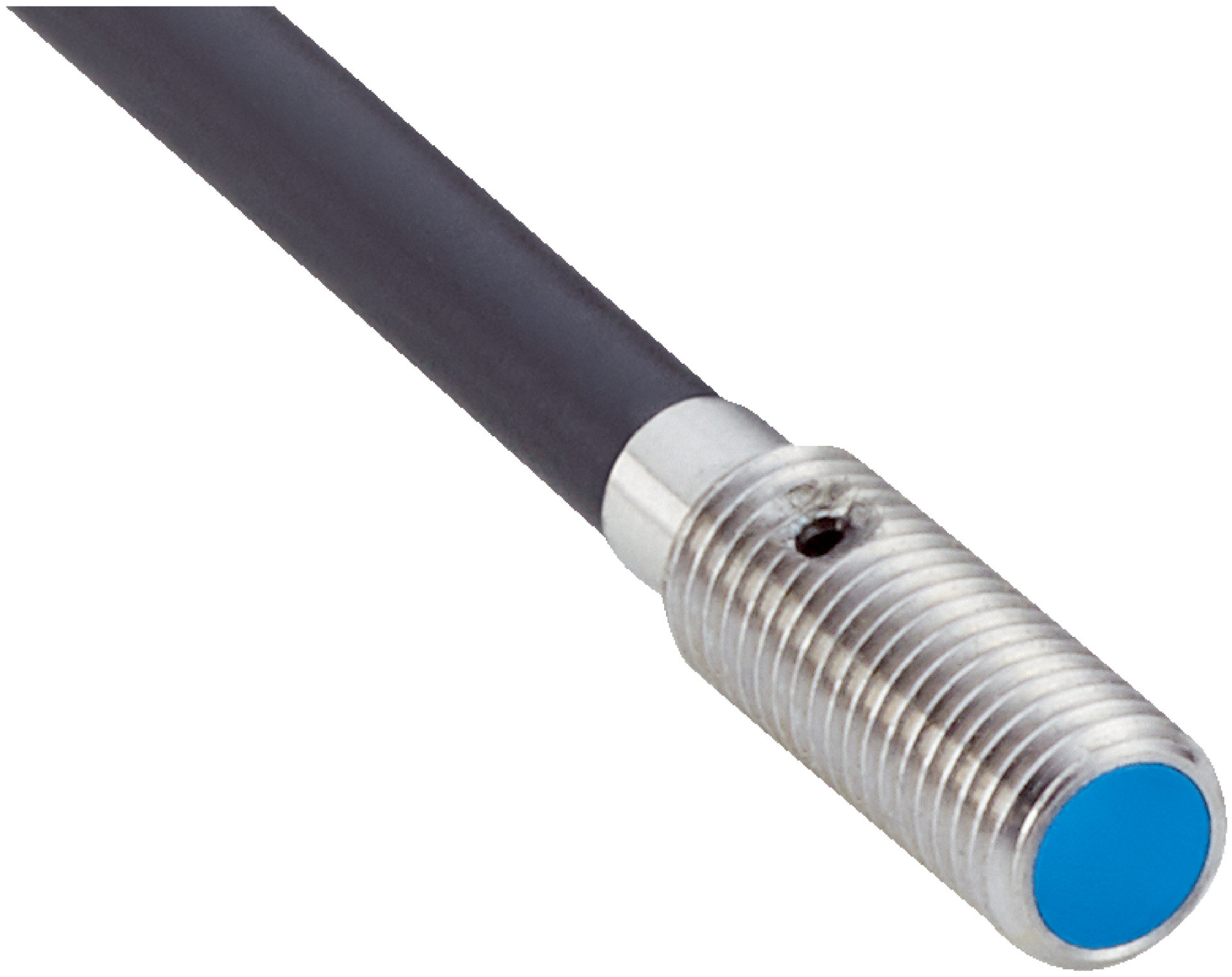

Inductive Proximity Sensor M4 | Short Body | 1.5mm Sensing Range | IP67 Rated | by SICK
The Inductive Proximity Sensor M4 is designed for precise object detection in industrial automation, featuring a short-body stainless steel housing and a sensing range of 1.5 mm. With a high switching frequency of 4,400 Hz and an IP67 rating, this sensor is perfect for metal detection and position sensing in machinery, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Short-body, stainless steel V2A (DIN 1.4305 / AISI 303)
- Thread size: M4 x 0.5
- Diameter: 4 mm
- Sensing range Sn: 1.5 mm
- Safe sensing range Sa: 1.215 mm
- Installation type: Quasi-flush
- Switching frequency: 4,400 Hz
- Connection type: Cable, 3-wire, 2 m PUR
- Switching output: NPN, normally open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 30 ms
- Hysteresis: 1% to 20%
- Reproducibility: ≤ 2.5%
- Temperature drift of sensing range: ≤ 10%
- EMC: EN 60947-5-2
- Continuous current Ia: ≤ 100 mA
- Cable diameter: 2.5 mm
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: -10°C to +60°C
- Housing length: 12 mm
- Thread length: 10 mm
- Tightening torque max: ≤ 0.8 Nm
- Dimensions (H x L x W): 12mm x 22mm x 4mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M4 x 0.5 thread size
- Sensing range of 1.5 mm with quasi-flush installation
- High switching frequency of 4,400 Hz
- NPN normally open switching output
- IP67 rated enclosure for dust and water protection
- Visual adjustment indicator and triple sensing range
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Cable connection with 3-wire, 2 m PUR cable
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in machinery
- Metal detection in manufacturing processes
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Low power consumption with DC 3-wire electrical wiring
- IP67 rating ensures protection against environmental contaminants
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now

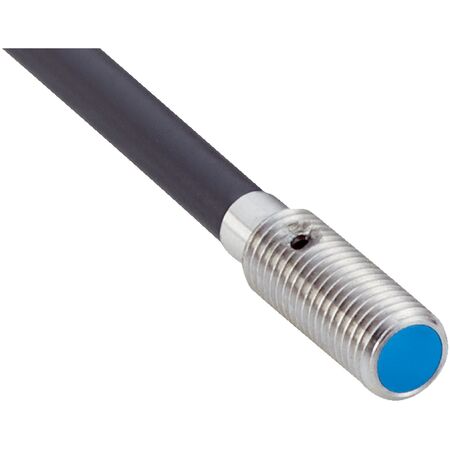

The SICK IMM04-1B5NSVU2K inductive sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
