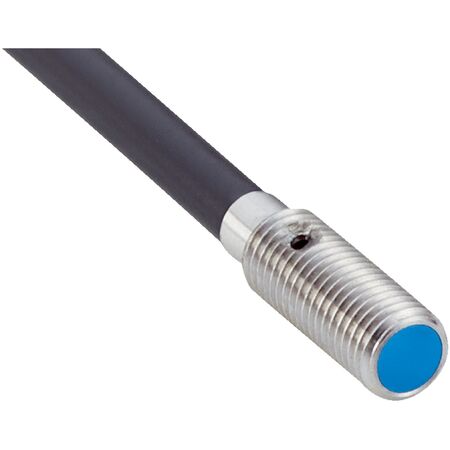

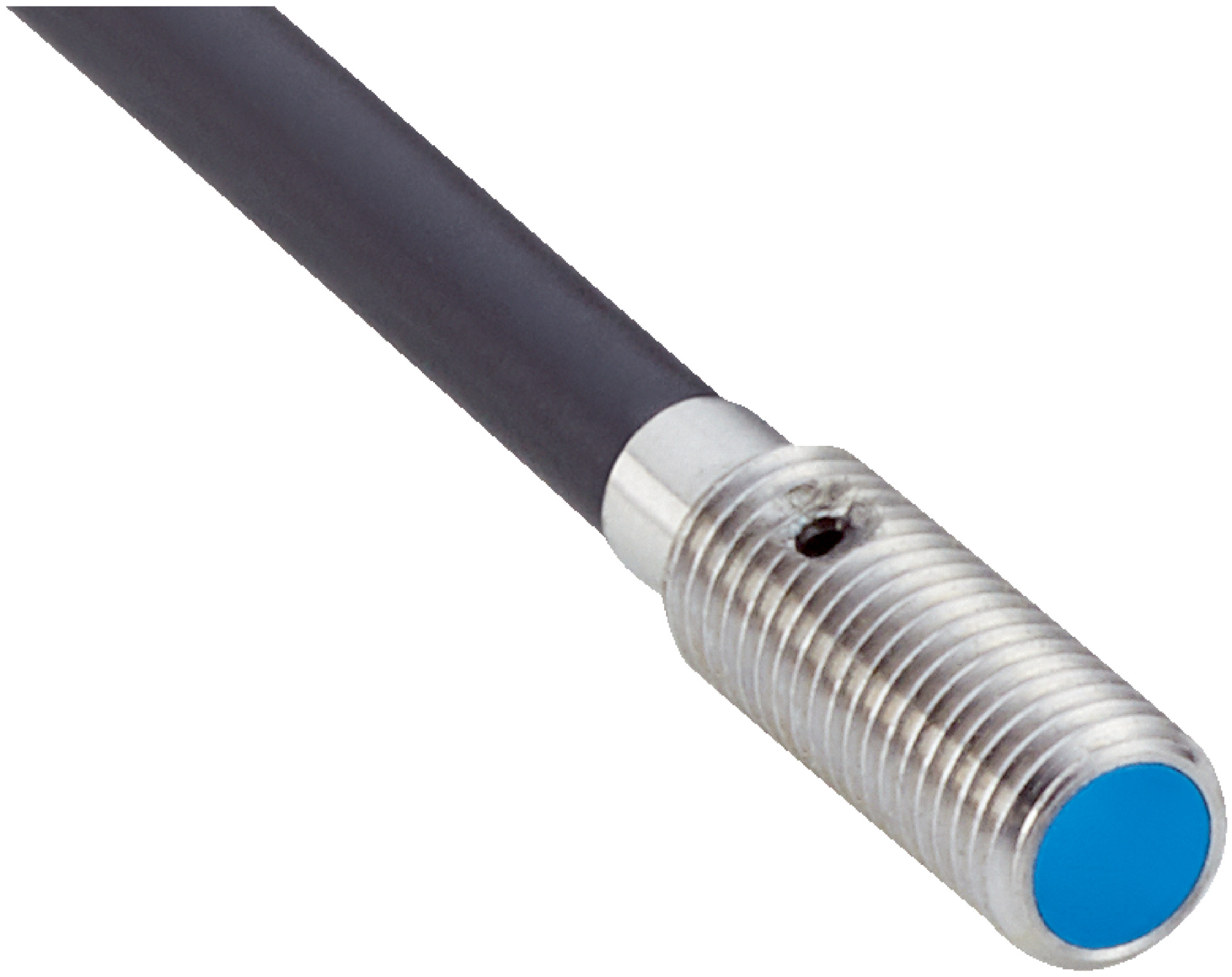

Inductive Proximity Sensor M4 | Short Body | IP67 Rated | 4,200 Hz Switching Frequency | by SICK
The Inductive Proximity Sensor M4 is designed for precise object detection in industrial automation, featuring a short-body stainless steel housing and a sensing range of 1 mm. With an impressive switching frequency of 4,200 Hz and an IP67 rating for dust and water protection, this sensor is perfect for integration in automated production lines and metal detection applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Short-body, stainless steel V2A (DIN 1.4305 / AISI 303)
- Thread size: M4 x 0.5
- Diameter: 4 mm
- Sensing range Sn: 1 mm
- Safe sensing range Sa: 0.81 mm
- Installation type: Flush
- Switching frequency: 4,200 Hz
- Connection type: Cable, 3-wire, 2 m
- Switching output: PNP, normally open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Visual adjustment indicator included
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 10 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 2.5%
- Temperature drift of sensing range: ≤ 10%
- EMC compliant with EN 60947-5-2
- Continuous current Ia: ≤ 100 mA
- Cable material: PUR, diameter 2.5 mm
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: -25°C to +70°C
- Sensing face material: Plastic, LCP
- Housing length: 12 mm
- Thread length: 10 mm
- Tightening torque max: ≤ 0.8 Nm
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Cycle time: 10.4 ms
- Process data length: 1 Byte
- Process data structure: Bit 0 = Sr reached, Bit 1 = Sa reached
- Dimensions (H x L x W): 12mm x 22mm x 4mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M4 x 0.5 thread size
- Sensing range of 1 mm with safe sensing range of 0.81 mm
- Flush installation type
- High switching frequency of 4,200 Hz
- PNP switching output with normally open function
- IP67 rated enclosure for dust and water protection
- Visual adjustment indicator and IO-Link communication interface
- Robust stainless steel V2A housing and plastic sensing face
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Cable connection, 3-wire, 2 m length
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with inductive sensors and IO-Link communication to ensure proper mounting, wiring, and configuration.
Applications
- Industrial automation for object detection
- Position sensing in machinery
- Metal detection in manufacturing processes
- Integration in automated production lines
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Low power consumption with efficient DC 3-wire electrical wiring
- IO-Link interface enables predictive maintenance reducing downtime and resource use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IMM04-01BPSVU2K inductive sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
