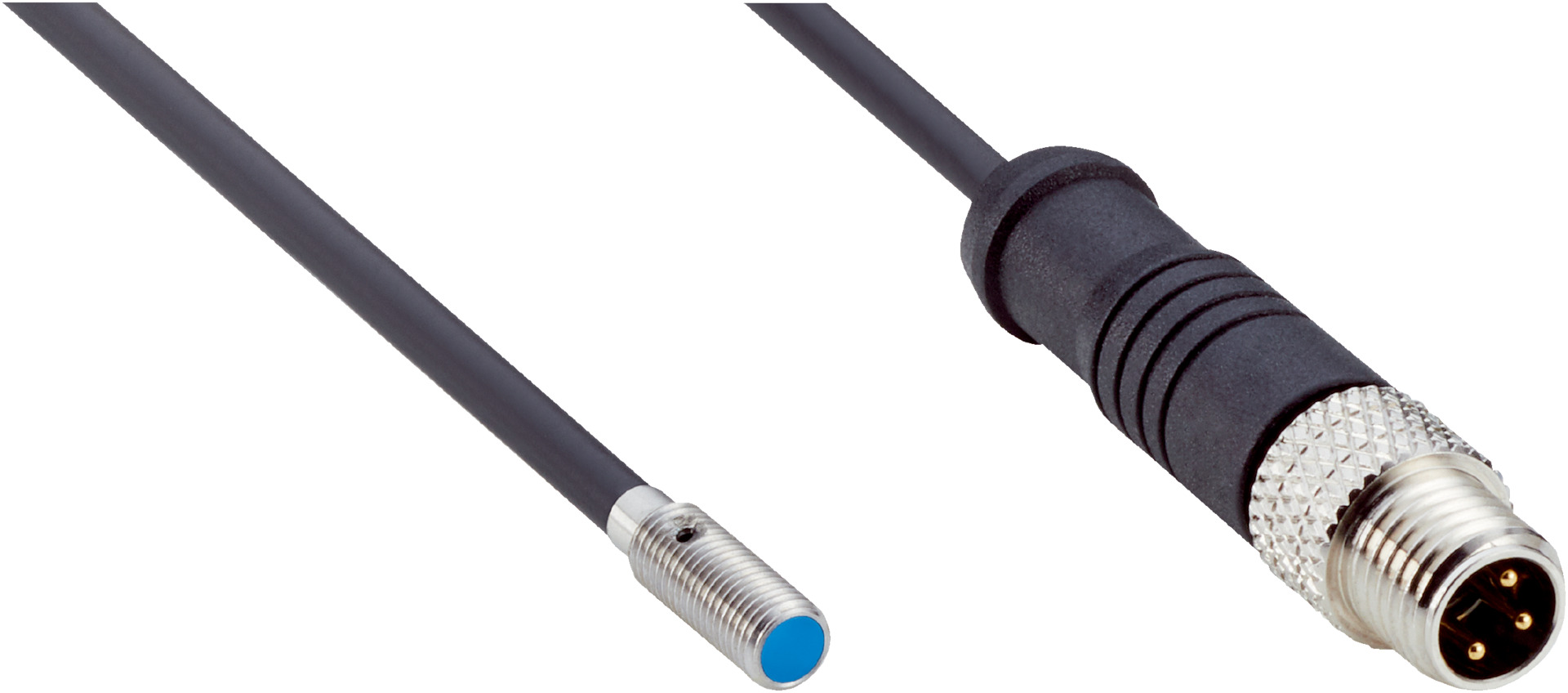

Inductive Proximity Sensor M4 | Short Body | NPN Output | IP67 Rated | by SICK
The Inductive Proximity Sensor M4 is designed for precise object detection in industrial automation, featuring a short-body stainless steel housing and a sensing range of 1 mm. With a high switching frequency of 4,200 Hz and an IP67 rating for dust and water protection, this sensor is perfect for safety and control systems, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Short-body stainless steel V2A (DIN 1.4305 / AISI 303)
- Thread size: M4 x 0.5
- Diameter: 4 mm
- Sensing range Sn: 1 mm
- Safe sensing range Sa: 0.81 mm
- Installation type: Flush
- Switching frequency: 4,200 Hz
- Connection type: Cable with M8, 3-pin connector, 0.2 m
- Switching output: NPN, Normally Open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 10 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 2.5%
- Temperature drift of Sr: ≤ 10%
- EMC: EN 60947-5-2
- Continuous current Ia: ≤ 100 mA
- Cable material: PUR
- Cable diameter: 2.5 mm
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +70 °C
- Sensing face material: Plastic, LCP
- Housing length: 12 mm
- Thread length: 10 mm
- Tightening torque max: ≤ 0.8 Nm
- Dimensions (H x L x W): 12mm x 12mm x 4mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M4 x 0.5 thread size
- Sensing range of 1 mm with safe sensing range of 0.81 mm
- Flush installation type
- High switching frequency of 4,200 Hz
- NPN normally open switching output
- Cable with M8 3-pin connector, 0.2 m length
- IP67 rated enclosure for dust and water protection
- Visual adjustment indicator for easy setup
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide operating temperature range from -25 °C to +70 °C
- Housing made of stainless steel V2A (DIN 1.4305 / AISI 303)
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper mounting, wiring, and compliance with safety standards.
Applications
- Industrial automation for object detection
- Position sensing in machinery
- Safety and control systems requiring precise proximity sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Low power consumption with DC 3-wire electrical wiring
- Robust design minimizes replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now

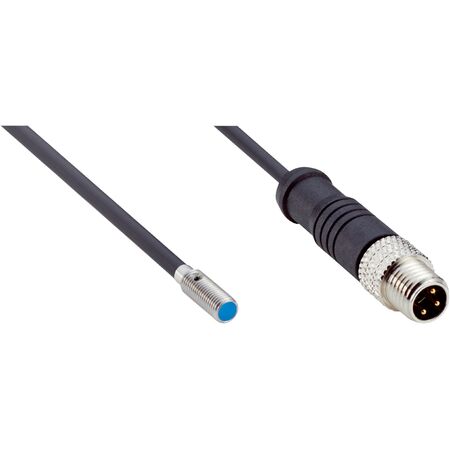

The SICK IMM04-01BNSVR8K inductive sensor is available for immediate purchase, ideal for industrial automation and safety applications requiring precise proximity detection.
