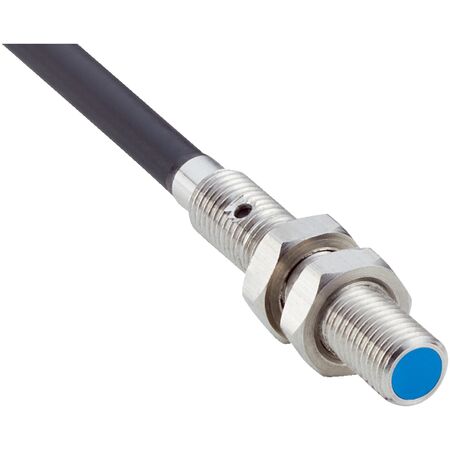

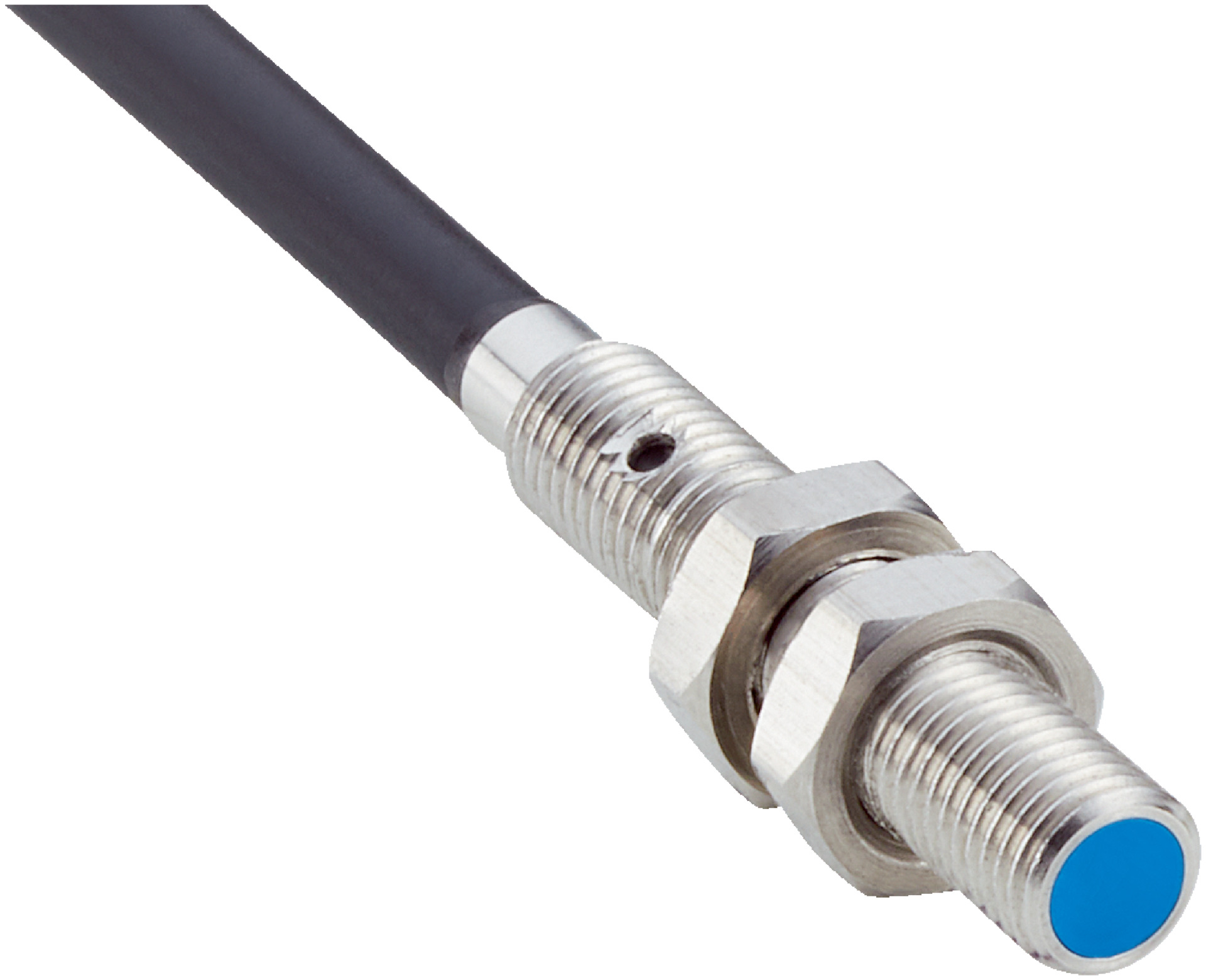

Inductive Proximity Sensor M4 | Stainless Steel Housing | IP67 Rated | 0.6mm Sensing Range | by SICK
The Inductive Proximity Sensor M4 is designed for precision in industrial automation, featuring a robust stainless steel housing and an IP67 rating for durability. With a sensing range of 0.6 mm and a high switching frequency of 5,000 Hz, it's perfect for object detection and position sensing in machinery. Ideal for metal detection applications, this sensor ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Standard design, stainless steel V2A (DIN 1.4305 / AISI 303)
- Thread size: M4 x 0.5
- Diameter: 4 mm
- Sensing range Sn: 0.6 mm
- Safe sensing range Sa: 0.486 mm
- Installation type: Flush
- Switching frequency: 5,000 Hz
- Connection type: Cable, 3-wire, 2 m PUR cable
- Switching output: NPN, normally closed (NC)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 10 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 2.5%
- Temperature drift: ≤ 10%
- Continuous current Ia: ≤ 100 mA
- Cable diameter: 2.5 mm
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: -25°C to +70°C
- Housing length: 22 mm
- Thread length: 20 mm
- Tightening torque max: ≤ 0.8 Nm
- Short-circuit and power-up pulse protection included
- Visual adjustment indicator
- Dimensions (H x L x W): 22mm x 22mm x 4mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M4 x 0.5 thread size
- Sensing range of 0.6 mm with safe sensing range of 0.486 mm
- Flush installation type with IP67 enclosure rating
- Switching frequency up to 5,000 Hz with NPN normally closed output
- Visual adjustment indicator for easy setup
- Cable connection type: 3-wire, 2 m PUR cable
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation for object detection
- Position sensing in machinery
- Metal detection in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient operation with low power consumption
- Long service life minimizes environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IMM04-0B6NOVU2S inductive sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
