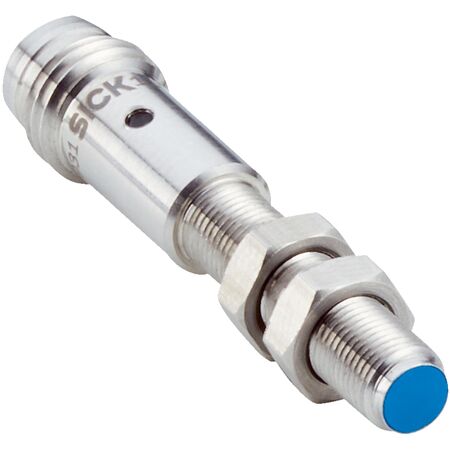

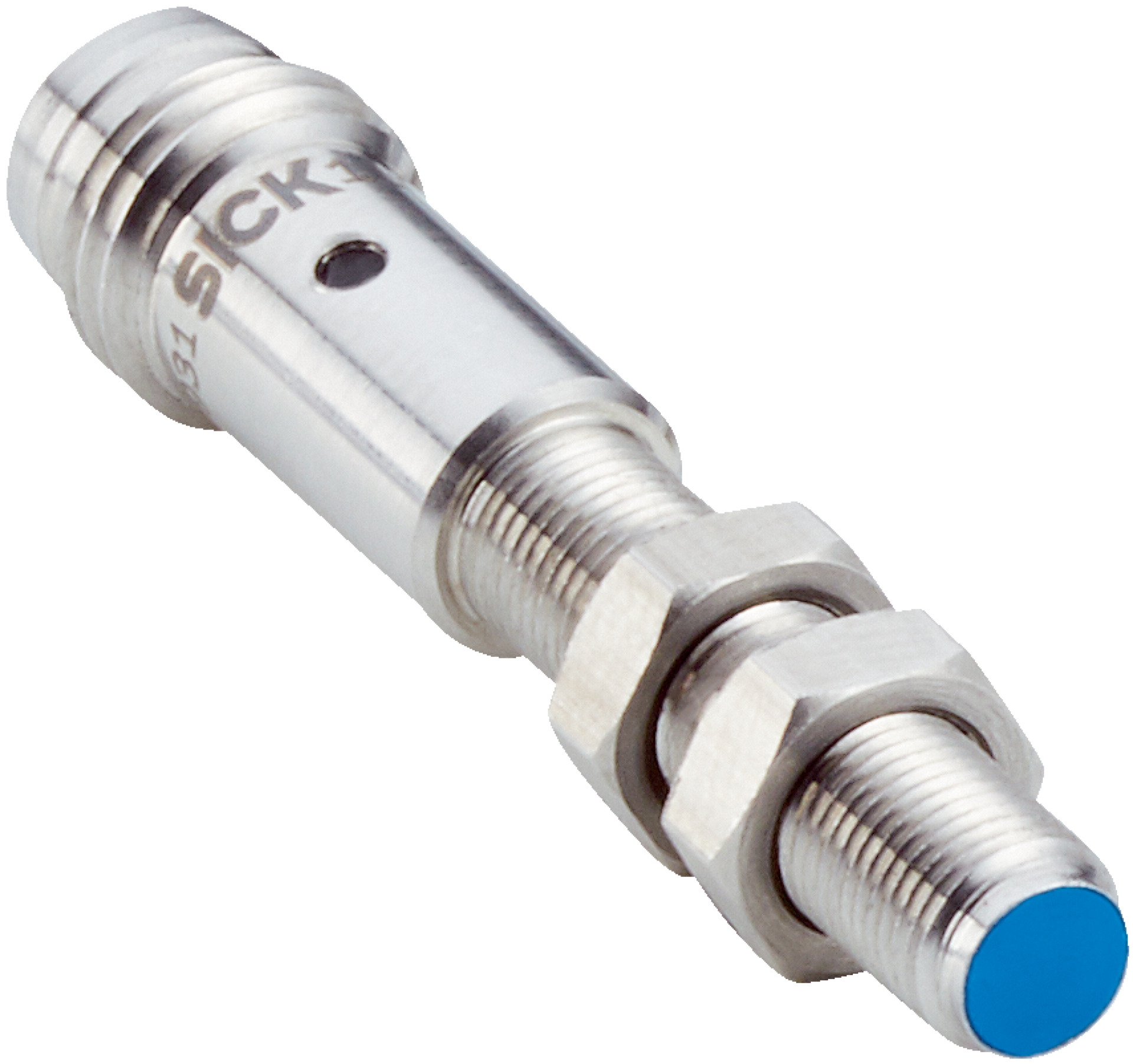

Inductive Proximity Sensor M5 | 1.5mm Sensing Range | IP67 Rated | NPN Output | by SICK
The Inductive Proximity Sensor M5 is designed for precise object detection with a sensing range of 1.5 mm and a robust IP67 enclosure. Ideal for industrial automation and metal detection, this sensor features a stainless steel housing and operates effectively in temperatures from -25 °C to +70 °C. With a high switching frequency of 4,800 Hz and short-circuit protection, it ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Thread size: M5 x 0.5
- Diameter: 5 mm
- Sensing range Sn: 1.5 mm
- Safe sensing range Sa: 1.215 mm
- Installation type: Flush
- Switching frequency: 4,800 Hz
- Connection type: Connector M8, 3-pin
- Switching output: NPN, Normally Open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 10 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 2.5%
- Temperature drift: ≤ 10%
- EMC: EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +70 °C
- Housing material: Stainless steel V2A, DIN 1.4305 / AISI 303
- Sensing face material: Plastic, LCP
- Housing length: 38 mm
- Thread length: 20 mm
- Tightening torque max: ≤ 1.5 Nm
- Dimensions (H x L x W): 38mm x 38mm x 5mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M5 x 0.5 thread size
- Sensing range of 1.5 mm with safe sensing range of 1.215 mm
- Flush installation type with IP67 enclosure rating
- Switching frequency up to 4,800 Hz with NPN normally open output
- Visual adjustment indicator for easy setup
- Robust stainless steel V2A housing and plastic LCP sensing face
- Short-circuit and power-up pulse protection included
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide operating temperature range from -25 °C to +70 °C
- Supplied with mounting nuts and washers in stainless steel
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and mounting to ensure proper function and safety.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems in factories
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Low power consumption design supports energy efficiency
- Robust protection against environmental factors reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IMM05-1B5NSVT0S inductive sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
