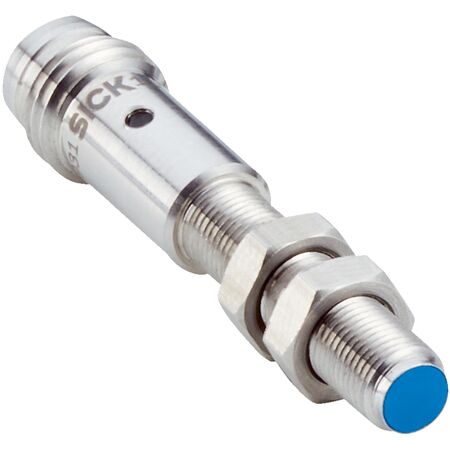

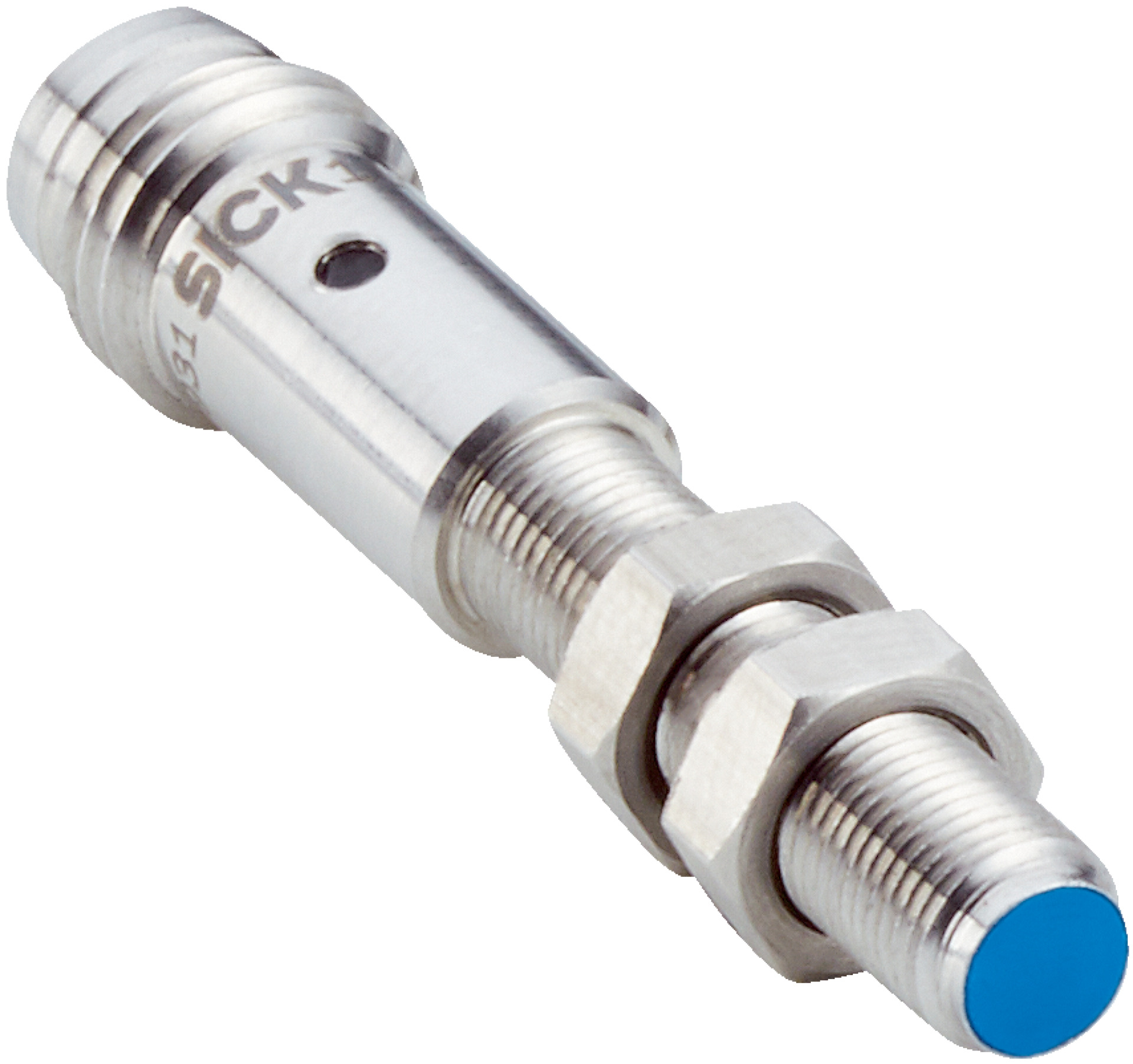

Inductive Proximity Sensor M5 | 2.5mm Sensing Range | IP67 Rated | High Switching Frequency | by SICK
The Inductive Proximity Sensor M5 is designed for precise object detection in industrial automation, featuring a 2.5mm sensing range and an IP67 rated enclosure for dust and water protection. With a high switching frequency of 4,000 Hz and robust stainless steel housing, it's perfect for machine safety and control systems, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 30 ms
- Hysteresis: 1% to 20%
- Reproducibility: ≤ 2.5%
- Temperature drift of sensing range: ≤ 10%
- Continuous current Ia: ≤ 100 mA
- Short-circuit and power-up pulse protection included
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 to 55 Hz, 1 mm amplitude
- Operating temperature range: -10 °C to +60 °C
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic LCP
- Connection type: Connector M8, 3-pin
- Switching output: NPN normally open
- Enclosure rating: IP67
- Dimensions (H x L x W): 5mm x 38mm x 5mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M5 x 0.5 thread size
- Sensing range of 2.5 mm with safe sensing range of 2.025 mm
- Quasi-flush installation type
- High switching frequency of 4,000 Hz
- NPN normally open switching output with DC 3-wire electrical wiring
- IP67 rated enclosure for dust and water protection
- Visual adjustment indicator and triple sensing range
- Includes mounting nuts and washers made of V2A stainless steel
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Machine safety and control systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Low power consumption with DC 3-wire wiring
- Long service life with high shock and vibration resistance
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK IMM05-2B5NSVT0S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and machine safety applications.
