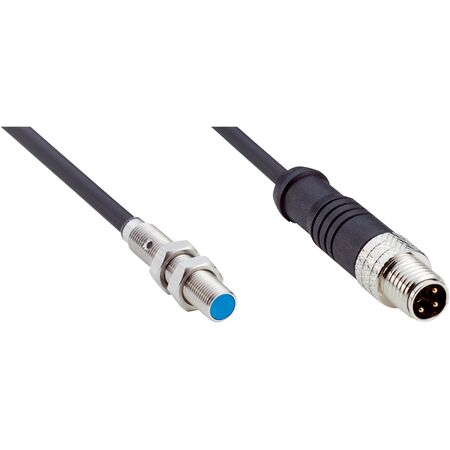

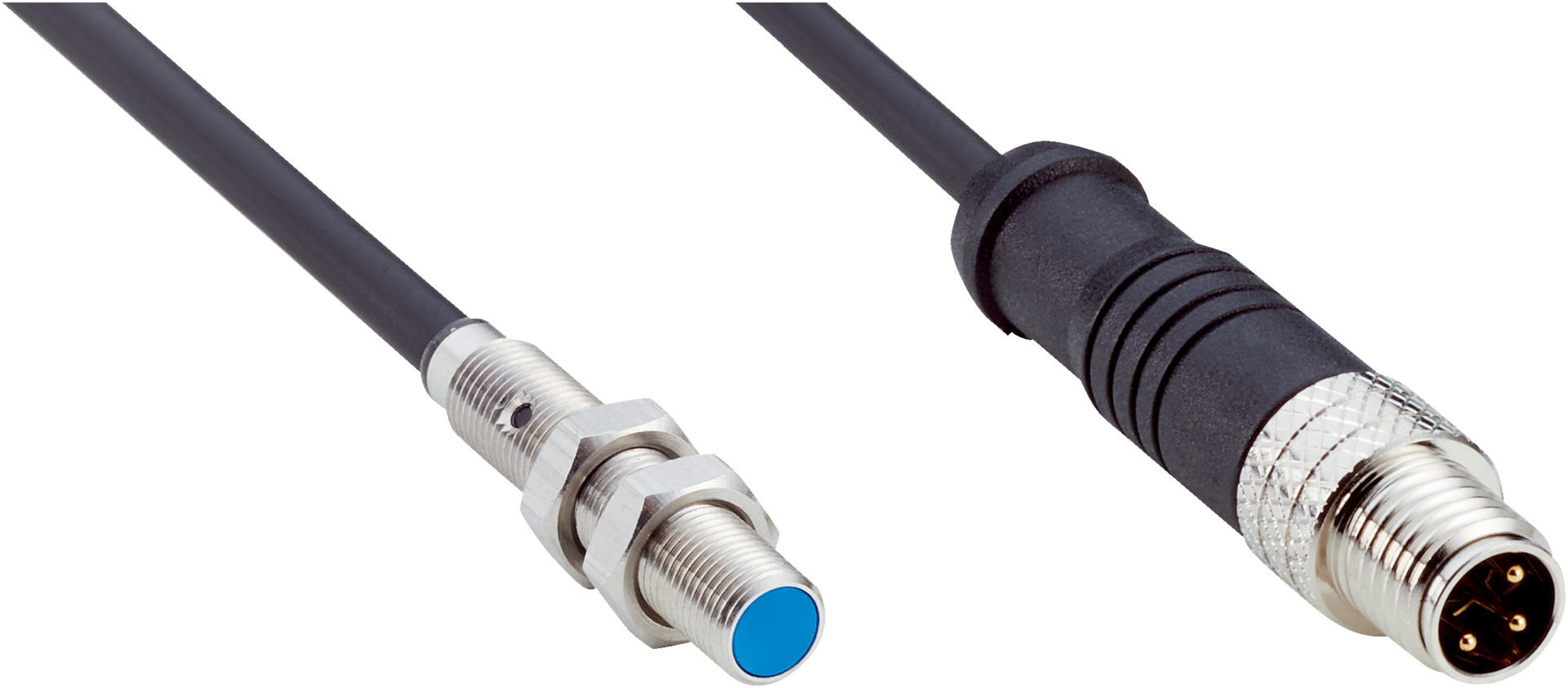

Inductive Proximity Sensor M5 | IP67 Rated | 0.8mm Sensing Range | 5000 Hz Switching Frequency | by SICK
The Inductive Proximity Sensor M5 is designed for precise object detection in industrial automation, featuring a sensing range of 0.8 mm and an IP67 rated enclosure for durability. With a high switching frequency of 5,000 Hz and a robust stainless steel housing, this sensor is perfect for applications in machinery position sensing and metal detection, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 10 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 2.5%
- Temperature drift of sensing range: ≤ 10%
- Continuous current Ia: ≤ 200 mA
- Cable: PUR, diameter 2.9 mm, length 0.2 m with M8 3-pin connector
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic LCP
- Thread length: 23 mm
- Tightening torque max: ≤ 1.5 Nm
- EMC compliant with EN 60947-5-2
- Operating temperature: -25 °C to +70 °C
- Switching output: NPN normally open
- Switching frequency: 5,000 Hz
- Enclosure rating: IP67
- Dimensions (H x L x W): 25mm x 25mm x 5mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M5 x 0.5 thread size
- Sensing range of 0.8 mm with safe sensing range of 0.648 mm
- Flush installation type with IP67 rated enclosure
- Switching frequency up to 5,000 Hz
- NPN normally open switching output with DC 3-wire electrical wiring
- Visual adjustment indicator for easy setup
- Includes mounting nuts, washers, and cable flag
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Short-circuit and power-up pulse protection
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensor wiring and industrial safety standards.
Applications
- Industrial automation for object detection
- Position sensing in machinery
- Metal detection in manufacturing processes
- Safety and control systems requiring precise sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Low power consumption enhances energy efficiency in industrial systems
- Robust design minimizes downtime and resource use for maintenance
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IMM05-0B8NSVR8S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
