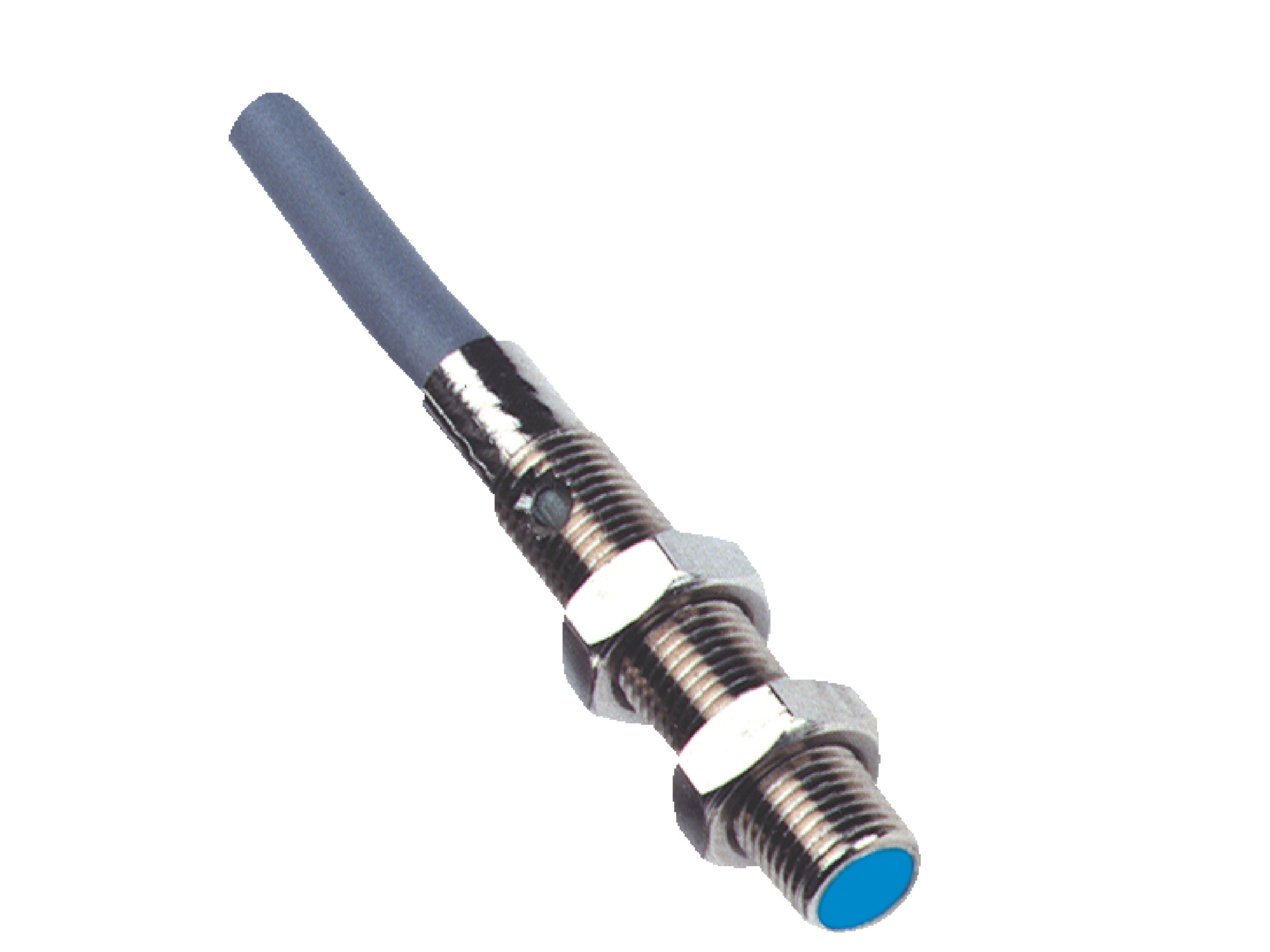

Inductive Proximity Sensor M5 | IP67 Rated | 1.5mm Sensing Range | 3000Hz Switching Frequency | by SICK
The Inductive Proximity Sensor M5 is designed for reliable object detection in industrial automation, featuring a sensing range of 1.5 mm and a high switching frequency of 3000 Hz. With an IP67 rated enclosure, it ensures protection against dust and water, making it ideal for machine safety and control systems. Built with durable stainless steel housing, this sensor is perfect for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 10 ms
- Hysteresis: 1% to 10%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ≤ 10%
- EMC compliance: EN 60947-5-2, IEC 61000-4-2 (Test level 2), IEC 61000-4-4 (Test level 3)
- Cable material: PUR, diameter 3.5 mm, conductor size 0.14 mm²
- Short-circuit protection included
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Operating temperature range: -25 °C to +70 °C
- Housing material: Stainless steel V2A, DIN 1.4305 / AISI 303
- Sensing face material: Plastic, POM
- Housing length: 25 mm
- Thread length: 20 mm
- Maximum tightening torque: ≤ 1.8 Nm
- Dimensions (H x L x W): 5mm x 25mm x 5mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M5 x 0.5 thread size
- Sensing range of 1.5 mm with safe sensing range of 1.215 mm
- Flush installation type
- High switching frequency of 3,000 Hz
- PNP switching output with normally open function
- Cable connection type, 3-wire, 2 meters length
- IP67 rated enclosure for dust and water protection
- Mounting accessories included: stainless steel nuts and washers
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Machine safety and control systems
- Position sensing in manufacturing processes
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Low power consumption enhances energy efficiency in automation systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now

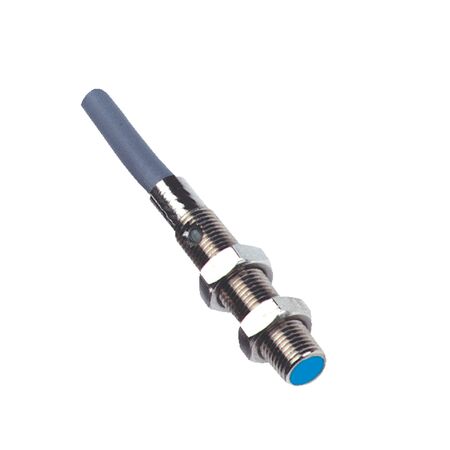

The SICK IM05-1B5PSVU2S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and machine safety applications.
