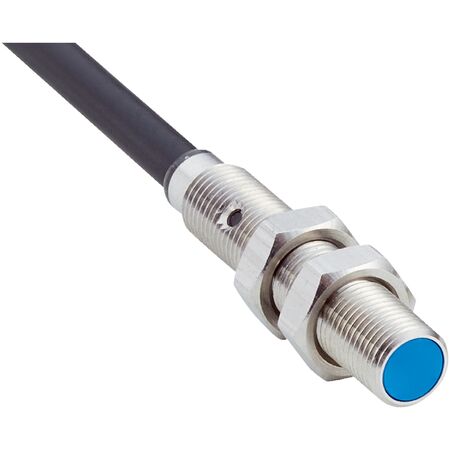

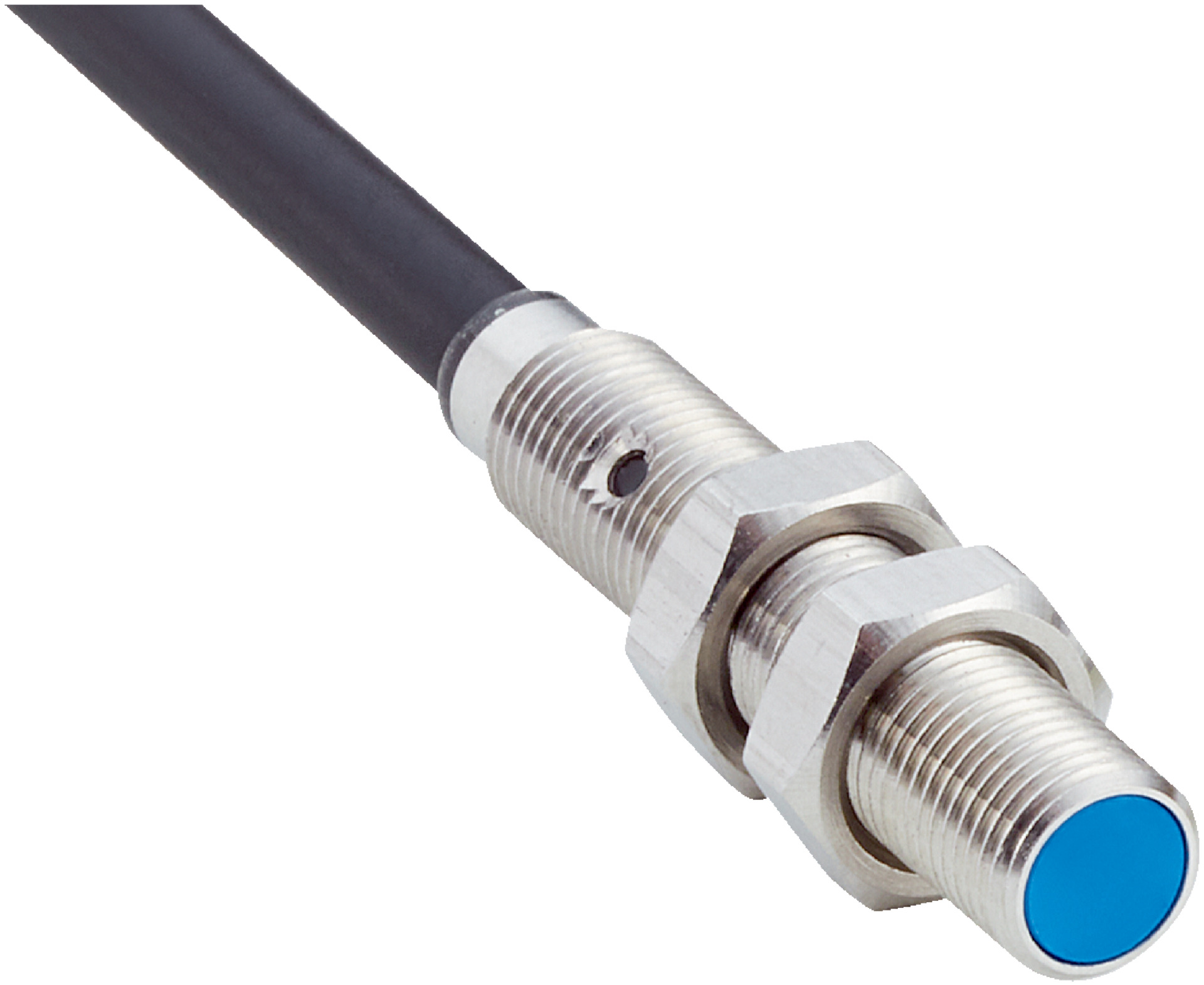

Inductive Proximity Sensor M5 | IP67 Rated | NPN Normally Closed | 1.5mm Sensing Range | by SICK
The Inductive Proximity Sensor M5 is designed for reliable object detection in industrial automation, featuring a sensing range of 1.5 mm and an IP67 rated enclosure for robust protection. With a high switching frequency of 4,800 Hz and a durable stainless steel housing, this sensor is perfect for position sensing in manufacturing lines and metal detection in machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 10 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 2.5%
- Temperature drift of sensing range: ≤ 10%
- Continuous current Ia: ≤ 200 mA
- Cable material: PUR, diameter Ø 2.9 mm, conductor size 0.14 mm²
- Switching output: NPN, normally closed (NC)
- Switching frequency: 4,800 Hz
- Enclosure rating: IP67
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic, LCP
- Thread size: M5 x 0.5
- Thread length: 23 mm
- Housing length: 25 mm
- Tightening torque max: ≤ 1.5 Nm
- Dimensions (H x L x W): 25mm x 25mm x 5mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M5 x 0.5 thread size
- Sensing range of 1.5 mm with safe sensing range of 1.215 mm
- Flush installation type with IP67 rated enclosure
- High switching frequency of 4,800 Hz
- NPN switching output with normally closed (NC) function
- Visual adjustment indicator for easy setup
- Cable connection type: 3-wire, 2 meters long
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Operating temperature range from -25 °C to +70 °C
- Housing made of stainless steel V2A (DIN 1.4305 / AISI 303)
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor installation to ensure proper mounting and wiring according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems in factories
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Low power consumption design
- Robust protection against environmental factors reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IMM05-1B5NOVU2S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
