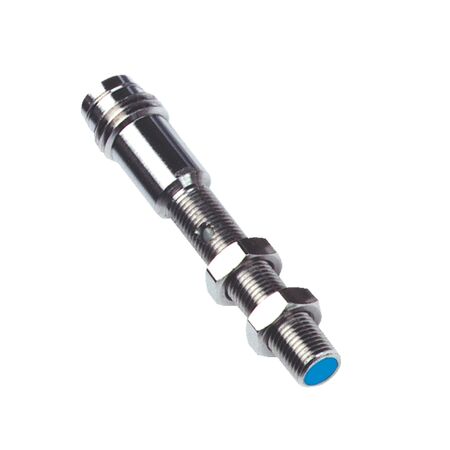

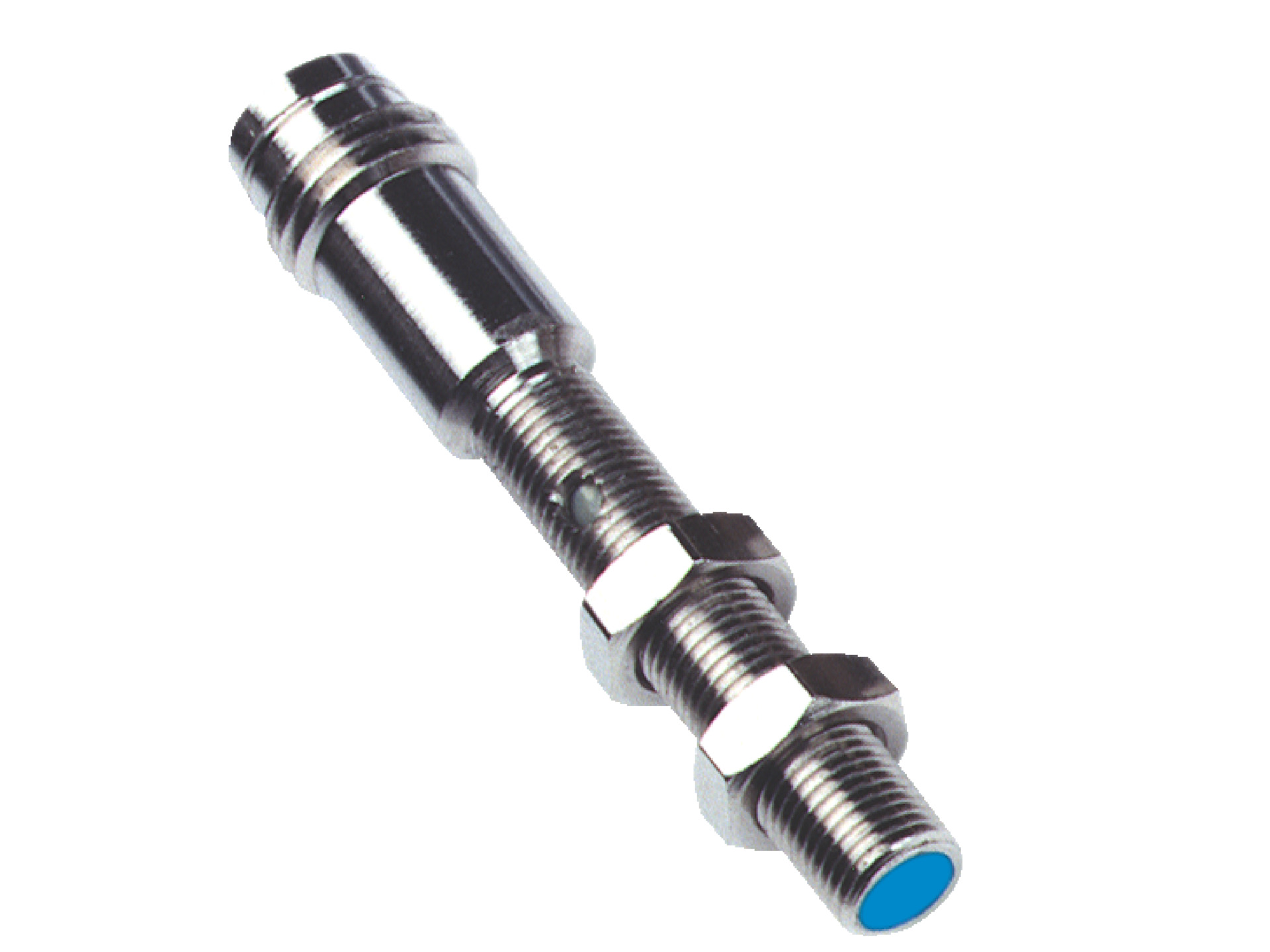

Inductive Proximity Sensor M5 | IP67 Rated | Stainless Steel Housing | 5000 Hz Switching Frequency | by SICK
The Inductive Proximity Sensor M5 is designed for reliable object detection in industrial automation, featuring a robust IP67 enclosure and a high switching frequency of 5000 Hz. Built with durable stainless steel housing, it ensures longevity and performance in harsh environments, making it ideal for manufacturing lines and safety systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 10 ms
- Hysteresis: 1% to 10%
- Reproducibility: ≤ 1.5%
- Temperature drift of sensing range: ≤ 10%
- Switching frequency: 5,000 Hz
- Switching output: PNP, NC function
- Connection type: Connector M8, 3-pin
- Enclosure rating: IP67
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic, POM
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Ambient operating temperature: –25 °C to +70 °C
- Short-circuit protection: Yes
- Dimensions (H x L x W): 5mm x 38mm x 5mm
- Weight: 0.1 kg
Key Features
- Standard design housing with stainless steel V2A material
- Thread size M5 x 0.5 with 5 mm diameter sensing face
- Flush installation type with IP67 enclosure rating
- High switching frequency of 5,000 Hz
- PNP switching output with NC output function
- Connector M8, 3-pin connection type
- Short-circuit protection included
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from –25 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor installation standards to ensure proper mounting and wiring.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems in factories
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Low power consumption with DC 3-wire electrical wiring
- RoHS compliant, ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IM05-0B8PO-ZT1 Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
