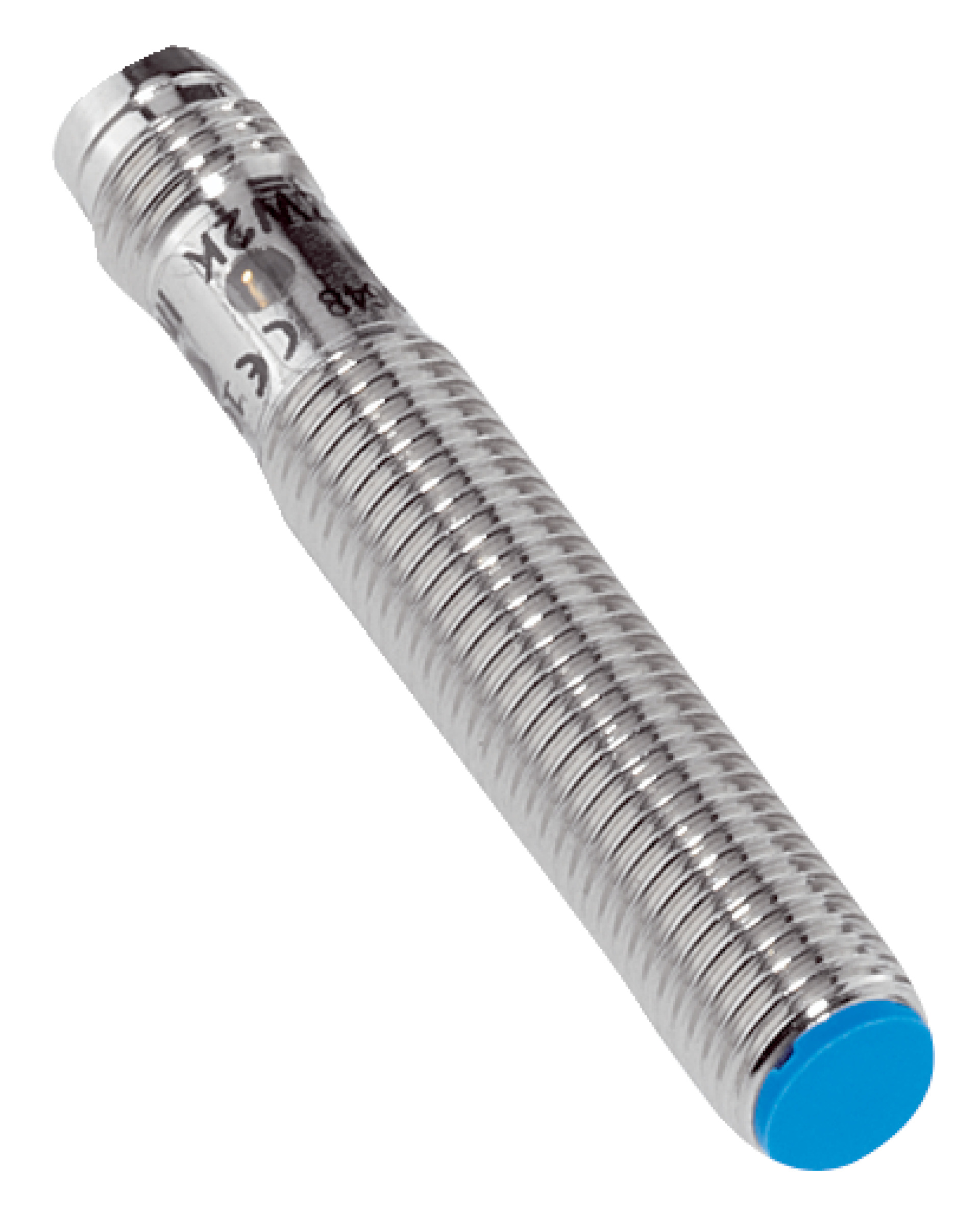

Inductive Proximity Sensor M8 | 2mm Sensing Range | IP67 Rated | 4000 Hz Switching Frequency | by SICK
The Inductive Proximity Sensor M8 is designed for precise object detection with a 2mm sensing range and a robust IP67 enclosure. Ideal for industrial automation and metal detection, this sensor features a high switching frequency of 4000 Hz and is built to withstand harsh environments, ensuring reliable performance in manufacturing lines and safety systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor M8 | 2mm Sensing Range | IP67 Rated | 4000 Hz Switching Frequency | by SICK
Brand: SICK
SKU: 1040870
Alternatively Known As: M8 Inductive Proximity Sensor, SICK IME08 Sensor, Proximity Switch M8, Inductive Sensor 2mm
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Switching output: PNP, normally open (NO)
- Connection type: Connector M8, 3-pin
- Enclosure rating: IP67
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread length: 34 mm
- Tightening torque max: ≤ 5 Nm
- Dimensions (H x L x W): 50mm x 50mm x 8mm
- Weight: 0.1 kg
Key Features
- Standard design housing with brass, nickel-plated material
- Thread size M8 x 1 with 2 mm sensing range
- Flush installation type with IP67 enclosure rating
- High switching frequency of 4,000 Hz
- PNP switching output with NO function
- Connector M8, 3-pin connection type
- Short-circuit and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz)
- Wide ambient operating temperature from -25 °C to +75 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems in factories
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Energy-efficient operation with low power consumption
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

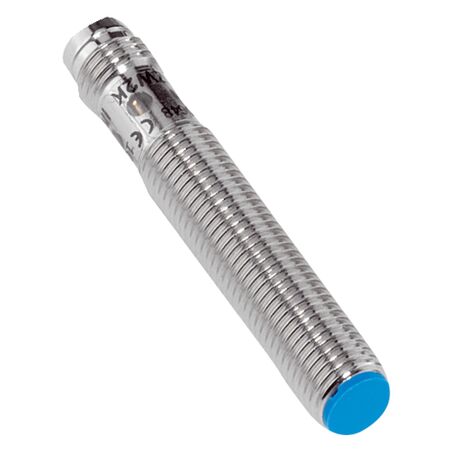

The SICK IME08-02BPSZT0S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
