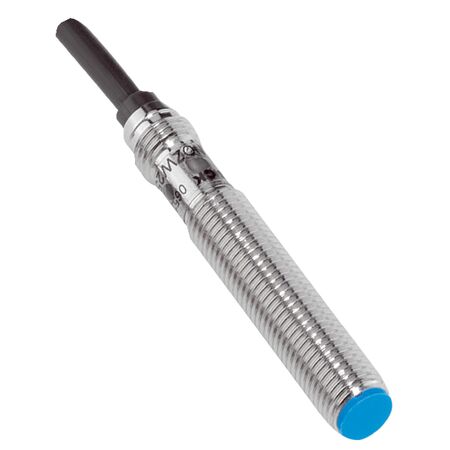

Inductive Proximity Sensor M8 | 4mm Sensing Range | IP67 Rated | NPN Output | by SICK
The Inductive Proximity Sensor M8 is designed for precise object detection in industrial automation, featuring a 4mm sensing range and an IP67 rated enclosure for dust and water protection. With a robust brass housing and a switching frequency of up to 500 Hz, this sensor is perfect for position sensing in manufacturing lines and metal detection in machinery, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ± 10%
- Continuous current: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PVC, diameter 3.9 mm
- Conductor size: 0.25 mm²
- Shock resistance: 30 g, 11 ms
- Operating temperature: -25 °C to +75 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread length: 34 mm
- Tightening torque max: ≤ 5 Nm
- EMC compliant according to EN 60947-5-2
- Dimensions (H x L x W): 52mm x 52mm x 8mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M8 x 1 thread size
- Sensing range of 4 mm with safe sensing range of 3.24 mm
- Quasi-flush installation type
- Switching frequency up to 500 Hz
- NPN normally open (NO) switching output
- Cable connection, 3-wire, 2 meters long
- IP67 rated enclosure for dust and water protection
- Quadruple sensing range for enhanced detection
- Short-circuit and power-up pulse protection
- Shock and vibration resistant up to 30 g
Professional Installation Requirements
- Installation should be performed by qualified personnel following the provided installation guidelines to ensure correct mounting and electrical connection.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems in factories
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable brass housing with nickel plating extends product life reducing waste
- Energy-efficient operation with low current consumption
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK IME08-04BNSZW2S inductive sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
