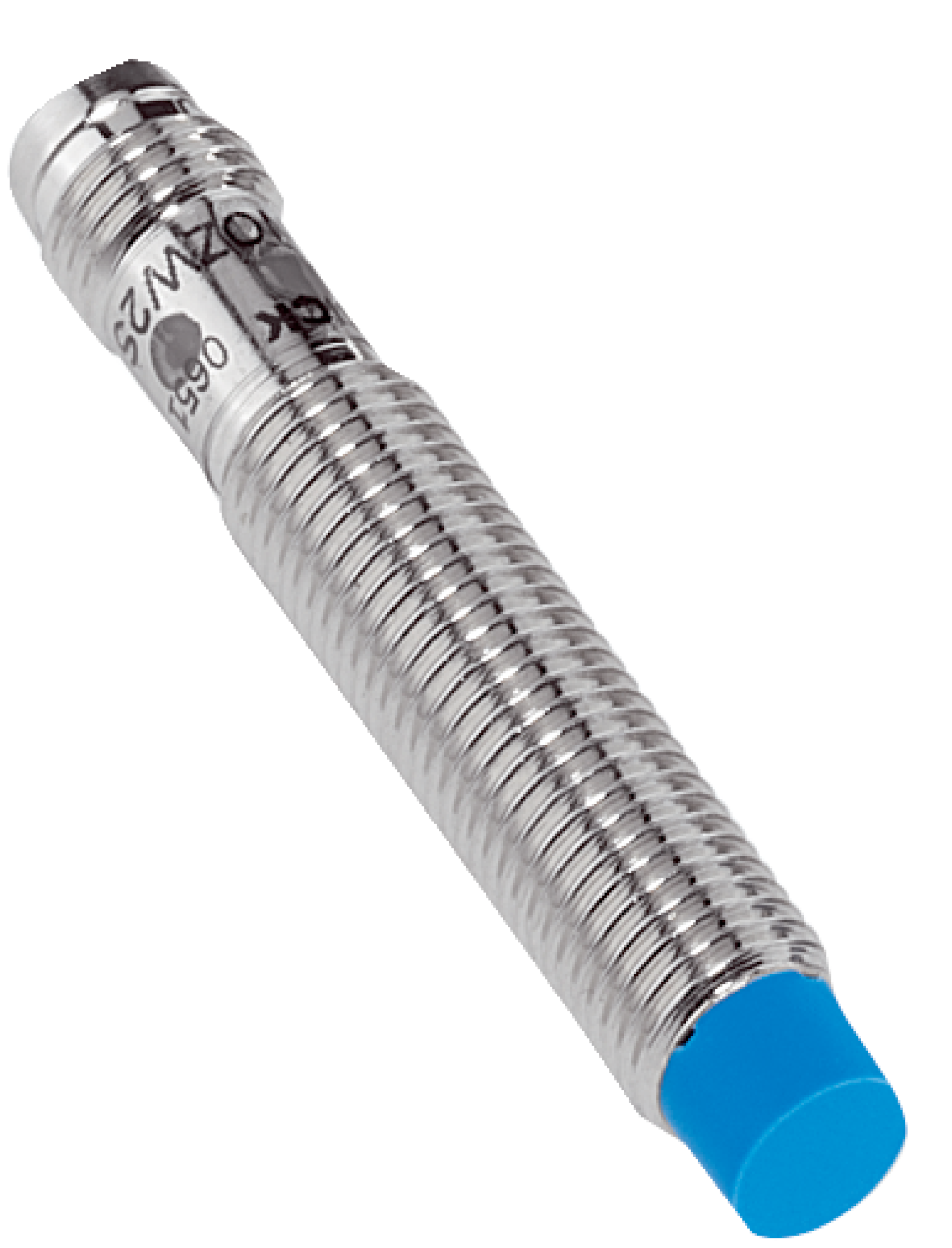

Inductive Proximity Sensor M8 | 4mm Sensing Range | IP67 Rated | High Switching Frequency | by SICK
The Inductive Proximity Sensor M8 is designed for reliable object detection in industrial automation, featuring a 4mm sensing range and an IP67 rated enclosure for dust and water protection. With a high switching frequency of 4,000 Hz and a robust brass housing, this sensor is perfect for non-contact switching in machinery and metal detection in conveyor systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Inductive Proximity Sensor M8, M8 Proximity Sensor, SICK IME08 Sensor, Metal Proximity Switch
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current: ≤ 200 mA
- No load current: ≤ 10 mA
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz, 1 mm
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Tightening torque max: ≤ 5 Nm
- Switching output: PNP, normally open
- Connection type: Connector M8, 3-pin
- Enclosure rating: IP67
- Dimensions (H x L x W): 50mm x 8mm x 8mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M8 x 1 thread size
- Sensing range of 4 mm with safe sensing range of 3.24 mm
- Non-flush installation type
- High switching frequency of 4,000 Hz
- PNP switching output with NO function
- Connector M8, 3-pin connection type
- IP67 rated enclosure for dust and water protection
- Includes mounting nuts, steel, nickel-plated
- Shock and vibration resistant up to 30 g
- Wide ambient operating temperature range from -25°C to +75°C
- Short-circuit and power-up pulse protection
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct mounting torque and electrical connection for optimal sensor performance and safety.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact switching in machinery
- Metal detection in conveyor systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Non-contact sensing reduces mechanical wear and maintenance waste
- Energy-efficient operation with low power consumption
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

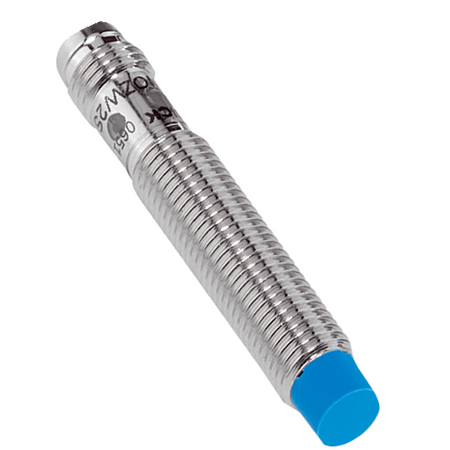

The SICK IME08-04NPSZT0S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
