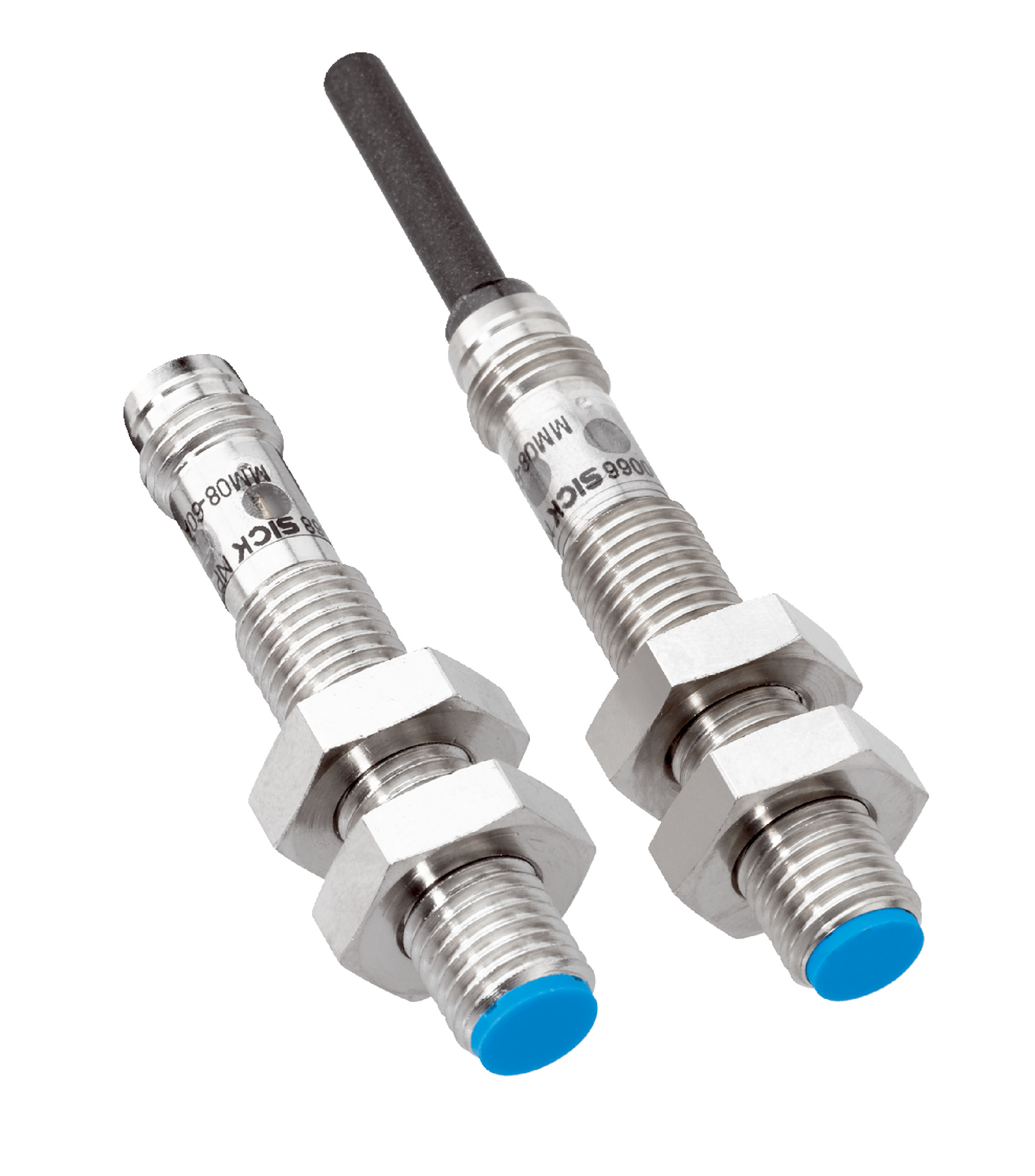

Inductive Proximity Sensor M8 | 60mm Sensing Range | IP67 Rated | PNP Output | by SICK
The Inductive Proximity Sensor M8 is designed for precise object detection with a sensing range of up to 60mm and a safe sensing range of 48.6mm. Ideal for industrial automation and machinery safety applications, this sensor features a high switching frequency of 1,000 Hz and an IP67 rated enclosure for dust and water protection. Built with a durable nickel-plated brass housing, it ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor M8 | 60mm Sensing Range | IP67 Rated | PNP Output | by SICK
Brand: SICK
SKU: 1042425
Alternatively Known As: Inductive Proximity Sensor M8, SICK Proximity Sensor MM08, M8 Inductive Sensor 60mm Range
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 10 mA
- Switching output: PNP, normally closed
- Switching frequency: 1,000 Hz
- Sensing range Sn: 0 to 60 mm
- Safe sensing range Sa: 48.6 mm
- Voltage drop: ≤ 2 V
- Hysteresis: 1% to 10%
- Reproducibility: ≤ 1%
- Temperature drift: ±10%
- Cable: 3 m, 3-wire PUR/PVC
- Protection: IP67
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10-55 Hz, 1 mm
- Housing material: Nickel-plated brass
- Thread size: M8 x 1
- Connection type: Cable, 3-wire
- Dimensions (H x L x W): 8mm x 48mm x 8mm
- Weight: 0.1 kg
Key Features
- Short-body metal housing with nickel-plated brass
- M8 x 1 thread size with 48 mm housing length
- Sensing range up to 60 mm with safe sensing range of 48.6 mm
- High switching frequency of 1,000 Hz
- PNP normally closed output with 3-wire DC connection
- IP67 rated enclosure for dust and water protection
- Reverse polarity, short-circuit, and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
- Wide operating temperature range from -25 °C to +75 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and secure mounting according to industrial safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Safety and control systems in machinery
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable metal housing extends product life reducing waste
- Low power consumption of 10 mA supports energy efficiency
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

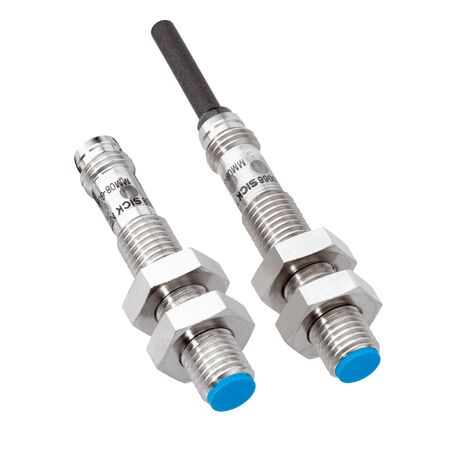

The SICK MM08-60APO-ZUA inductive proximity sensor is available for immediate purchase, ideal for industrial automation and machinery safety applications.
