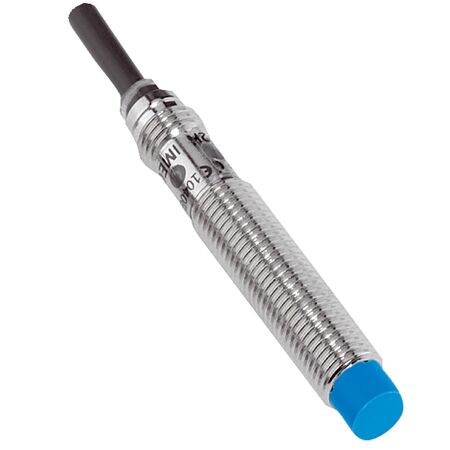

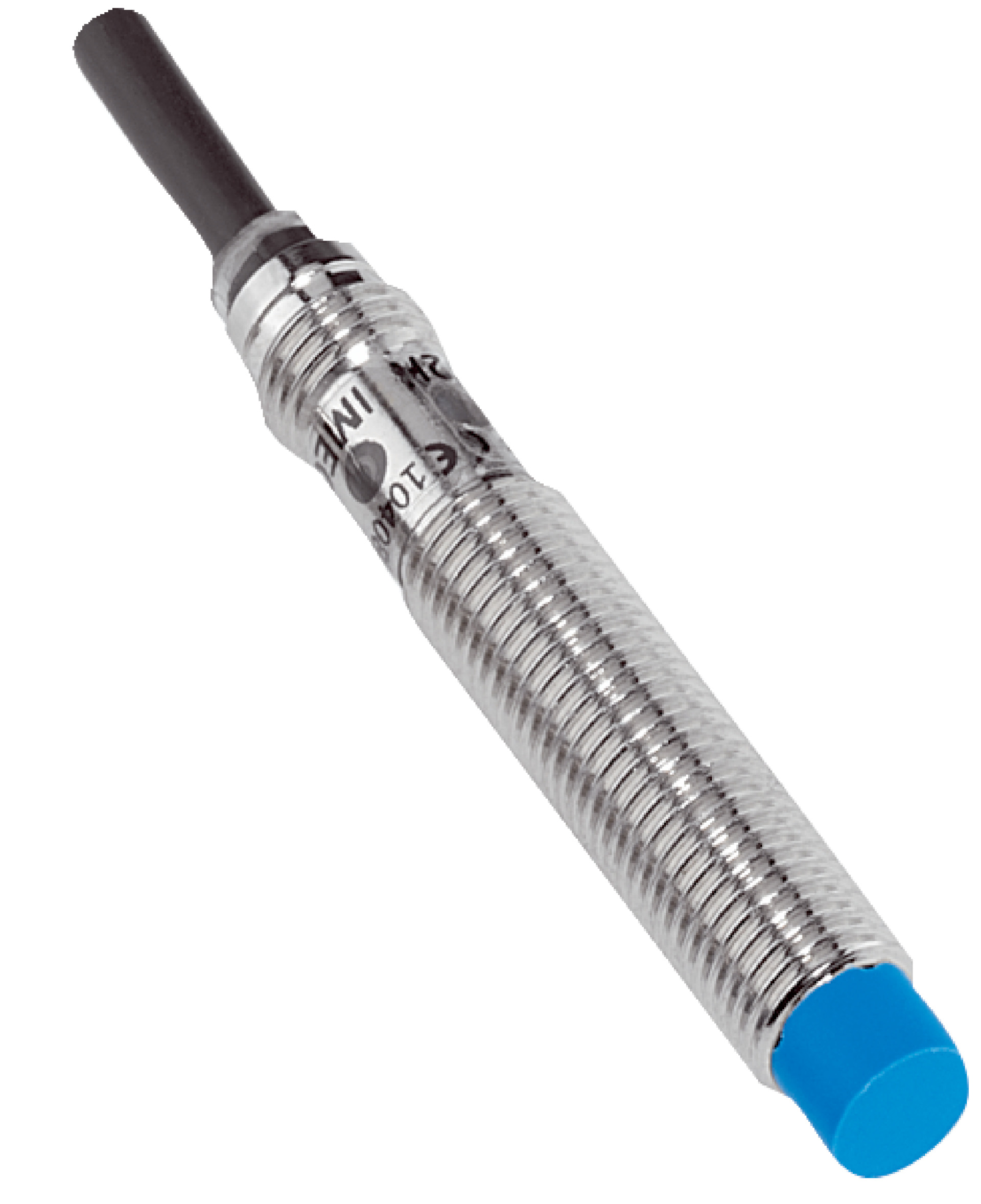

Inductive Proximity Sensor M8 | 6mm Sensing Range | IP67 Rated | NPN Output | by SICK
The Inductive Proximity Sensor M8 is designed for reliable object detection in industrial automation, featuring a 6mm sensing range and IP67 rated enclosure for dust and water protection. With a robust brass housing and nickel plating, this sensor ensures durability in harsh environments, making it ideal for manufacturing lines and non-contact detection applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ± 10%
- EMC compliant according to EN 60947-5-2
- Continuous current: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PVC, diameter 3.9 mm
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz
- Operating temperature: -25 °C to +75 °C
- Storage temperature: -25 °C to +75 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Housing length: 52 mm
- Thread length: 30 mm
- Max tightening torque: ≤ 5 Nm
- Dimensions (H x L x W): 52mm x 52mm x 8mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M8 x 1 thread size
- Non-flush installation type
- Sensing range of 6 mm with safe sensing range of 4.86 mm
- Switching frequency up to 500 Hz
- NPN normally open (NO) switching output
- Cable connection, 3-wire, 2 meters length
- IP67 rated enclosure for dust and water protection
- Triple sensing range feature
- Mounting nut included (brass, nickel-plated)
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact detection in harsh environments
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable brass housing with nickel plating for long service life reducing waste
- Energy-efficient sensor operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK IME08-06NNSZW2S inductive sensor is available for immediate purchase, ideal for industrial automation and sensing applications.
