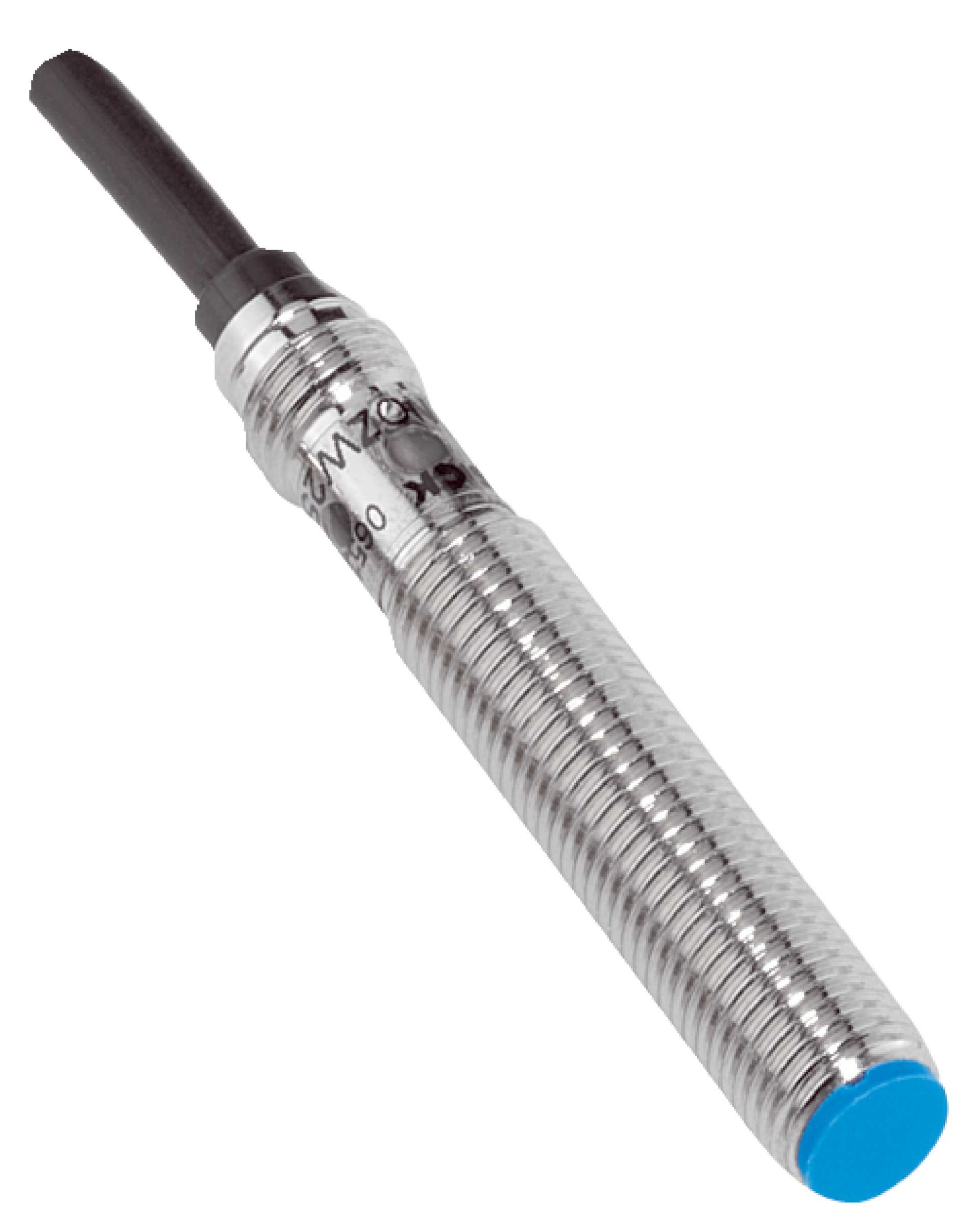

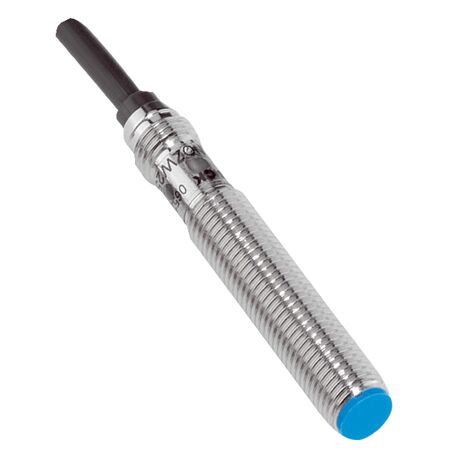

Inductive Proximity Sensor M8 | IP67 Rated | 1.5mm Sensing Range | 4000 Hz Switching Frequency | by SICK
Inductive proximity sensor M8 designed for industrial automation, featuring a 1.5mm sensing range and a high switching frequency of 4000 Hz. With an IP67 enclosure rating, it ensures reliable performance in harsh environments, making it ideal for object detection and position sensing in manufacturing lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor M8 | IP67 Rated | 1.5mm Sensing Range | 4000 Hz Switching Frequency | by SICK
Brand: SICK
SKU: 1043555
Alternatively Known As: Inductive Proximity Sensor M8, IME08 Proximity Sensor, SICK Proximity Sensor, M8 Inductive Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PVC, diameter Ø 3.9 mm, conductor size 0.25 mm²
- Switching output: NPN, normally open (NO)
- Switching frequency: 4,000 Hz
- Enclosure rating: IP67
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread length: 34 mm
- Tightening torque max: ≤ 5 Nm
- Dimensions (H x L x W): 52mm x 8mm x 8mm
- Weight: 0.1 kg
Key Features
- Standard design with M8 x 1 thread size
- Sensing range of 1.5 mm with safe sensing range of 1.215 mm
- Flush installation type
- High switching frequency of 4,000 Hz
- NPN normally open (NO) switching output
- Cable connection, 3-wire, 5 m length
- Enclosure rating IP67 for dust and water protection
- Short-circuit and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz)
- Operating temperature range from -25 °C to +75 °C
- Housing made of nickel-plated brass with plastic sensing face
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper flush mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Automation systems requiring flush mounting sensors
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption with DC 3-wire electrical wiring
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME08-1B5NSZW5S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
