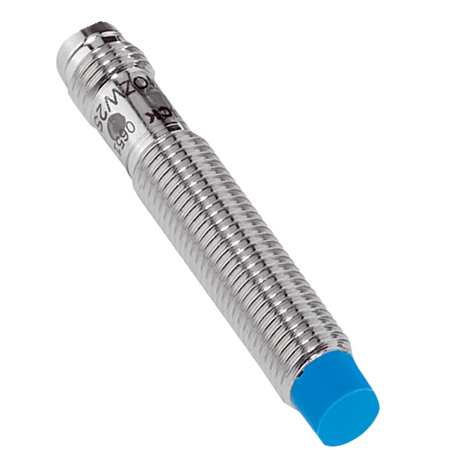

Inductive Proximity Sensor M8 | IP67 Rated | 2.5mm Sensing Range | 4000Hz Switching Frequency | by SICK
The Inductive Proximity Sensor M8 is designed for reliable object detection in industrial automation, featuring a sensing range of 2.5 mm and a high switching frequency of 4,000 Hz. With an IP67 enclosure rating, it offers excellent dust and water protection, making it ideal for harsh environments. This sensor is perfect for position sensing in manufacturing lines and non-contact switching in machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Inductive Proximity Sensor M8, M8 Proximity Sensor, SICK IME08 Sensor, M8 Inductive Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz, 1 mm
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Tightening torque max: ≤ 5 Nm
- Switching output: PNP, normally open
- Connection type: Connector M8, 3-pin
- Enclosure rating: IP67
- Dimensions (H x L x W): 50mm x 50mm x 8mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M8 x 1 thread size
- Sensing range of 2.5 mm with safe sensing range of 2.025 mm
- Non-flush installation type
- High switching frequency of 4,000 Hz
- PNP switching output with normally open function
- Connector M8, 3-pin connection type
- Enclosure rating IP67 for dust and water protection
- Shock and vibration resistant up to 30 g
- Wide ambient operating temperature range from -25 °C to +75 °C
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct wiring and secure mounting according to manufacturer guidelines.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact switching in machinery
- Metal detection in conveyor systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Non-contact sensing reduces mechanical wear and maintenance waste
- Energy-efficient operation with low current consumption
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IME08-2N5PSZT0S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
