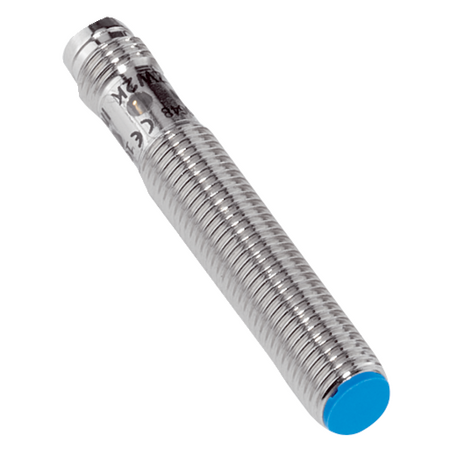

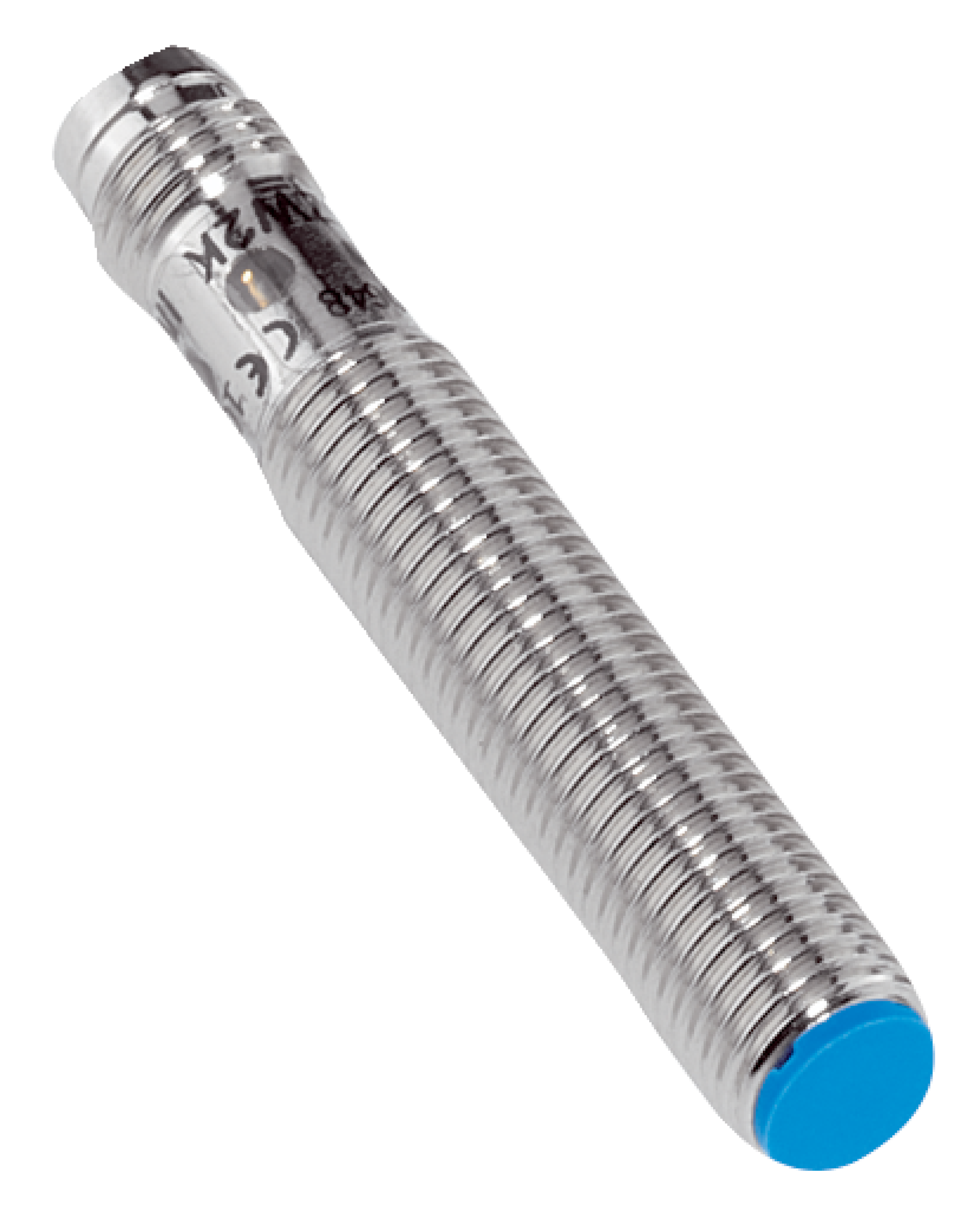

Inductive Proximity Sensor M8 | IP67 Rated | 2mm Sensing Range | 4000Hz Switching Frequency | by SICK
The Inductive Proximity Sensor M8 is designed for reliable object detection in industrial automation, featuring a 2mm sensing range and a high switching frequency of 4000Hz. With an IP67 rated enclosure, it offers excellent protection against dust and water, making it ideal for manufacturing lines and safety systems. Built for durability and efficiency, this sensor ensures optimal performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M8 Inductive Proximity Sensor, IME08 Proximity Sensor, SICK Proximity Sensor M8, Inductive Sensor M8
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Switching output: PNP, Normally Open (NO)
- Connection type: Connector M8, 3-pin
- Enclosure rating: IP67
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread length: 34 mm
- Tightening torque max: ≤ 5 Nm
- Dimensions (H x L x W): 8mm x 50mm x 8mm
- Weight: 0.1 kg
Key Features
- Standard design with M8 x 1 thread size
- Sensing range of 2 mm with safe sensing range of 1.62 mm
- Flush installation type
- High switching frequency of 4,000 Hz
- PNP switching output with NO function
- IP67 rated enclosure for dust and water protection
- Short-circuit and power-up pulse protection
- Shock and vibration resistant up to 30 g
- Wide operating temperature range from -25°C to +75°C
- Housing made of nickel-plated brass with plastic sensing face
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper mounting and electrical connection.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems in factories
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME08-02BPSZT0S Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
