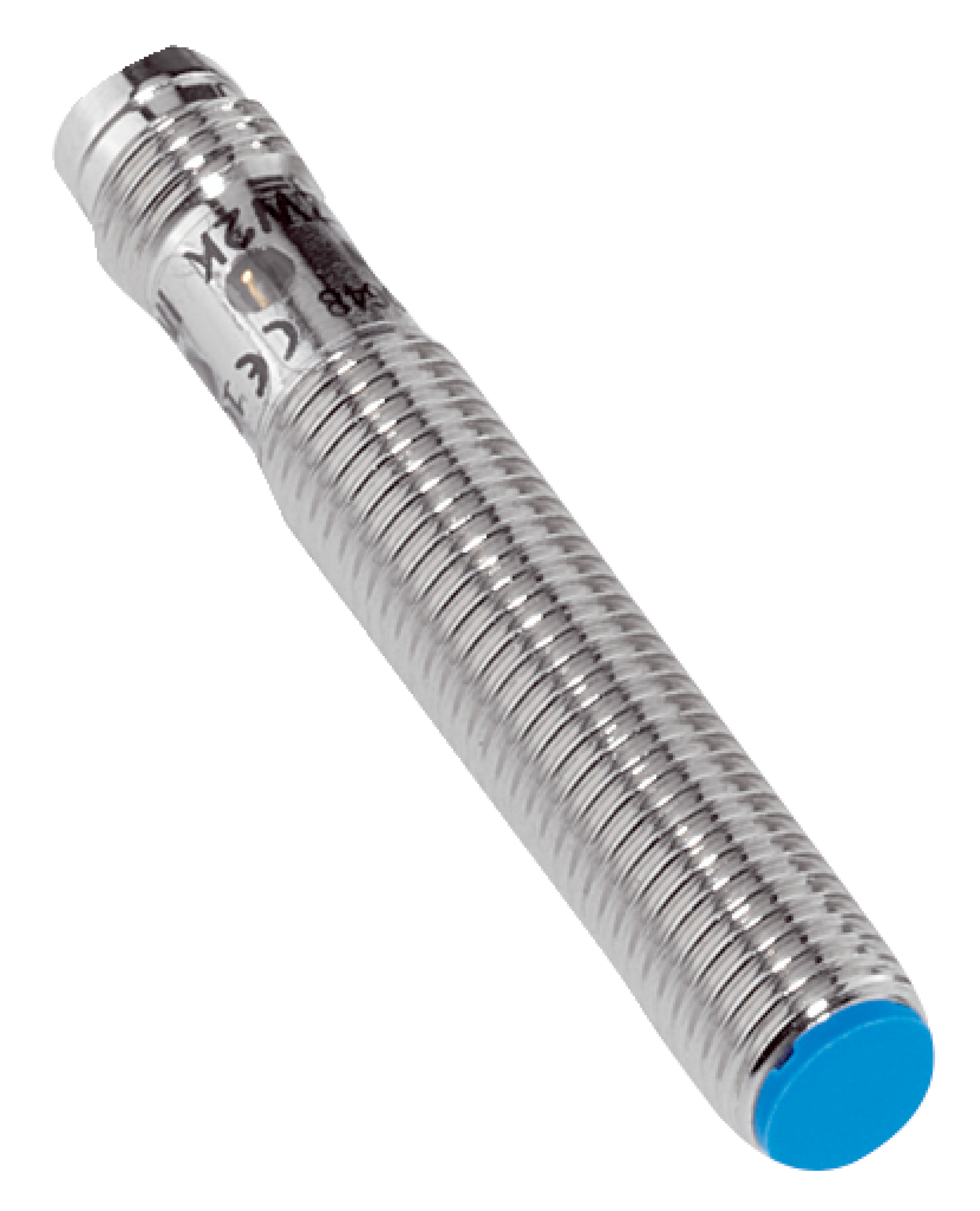

Inductive Proximity Sensor M8 | IP67 Rated | 4,000 Hz Switching Frequency | 1.5 mm Sensing Range | by SICK
The Inductive Proximity Sensor M8 is designed for reliable object detection in industrial automation, featuring a sensing range of 1.5 mm and a high switching frequency of 4,000 Hz. With an IP67 enclosure rating, it ensures durability in harsh environments, making it ideal for manufacturing lines and safety systems. Built with a nickel-plated brass housing and a plastic sensing face, this sensor is engineered for long-lasting performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Inductive Proximity Sensor M8, IME08 Proximity Sensor, SICK Proximity Sensor, M8 Inductive Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Switching output: PNP, normally open
- Connection type: Connector M8, 3-pin
- Enclosure rating: IP67
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread size: M8 x 1
- Switching frequency: 4,000 Hz
- Short-circuit and power-up pulse protection included
- Ambient operating temperature: -25 °C to +75 °C
- Dimensions (H x L x W): 50mm x 8mm x 8mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M8 x 1 thread size
- Sensing range of 1.5 mm with safe sensing range of 1.215 mm
- Flush installation type with IP67 enclosure rating
- High switching frequency of 4,000 Hz
- PNP switching output with normally open function
- Connector M8, 3-pin connection type
- Short-circuit and power-up pulse protection included
- Shock and vibration resistant up to 30 g
- Wide ambient operating temperature range from -25 °C to +75 °C
- Housing made of nickel-plated brass with plastic sensing face
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor installation to ensure proper mounting and wiring according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems requiring proximity sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Energy-efficient operation with low power consumption
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

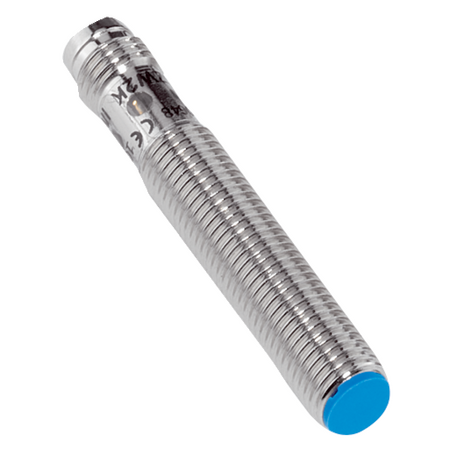

The SICK IME08-1B5PSZT0S Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
