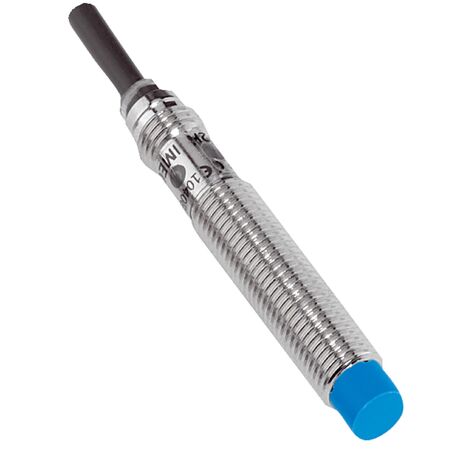

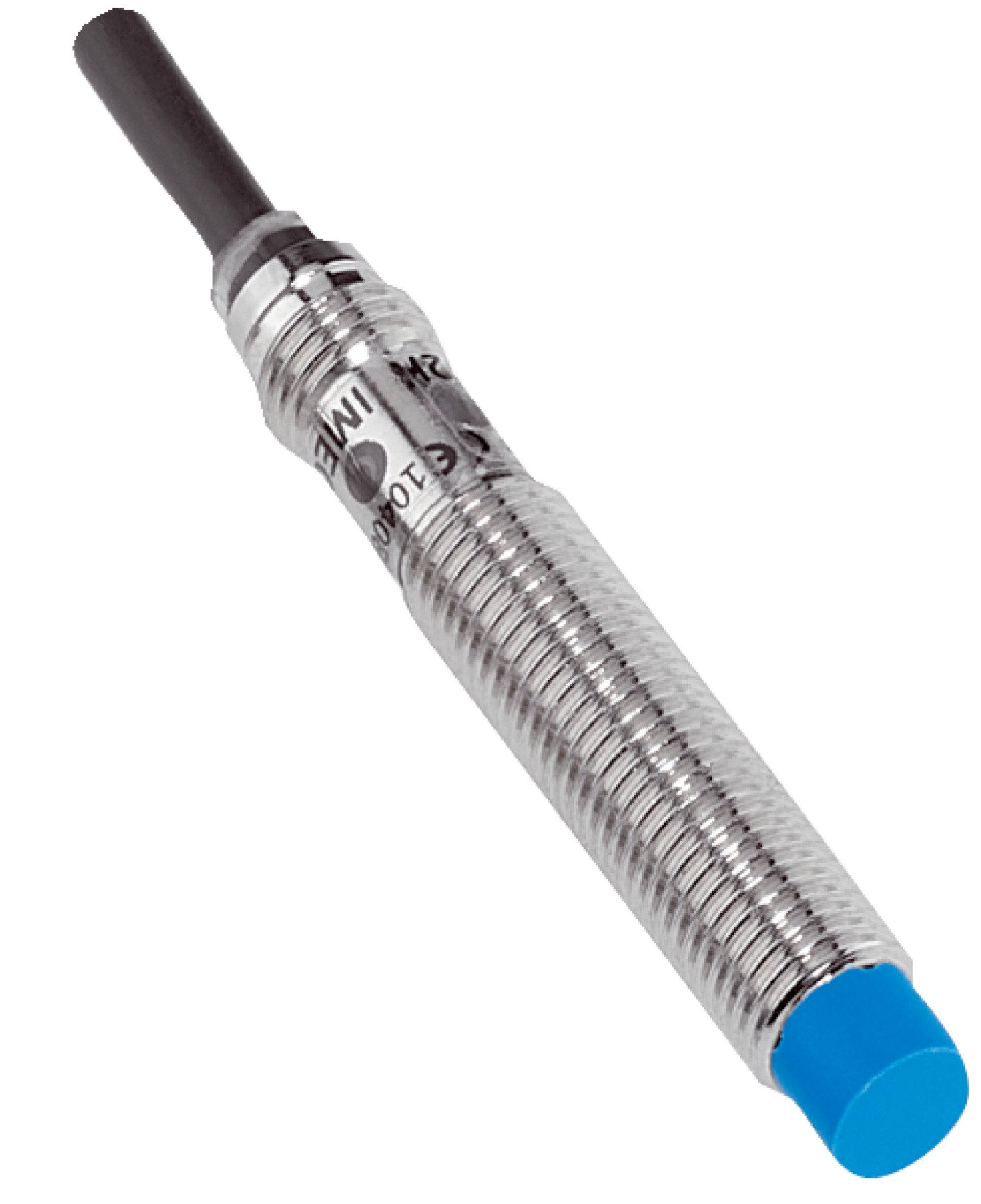

Inductive Proximity Sensor M8 | IP67 Rated | 4000 Hz Switching Frequency | Brass Housing | by SICK
The Inductive Proximity Sensor M8 is designed for reliable object detection in industrial automation, featuring a high switching frequency of 4000 Hz and an IP67 rated enclosure for dust and water protection. Built with a durable brass housing, this sensor is perfect for non-contact switching in manufacturing lines and metal detection in conveyor systems, ensuring longevity and reduced maintenance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor M8 | IP67 Rated | 4000 Hz Switching Frequency | Brass Housing | by SICK
Brand: SICK
SKU: 1043843
Alternatively Known As: Inductive Proximity Sensor M8, M8 Proximity Sensor, SICK IME08 Sensor, M8 Inductive Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Switching frequency: 4,000 Hz
- Switching output: PNP, Normally Open (NO)
- Electrical wiring: DC 3-wire
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable: PVC, diameter 3.9 mm, length 0.3 m with M8 3-pin connector
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, 1 mm
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Tightening torque max: ≤ 5 Nm
- MTTFD: 1,735 years
- Dimensions (H x L x W): 8mm x 52mm x 8mm
- Weight: 0.1 kg
Key Features
- Standard design housing with brass, nickel-plated material
- M8 x 1 thread size with 4 mm sensing range
- Non-flush installation type
- High switching frequency of 4,000 Hz
- PNP switching output with NO function
- IP67 rated enclosure for dust and water protection
- Short-circuit and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz)
- Operating temperature range from -25 °C to +75 °C
- Includes mounting nuts, steel, nickel-plated (2x)
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and secure mounting according to industrial safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact switching in machinery
- Metal detection in conveyor systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Non-contact sensing reduces mechanical wear and maintenance waste
- Durable IP67 housing extends product life, reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME08-04NPSZRDSS02 inductive proximity sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
