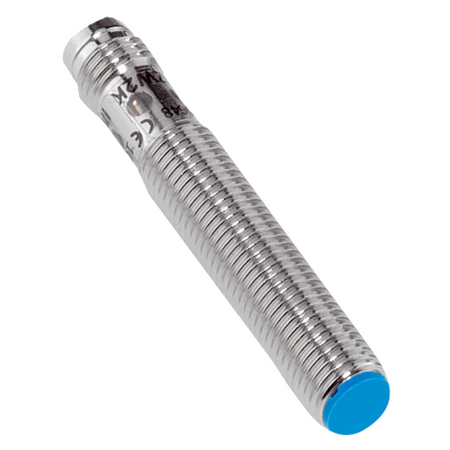

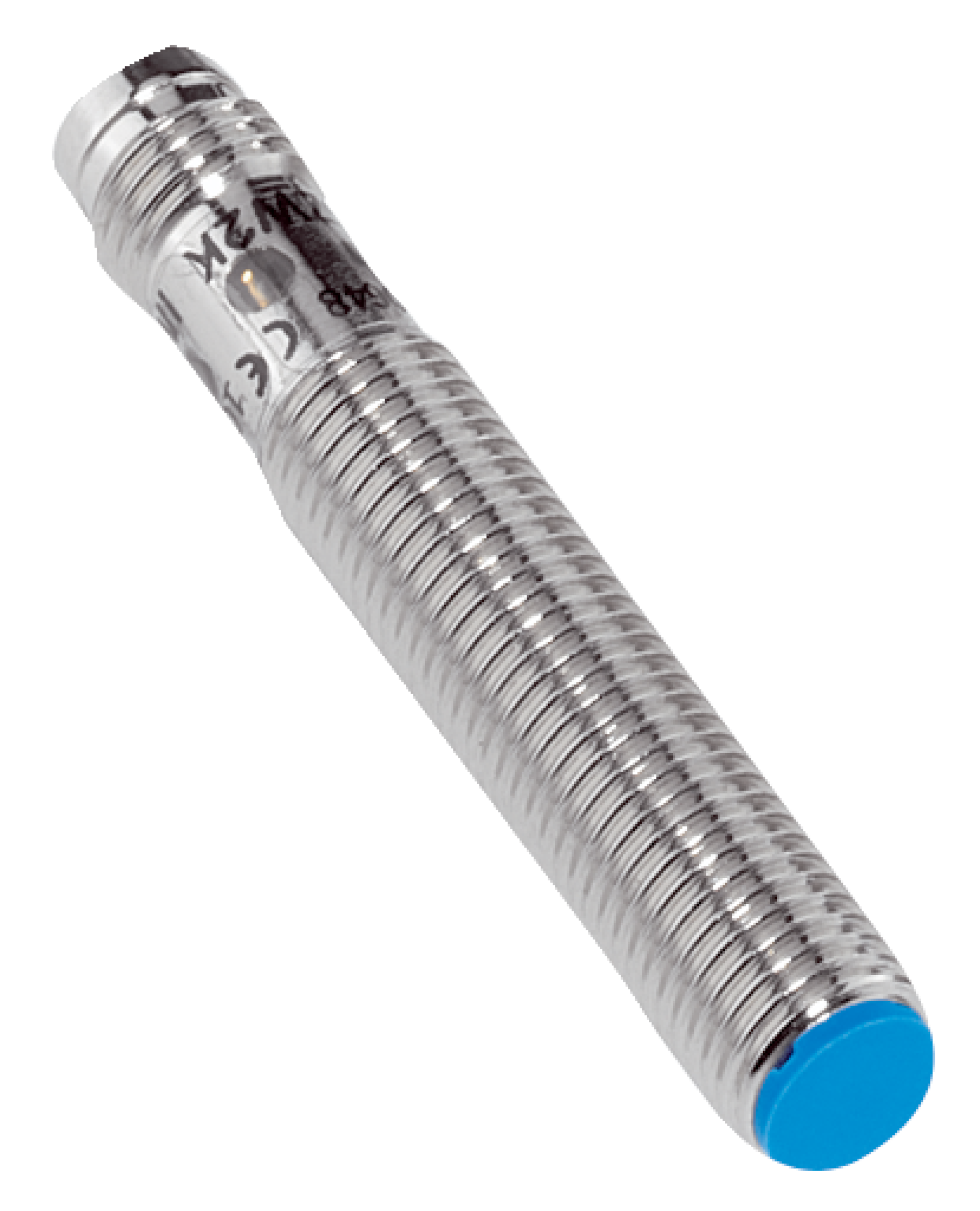

Inductive Proximity Sensor M8 | IP67 Rated | 4,000 Hz Switching Frequency | Flush Installation | by SICK
The Inductive Proximity Sensor M8 is designed for reliable object detection in industrial automation, featuring an IP67 rated enclosure for dust and water protection. With a high switching frequency of 4,000 Hz and a sensing range of 2 mm, it's perfect for position sensing in manufacturing lines and metal detection in machinery, ensuring safety and efficiency in factory operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Inductive Proximity Sensor M8, IME08 Proximity Sensor, SICK Proximity Sensor, M8 Inductive Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Switching output: PNP, NC function
- Connection type: Connector M8, 3-pin
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz
- Ambient operating temperature: -25 °C to +75 °C
- Enclosure rating: IP67
- Dimensions (H x L x W): 8mm x 50mm x 8mm
- Weight: 0.1 kg
Key Features
- Standard design with M8 x 1 thread size
- Sensing range of 2 mm with safe sensing range of 1.62 mm
- Flush installation type
- High switching frequency of 4,000 Hz
- PNP switching output with NC function
- DC 3-wire electrical wiring
- IP67 rated enclosure for dust and water protection
- Includes mounting nuts, steel, nickel-plated
- Short-circuit and power-up pulse protection
- Shock and vibration resistant up to 30 g
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems in factories
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable nickel-plated brass housing reduces replacement frequency
- Energy-efficient operation with low current consumption
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK IME08-02BPOZT0S Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
