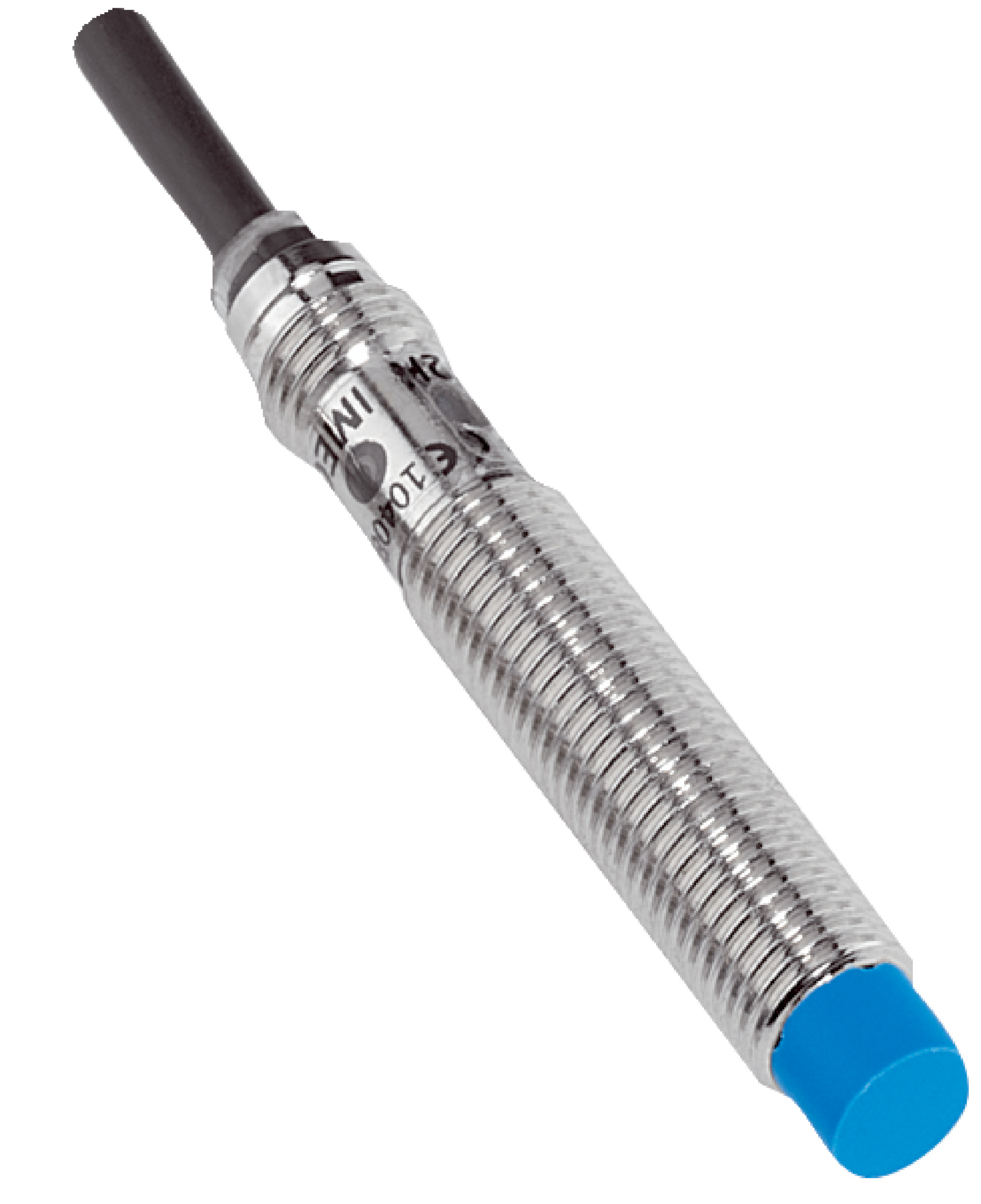

Inductive Proximity Sensor M8 | IP67 Rated | 4mm Sensing Range | 4000Hz Switching Frequency | by SICK
The Inductive Proximity Sensor M8 is designed for reliable object detection in industrial automation, featuring a sensing range of 4 mm and a high switching frequency of 4,000 Hz. With an IP67 enclosure rating, it ensures protection against dust and water, making it ideal for harsh environments. Perfect for position sensing in manufacturing lines and non-contact switching in machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor M8 | IP67 Rated | 4mm Sensing Range | 4000Hz Switching Frequency | by SICK
Brand: SICK
SKU: 1040888
Alternatively Known As: Inductive Proximity Sensor M8, M8 Proximity Sensor, SICK IME08 Sensor, Metal Proximity Switch
Technical Specifications
- Housing: Standard design, brass nickel-plated
- Thread size: M8 x 1
- Diameter: 8 mm
- Sensing range Sn: 4 mm
- Safe sensing range Sa: 3.24 mm
- Installation type: Non-flush
- Switching frequency: 4,000 Hz
- Connection type: Cable, 3-wire, 2 m
- Switching output: PNP, normally open
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PVC
- Conductor size: 0.25 mm²
- Cable diameter: 3.9 mm
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz
- Ambient operating temperature: -25 °C to +75 °C
- Housing length: 52 mm
- Thread length: 30 mm
- Tightening torque max: ≤ 5 Nm
- Dimensions (H x L x W): 8mm x 52mm x 8mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M8 x 1 thread size
- Sensing range of 4 mm with safe sensing range of 3.24 mm
- Non-flush installation type
- High switching frequency of 4,000 Hz
- PNP switching output with normally open function
- Cable connection type, 3-wire, 2 meters length
- Enclosure rating IP67 for dust and water protection
- Shock and vibration resistance up to 30 g
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact switching in machinery
- Metal detection in conveyor systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Non-contact sensing reduces mechanical wear and tear, extending equipment life
- Energy-efficient operation with low current consumption
- Durable IP67 rated housing minimizes replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

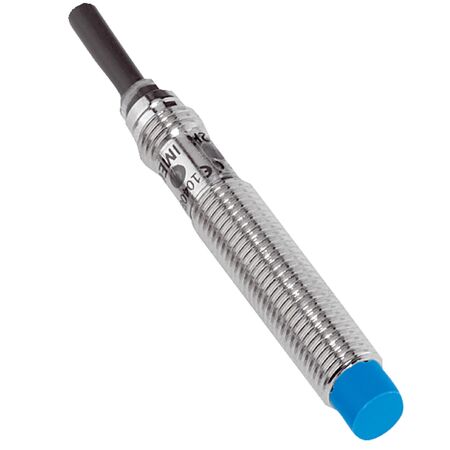

The SICK IME08-04NPSZW2S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
