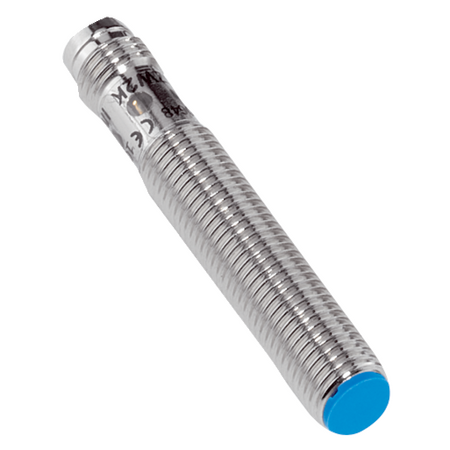

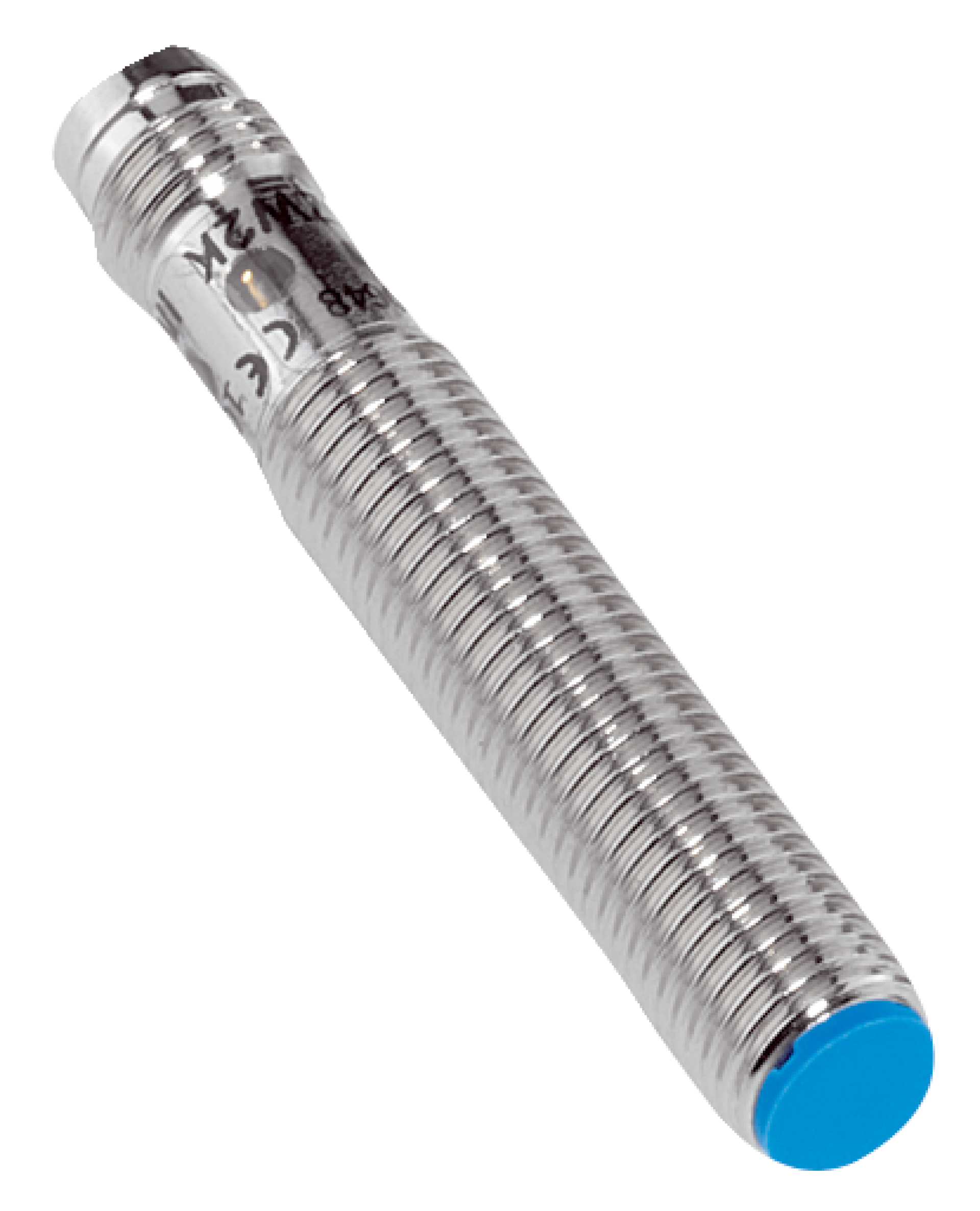

Inductive Proximity Sensor M8 | IP67 Rated | 5mm Sensing Range | 4000 Hz Switching Frequency | by SICK
The Inductive Proximity Sensor M8 is designed for reliable object detection in industrial automation, featuring a 5mm sensing range and a high switching frequency of 4000 Hz. With an IP67 rated enclosure, it ensures protection against dust and water, making it ideal for non-contact switching in manufacturing lines and conveyor systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Inductive Proximity Sensor M8, M8 Proximity Sensor, SICK IME08 Sensor, Metal Proximity Switch
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz, 1 mm
- Ambient operating temperature: +5 °C to +80 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread length: 34 mm
- Tightening torque max: ≤ 5 Nm
- Switching output: PNP, normally open (NO)
- Connection type: Connector M8, 3-pin
- Enclosure rating: IP67
- Dimensions (H x L x W): 50mm x 50mm x 8mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M8 x 1 thread size
- Sensing range of 5 mm with safe sensing range of 4.05 mm
- Non-flush installation type
- High switching frequency of 4,000 Hz
- PNP switching output with NO function
- Connector M8, 3-pin connection type
- IP67 rated enclosure for dust and water protection
- Limited temperature range operation
- Includes mounting nuts, steel, nickel-plated (2x)
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct wiring and mounting torque compliance.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact switching in machinery
- Metal detection in conveyor systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Non-contact sensing reduces mechanical wear and maintenance waste
- Durable nickel-plated brass housing extends product life
- Complies with China RoHS for hazardous substance reduction
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME08-05NPSZT0SS01 inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
