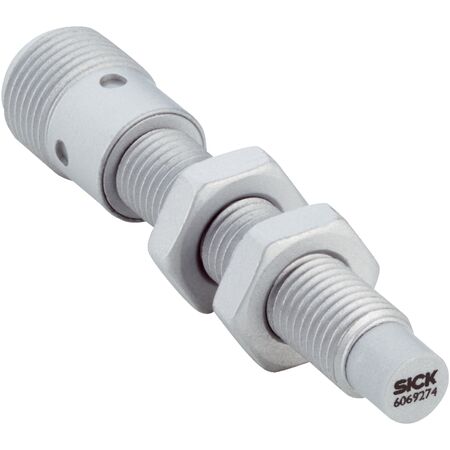

Inductive Proximity Sensor M8 | IP68 Enclosure | 6mm Sensing Range | PNP Output | by SICK
The Inductive Proximity Sensor M8 is designed for reliable object detection in industrial automation, featuring a robust IP68 enclosure and a sensing range of 6 mm. With a PNP normally open output and a high switching frequency of 1,000 Hz, this sensor is perfect for challenging applications like welding and non-flush mounting in manufacturing processes. Built with a durable stainless steel housing, it ensures longevity and minimal maintenance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Switching output: PNP, normally open
- Switching frequency: 1,000 Hz
- Connection type: Male connector M12, 4-pin
- Continuous current: ≤ 150 mA
- No load current: ≤ 15 mA
- Voltage drop: ≤ 1.8 V
- Hysteresis: 3% to 15%
- Reproducibility: ≤ 2%
- Temperature drift: ≤ ±10%
- Magnetic field strength tolerance: ≤ 100 mT
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +70 °C
- Housing material: Stainless steel with PTFE coating
- Protection class: II
- Enclosure rating: IP68
- MTTFD: 139 years
- Mission time: 20 years
- Dimensions (H x L x W): 8mm x 57mm x 8mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M8 x 1 thread size
- Sensing range of 6 mm with safe sensing range of 4.8 mm
- Non-flush installation type with IP68 enclosure rating
- Switching frequency of 1,000 Hz with PNP normally open output
- Magnetic-field-resistant with triple sensing range
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Includes mounting nut and washers with PTFE coating
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Welding range and difficult application conditions
- Non-flush mounting sensing in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel and PTFE coated housing extends product life reducing waste
- Energy-efficient sensor operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IMR08-06NPSTC0S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
