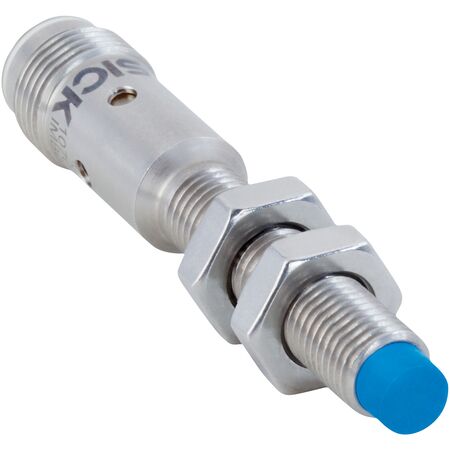

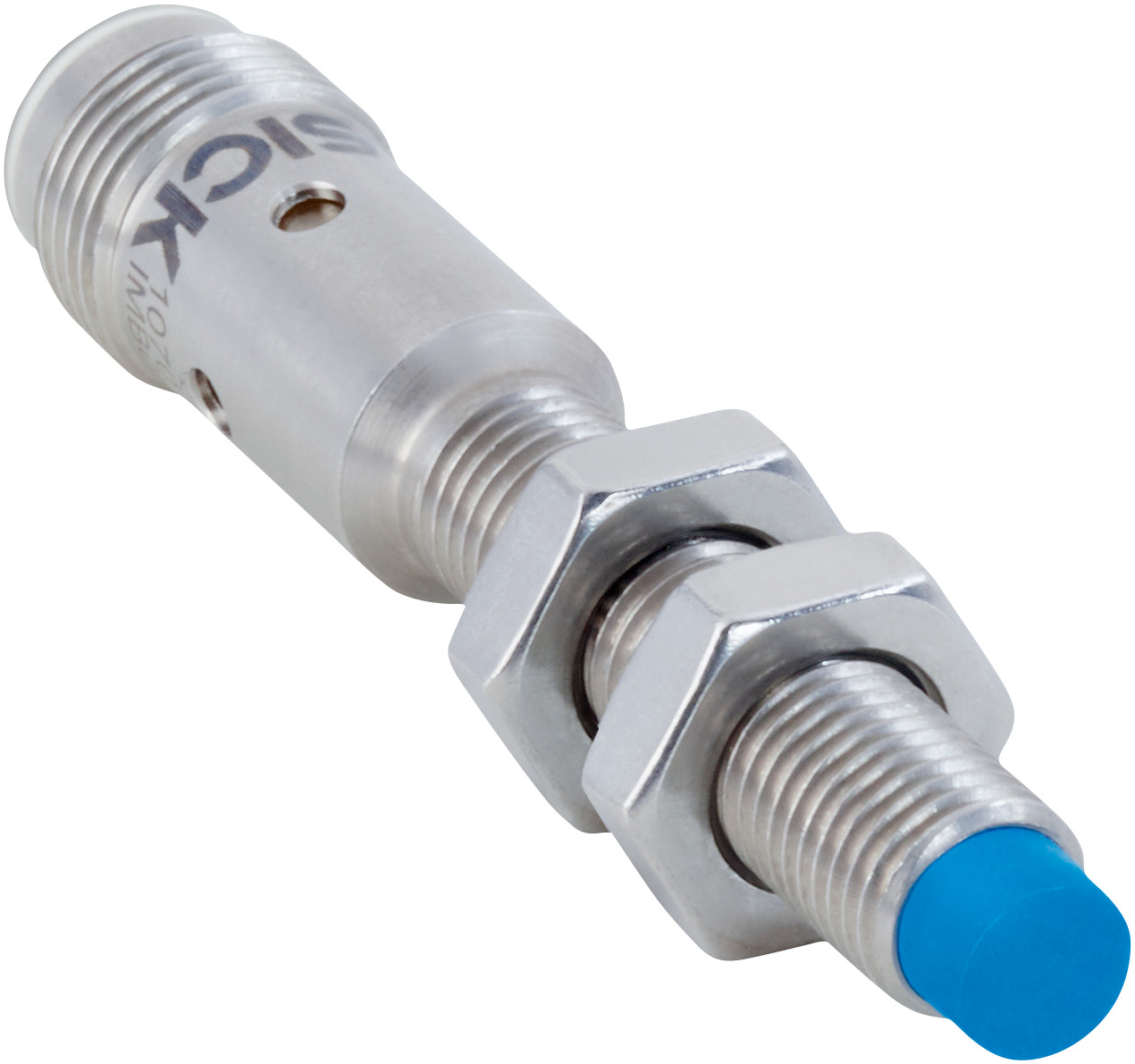

Inductive Proximity Sensor M8 | IP68 Rated | 8mm Sensing Range | NPN NC Output | by SICK
The Inductive Proximity Sensor M8 is designed for reliable object detection in industrial automation, featuring an 8mm sensing range and IP68 rated enclosure for high protection against dust and water. With a robust nickel-plated brass housing and a non-flush installation type, this sensor is perfect for environments with coolants and lubricants, ensuring durability and efficiency in machine safety and process control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 150 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 50 mA
- Switching frequency: 25 Hz
- Connection type: Male connector M12, 4-pin
- Protection class: III
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Housing material: Nickel-plated brass
- Sensing face material: Plastic, LCP
- Thread size: M8 x 1
- Enclosure rating: IP68
- Dimensions (H x L x W): 8mm x 67mm x 8mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M8 x 1 thread size
- Sensing range of 8 mm with safe sensing range of 6.48 mm
- Non-flush installation type
- Switching frequency of 25 Hz
- NPN switching output with NC function
- DC 3-wire electrical wiring
- IP68 rated enclosure for high protection
- Quadruple sensing range and resistant against coolant lubricants
- Visual adjustment indicator with yellow and green LEDs
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Operating temperature range from -25 °C to +75 °C
- Housing made of nickel-plated brass with plastic sensing face
- Short-circuit and power-up pulse protection
- Service interface via IO-Link for SICK Service
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards. Proper mounting and connection to compatible control systems are required.
Applications
- Industrial automation for object detection
- Zones with coolants and lubricants
- Machine safety and process control
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable nickel-plated brass housing reduces replacement frequency and waste
- Energy-efficient operation with low current consumption
- Resistant to harsh environments reducing environmental contamination risk
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK IMX08-08NNOZC0S inductive sensor is available for immediate purchase. Ideal for industrial automation and safety applications in harsh environments.
