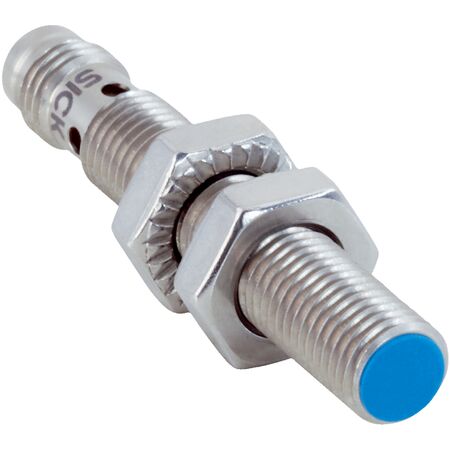

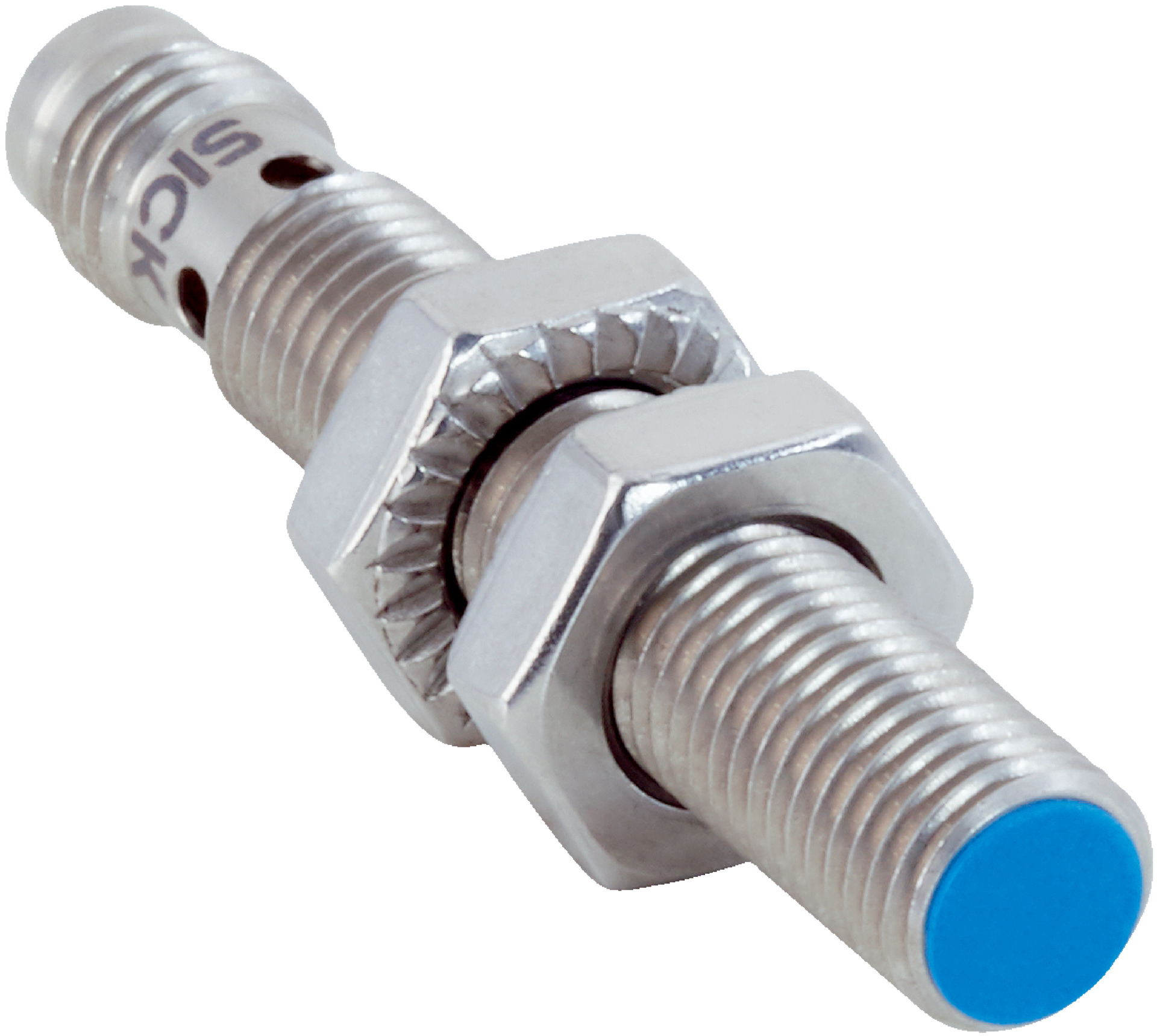

Inductive Proximity Sensor M8 | IP68 & IP69K Rated | 2mm Sensing Range | 4000Hz Switching Frequency | by SICK
Inductive proximity sensor M8 designed for industrial automation, featuring a 2mm sensing range and a high switching frequency of 4,000 Hz. With an IP68 and IP69K rated enclosure, this sensor is perfect for harsh environments, ensuring durability and reliability in applications involving coolants and lubricants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor M8 | IP68 & IP69K Rated | 2mm Sensing Range | 4000Hz Switching Frequency | by SICK
Brand: SICK
SKU: 1072591
Alternatively Known As: M8 Inductive Proximity Sensor, IMB08 Proximity Sensor, NPN Inductive Sensor, Flush Mount Proximity Sensor
Technical Specifications
- Housing: Standard design, stainless steel V2A (DIN 1.4305 / AISI 303)
- Thread size: M8 x 1
- Diameter: 8 mm
- Sensing range Sn: 2 mm
- Safe sensing range Sa: 1.62 mm
- Installation type: Flush
- Switching frequency: 4,000 Hz
- Connection type: Connector M8, 3-pin
- Switching output: NPN, normally closed (NC)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP68, IP69K
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 100 g / 11 ms / 1000 cycles; 150 g / 1 million cycles; 10 Hz to 55 Hz, 1 mm / 55 Hz to 500 Hz / 15 g
- Ambient operating temperature: -40 °C to +100 °C
- Sensing face material: Plastic, LCP
- Housing length: 50 mm
- Thread length: 38 mm
- Tightening torque max: Typically 7 Nm to 14 Nm
- Protection class: III
- UL File No.: E181493
- Dimensions (H x L x W): 8mm x 50mm x 8mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M8 x 1 thread size
- Sensing range of 2 mm with safe sensing range of 1.62 mm
- Flush installation type
- High switching frequency of 4,000 Hz
- NPN normally closed output with DC 3-wire electrical wiring
- IP68 and IP69K rated enclosure for high protection
- Resistant against coolant lubricants and temperature resistant
- Visual adjustment indicator for easy setup
- Shock and vibration resistant with high durability
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Mobile machines operating in harsh environments
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensors
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- High resistance to harsh environments minimizes sensor failure and electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IMB08-02BNOVT0S Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and harsh environment applications.
