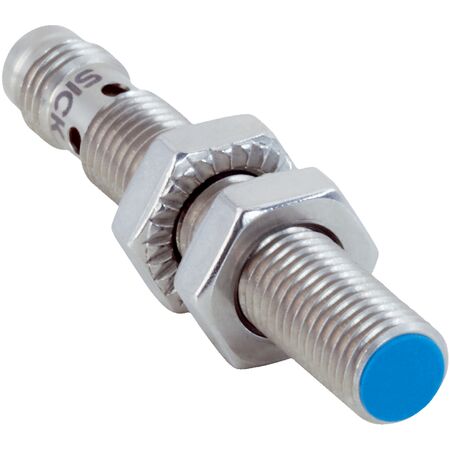

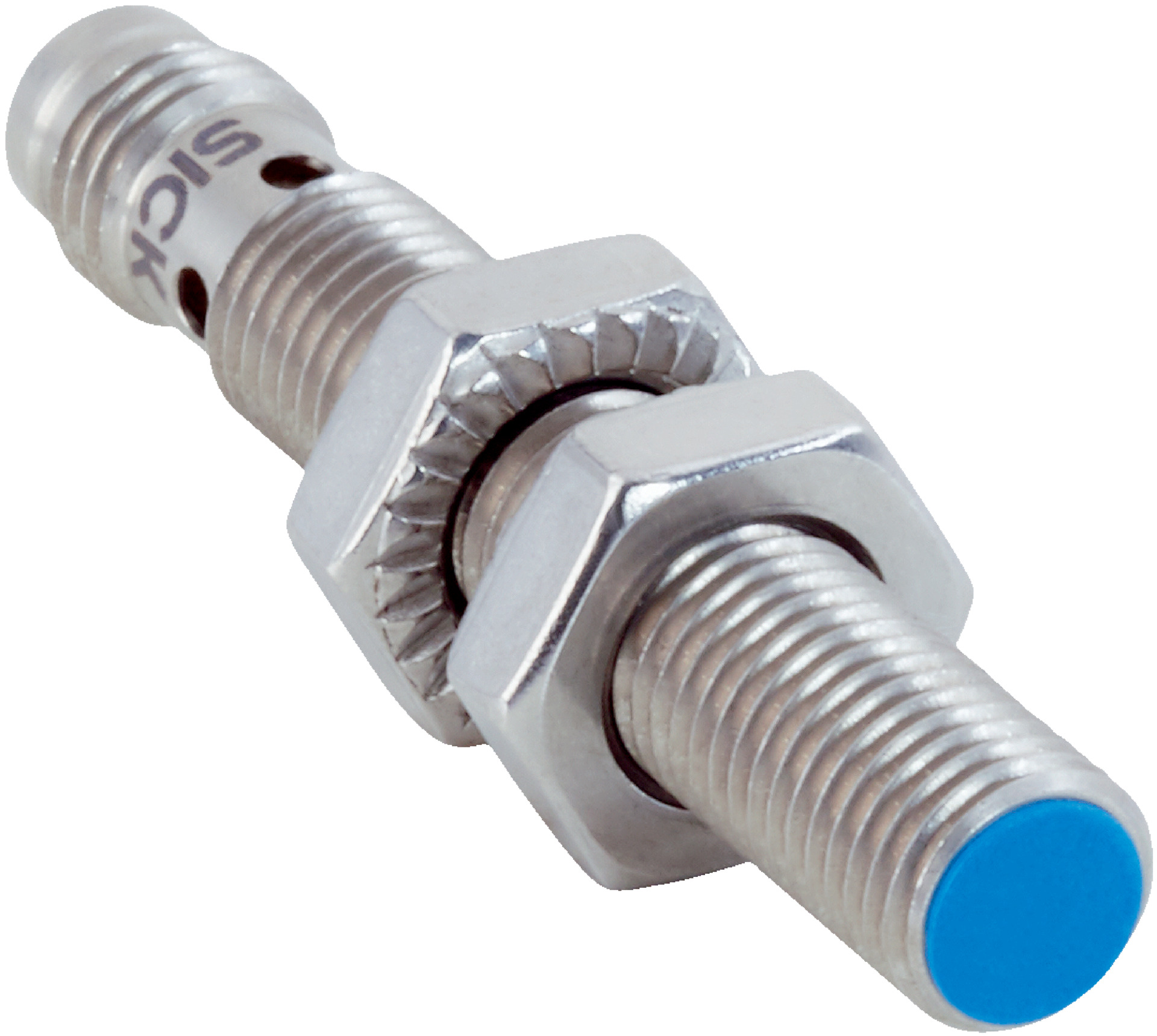

Inductive Proximity Sensor M8 | IP68 & IP69K Rated | 4,000 Hz Switching Frequency | by SICK
Inductive proximity sensor M8 designed for industrial automation, featuring an IP68 and IP69K rating for dust and water protection. With a high switching frequency of 4,000 Hz and a sensing range of 2 mm, it's perfect for mobile machines operating in harsh environments. Built for durability, this sensor is resistant to coolants and lubricants, ensuring reliable performance in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor M8 | IP68 & IP69K Rated | 4,000 Hz Switching Frequency | by SICK
Brand: SICK
SKU: 1072589
Alternatively Known As: M8 Inductive Proximity Sensor, IMB08 Proximity Sensor, SICK Proximity Sensor M8
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit and power-up pulse protection included
- Shock resistance: 100 g / 11 ms / 1000 cycles; 150 g / 1 million cycles
- Vibration resistance: 10 Hz to 55 Hz, 1 mm; 55 Hz to 500 Hz, 15 g
- Ambient operating temperature: -40 °C to +100 °C
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic, LCP
- Protection class: III
- Switching output: PNP, NC function
- Connection type: Connector M8, 3-pin
- Dimensions (H x L x W): 8mm x 50mm x 8mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M8 x 1 thread size
- Sensing range of 2 mm with safe sensing range of 1.62 mm
- Flush installation type
- High switching frequency of 4,000 Hz
- PNP switching output with NC function
- Connector M8, 3-pin connection type
- IP68 and IP69K rated for protection against dust and water
- Resistant against coolant lubricants and temperature resistant
- Visual adjustment indicator for easy setup
- Shock and vibration resistant with high durability
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Mobile machines in zones with coolants and lubricants
- Difficult application conditions requiring robust sensors
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- High resistance to harsh environments minimizes environmental contamination risks
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IMB08-02BPOVT0S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and mobile machinery applications.
