Inductive Proximity Sensor M8 | IP68 & IP69K Rated | 4mm Sensing Range | 4000 Hz Switching Frequency | by SICK
Inductive proximity sensors are essential for industrial automation, featuring a robust M8 design with a 4mm sensing range and IP68/IP69K ratings for dust and water protection. Ideal for mobile machines in harsh environments, these sensors ensure reliable object detection and are built to withstand coolant lubricants, making them perfect for challenging applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

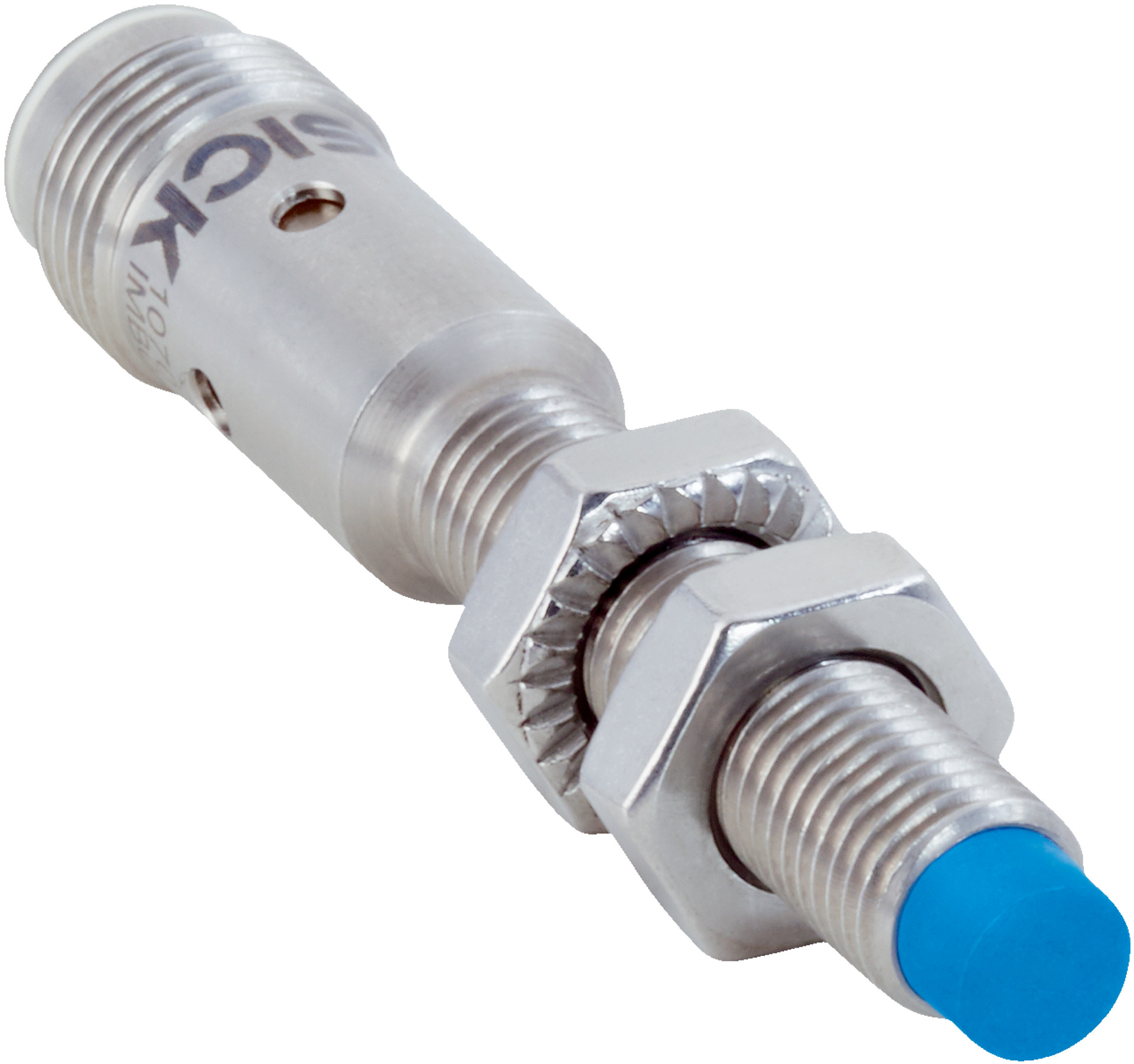

Product Name/Title: Inductive Proximity Sensor M8 | IP68 & IP69K Rated | 4mm Sensing Range | 4000 Hz Switching Frequency | by SICK
Brand: SICK
SKU: 1070170
Alternatively Known As: Inductive Proximity Sensor M8, M8 Inductive Sensor, Proximity Switch M8, SICK Proximity Sensor
Technical Specifications
- Housing: Standard design, stainless steel V2A, DIN 1.4305 / AISI 303
- Thread size: M8 x 1
- Diameter: 8 mm
- Sensing range Sn: 4 mm
- Safe sensing range Sa: 3.24 mm
- Installation type: Non-flush
- Switching frequency: 4000 Hz
- Connection type: Male connector M12, 4-pin
- Switching output: PNP, Normally Open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP68, IP69K
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit and power-up pulse protection included
- Shock resistance: 100 g / 11 ms / 1000 cycles
- Vibration resistance: 150 g / 1 million cycles
- Ambient operating temperature: -40 °C to +100 °C
- Communication interface: IO-Link V1.0, COM2 (38.4 kBaud)
- Process data length: 1 Byte
- Dimensions (H x L x W): 8mm x 60mm x 8mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M8 x 1 thread size
- Sensing range of 4 mm with safe sensing range of 3.24 mm
- Non-flush installation type
- High switching frequency of 4000 Hz
- PNP switching output with NO function
- DC 3-wire electrical wiring
- IP68 and IP69K rated for protection against dust and high-pressure water
- Resistant against coolant lubricants and temperature resistant
- Visual adjustment indicator for easy setup
- Shock and vibration resistant up to 100 g and 150 g respectively
- Communication interface IO-Link V1.0 with COM2 (38.4 kBaud)
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct wiring and mounting torque adherence (typical 7 Nm to 14 Nm).
Applications
- Industrial automation for object detection
- Mobile machines in harsh environments
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensors
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient operation with low power consumption
- Resistant to harsh environments reducing environmental contamination risk
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now

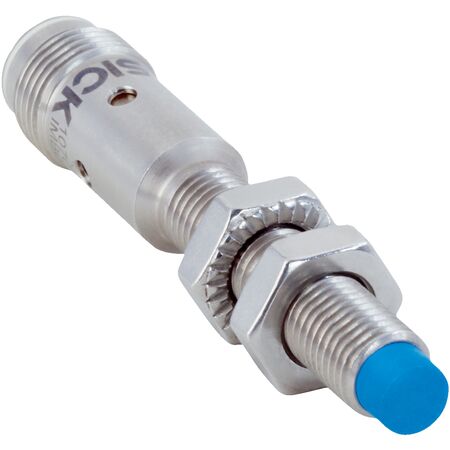

The SICK IMB08-04NPSVC0S Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and mobile machinery applications.
