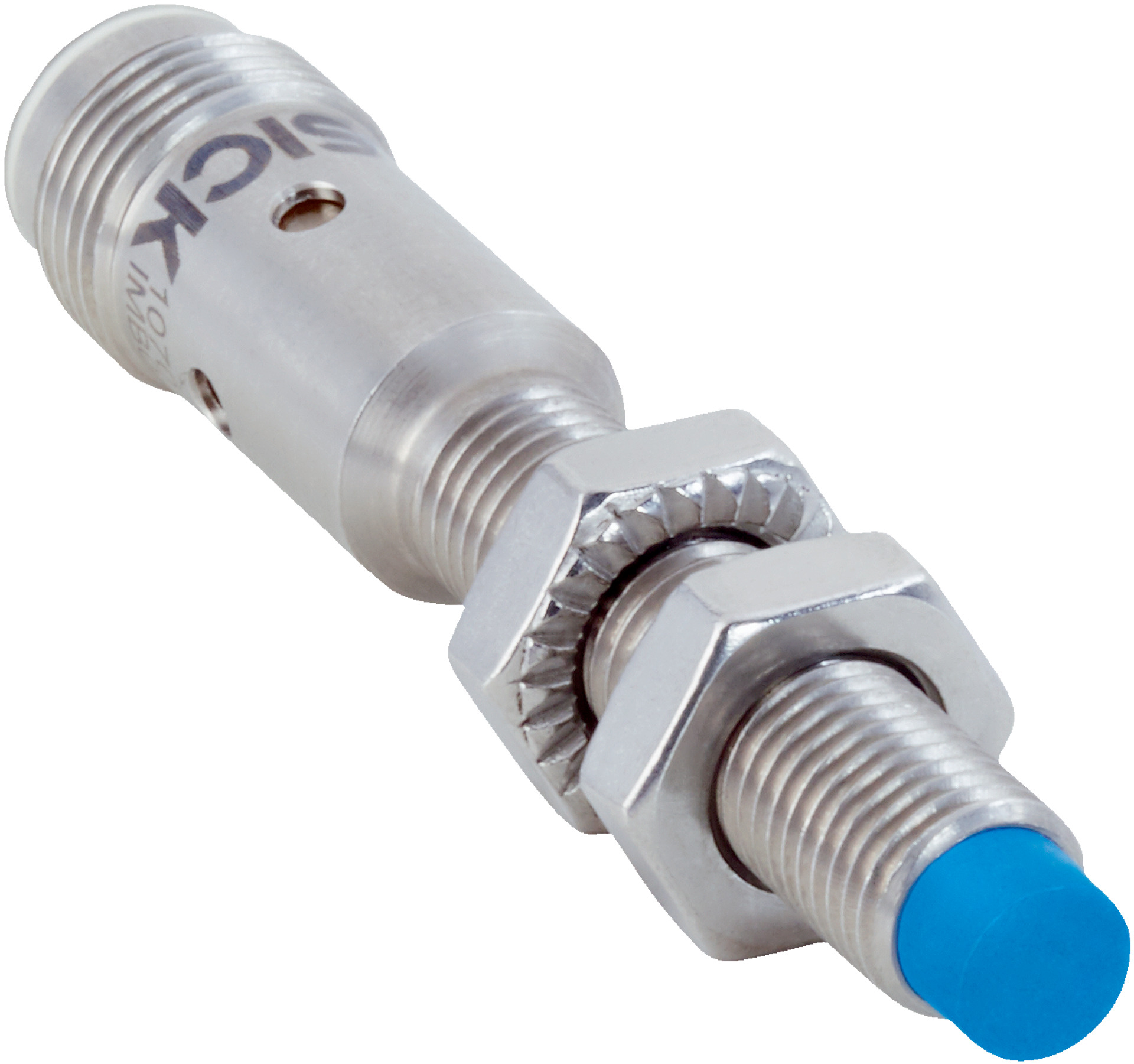

Inductive Proximity Sensor M8 | IP68 & IP69K Rated | 4mm Sensing Range | 4000Hz Switching Frequency | by SICK
Inductive proximity sensor M8 designed for industrial automation, featuring a 4mm sensing range and IP68/IP69K ratings for superior protection against dust and water. Ideal for harsh environments, this sensor offers a high switching frequency of 4000Hz and is built to withstand shock and vibration, ensuring reliable operation in challenging conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor M8 | IP68 & IP69K Rated | 4mm Sensing Range | 4000Hz Switching Frequency | by SICK
Brand: SICK
SKU: 1072681
Alternatively Known As: M8 Inductive Proximity Sensor, Non-flush Proximity Sensor, NPN NO Proximity Sensor, SICK Proximity Sensor M8
Technical Specifications
- Housing: Standard design, stainless steel V2A (DIN 1.4305 / AISI 303)
- Thread size: M8 x 1
- Diameter: 8 mm
- Sensing range Sn: 4 mm
- Safe sensing range Sa: 3.24 mm
- Installation type: Non-flush
- Switching frequency: 4,000 Hz
- Connection type: Male connector M12, 4-pin
- Switching output: NPN, normally open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP68, IP69K
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock resistance: 100 g / 11 ms / 1000 cycles; 150 g / 1 million cycles
- Vibration resistance: 10 Hz to 55 Hz, 1 mm; 55 Hz to 500 Hz, 15 g
- Ambient operating temperature: -40 °C to +100 °C
- Housing length: 60 mm
- Thread length: 28 mm
- Tightening torque max: Typical 7 Nm to 14 Nm
- Protection class: III
- UL File No.: E181493
- Dimensions (H x L x W): 8mm x 60mm x 8mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M8 x 1 thread size
- Sensing range of 4 mm with safe sensing range of 3.24 mm
- Non-flush installation type
- Switching frequency up to 4,000 Hz
- NPN normally open (NO) output with DC 3-wire electrical wiring
- IP68 and IP69K rated for high protection against dust and water
- Resistant against coolant lubricants and temperature resistant
- Visual adjustment indicator for easy setup
- Shock and vibration resistant for reliable operation
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting, wiring, and compliance with safety standards.
Applications
- Industrial automation for object detection
- Mobile machines operating in harsh environments
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensors
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- High resistance to harsh environments minimizes sensor failure and electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IMB08-04NNSVC0S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and harsh environment applications.
