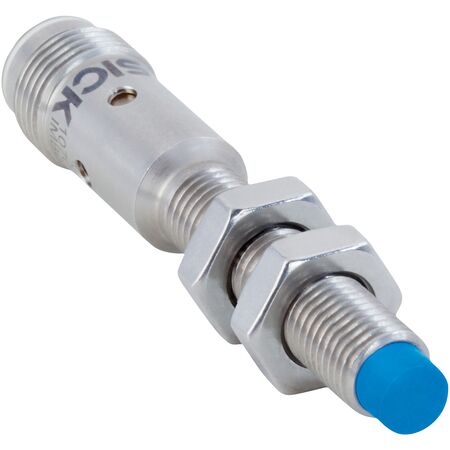

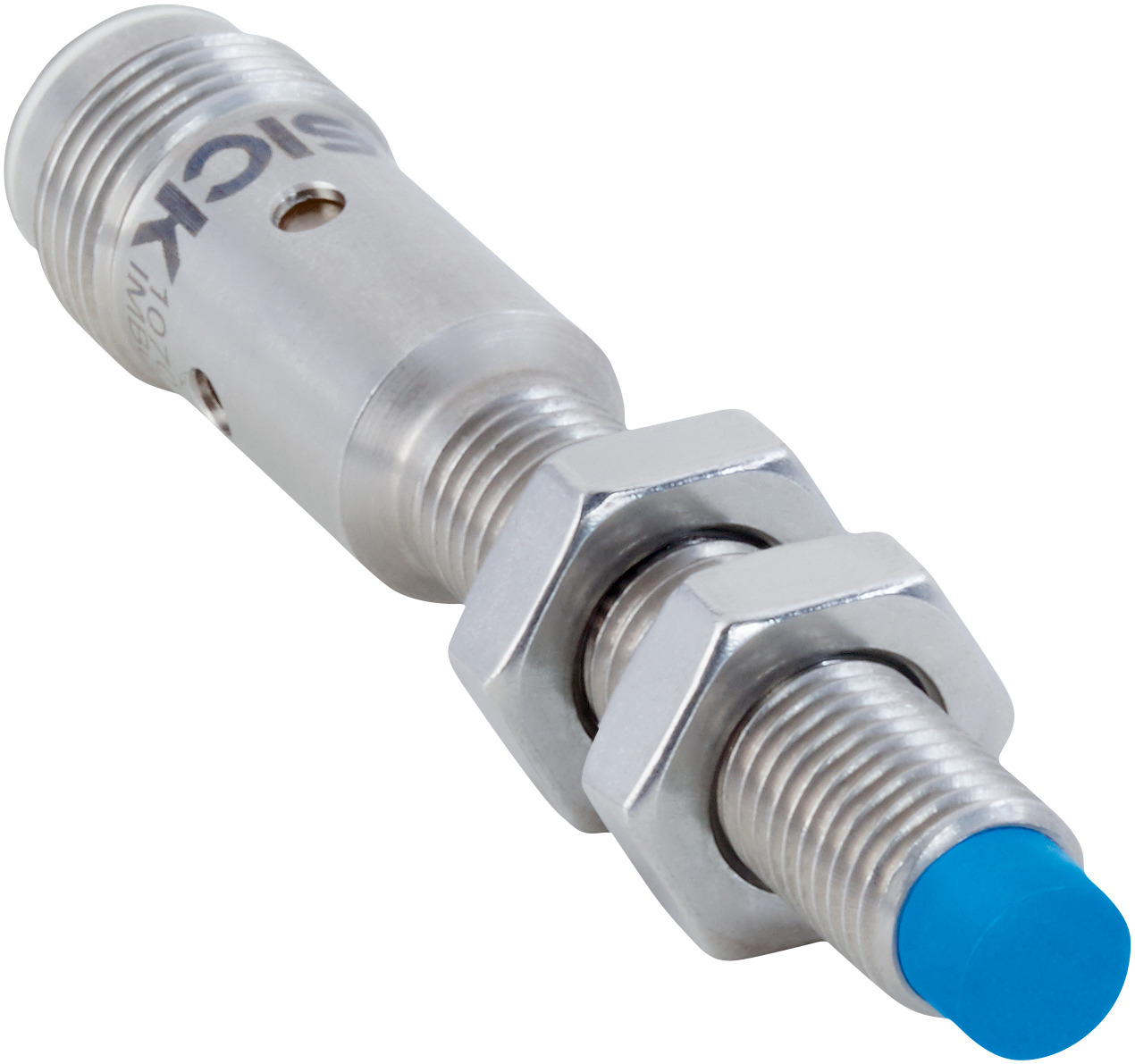

Inductive Proximity Sensor M8 | IP68 Rated | Nickel-Plated Brass Housing | 8mm Sensing Range | by SICK
The Inductive Proximity Sensor M8 is designed for reliable object detection in industrial automation, featuring an IP68 rated enclosure and a sensing range of 8mm. Built with a durable nickel-plated brass housing, it withstands harsh environments, making it ideal for applications involving coolants and lubricants. With a switching frequency of 25 Hz and PNP normally closed output, this sensor ensures precise performance in demanding conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 150 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 50 mA
- Switching output: PNP, normally closed (NC)
- Switching frequency: 25 Hz
- Connection type: Male connector M12, 4-pin
- Enclosure rating: IP68
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +75 °C
- Housing material: Nickel-plated brass
- Sensing face material: Plastic, LCP
- Protection class: III
- Short-circuit and power-up pulse protection included
- Service interface: IO-Link (SICK service only)
- Dimensions (H x L x W): 8mm x 67mm x 8mm
- Weight: 0.1 kg
Key Features
- Standard design housing with nickel-plated brass material
- Thread size M8 x 1 with 8 mm diameter sensing face
- Non-flush installation type
- Sensing range Sn of 8 mm and safe sensing range Sa of 6.48 mm
- Switching frequency of 25 Hz with PNP normally closed output
- Male connector M12, 4-pin connection type
- IP68 rated enclosure for high protection
- Quadruple sensing range and resistant against coolant lubricants
- Visual adjustment indicator with yellow and green LEDs
- Short-circuit and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature from -25 °C to +75 °C
- Service interface IO-Link for SICK service use
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Zones with coolants and lubricants
- Non-flush mounting sensing applications
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable nickel-plated brass housing extends product life reducing waste
- Resistant to coolant lubricants minimizing sensor replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK IMX08-08NPOZC0S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and sensing in harsh environments.
