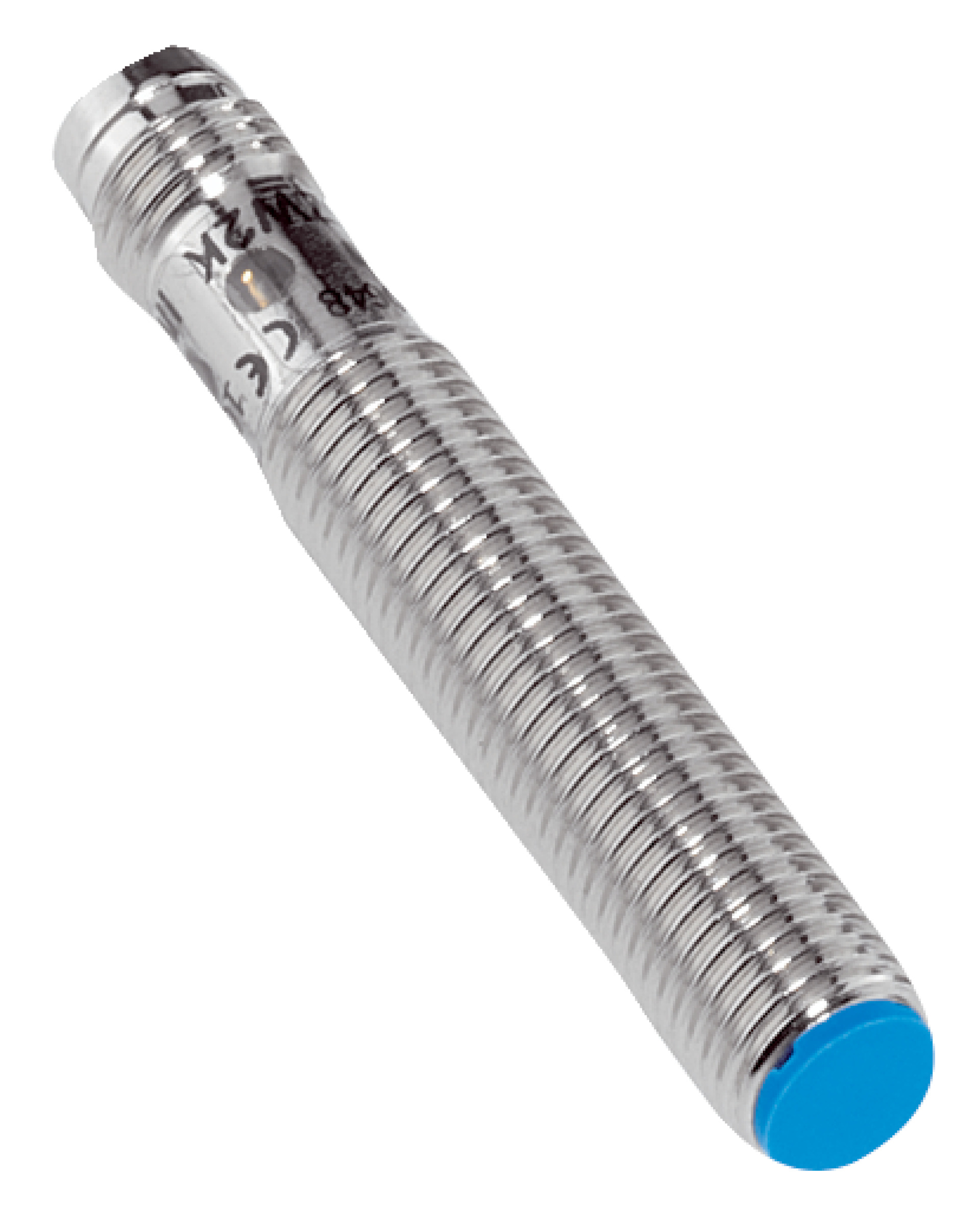

Inductive Proximity Sensor M8 | NPN Output | IP67 Rated | Quasi-Flush Design | by SICK
The Inductive Proximity Sensor M8 is designed for reliable object detection in industrial automation, featuring an NPN switching output and an IP67 rated enclosure for dust and water protection. With a robust brass housing and a sensing range of 3 mm, this sensor is perfect for position sensing in manufacturing lines and machine safety applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +75 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread length: 34 mm
- Tightening torque max: ≤ 5 Nm
- Switching output: NPN, normally closed (NC)
- Connection type: Connector M8, 3-pin
- Enclosure rating: IP67
- Dimensions (H x L x W): 50mm x 50mm x 8mm
- Weight: 0.1 kg
Key Features
- Standard design housing with brass, nickel-plated material
- Thread size M8 x 1 with 3 mm sensing range
- Quasi-flush installation type
- Switching frequency up to 1,000 Hz
- NPN switching output with NC function
- Connector M8, 3-pin connection type
- IP67 rated enclosure for dust and water protection
- Triple sensing range feature
- Short-circuit and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz)
Professional Installation Requirements
- Installation should be performed by qualified personnel following manufacturer guidelines to ensure proper mounting and electrical connection.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Machine safety and control systems
- Robotics and conveyor systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable brass housing extends product life reducing waste
- Low power consumption with DC 3-wire electrical wiring
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

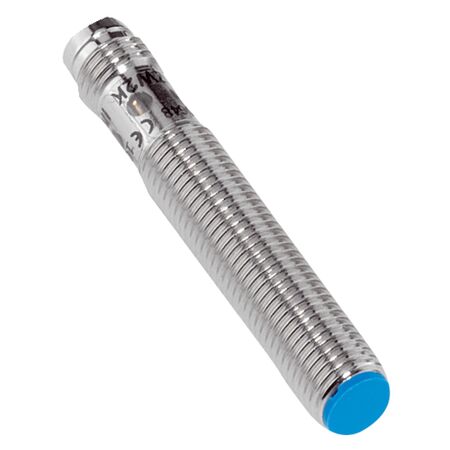

The SICK IME08-03BNOZT0S inductive sensor is available for immediate purchase, ideal for industrial automation and safety applications.
