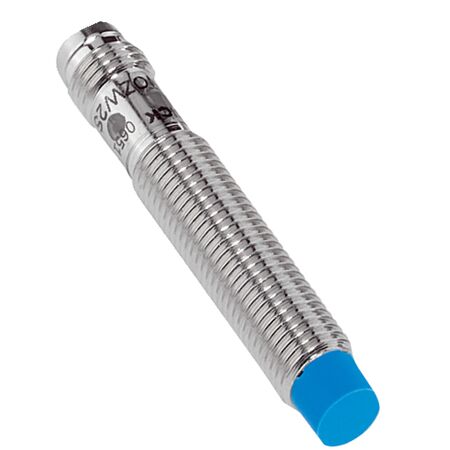

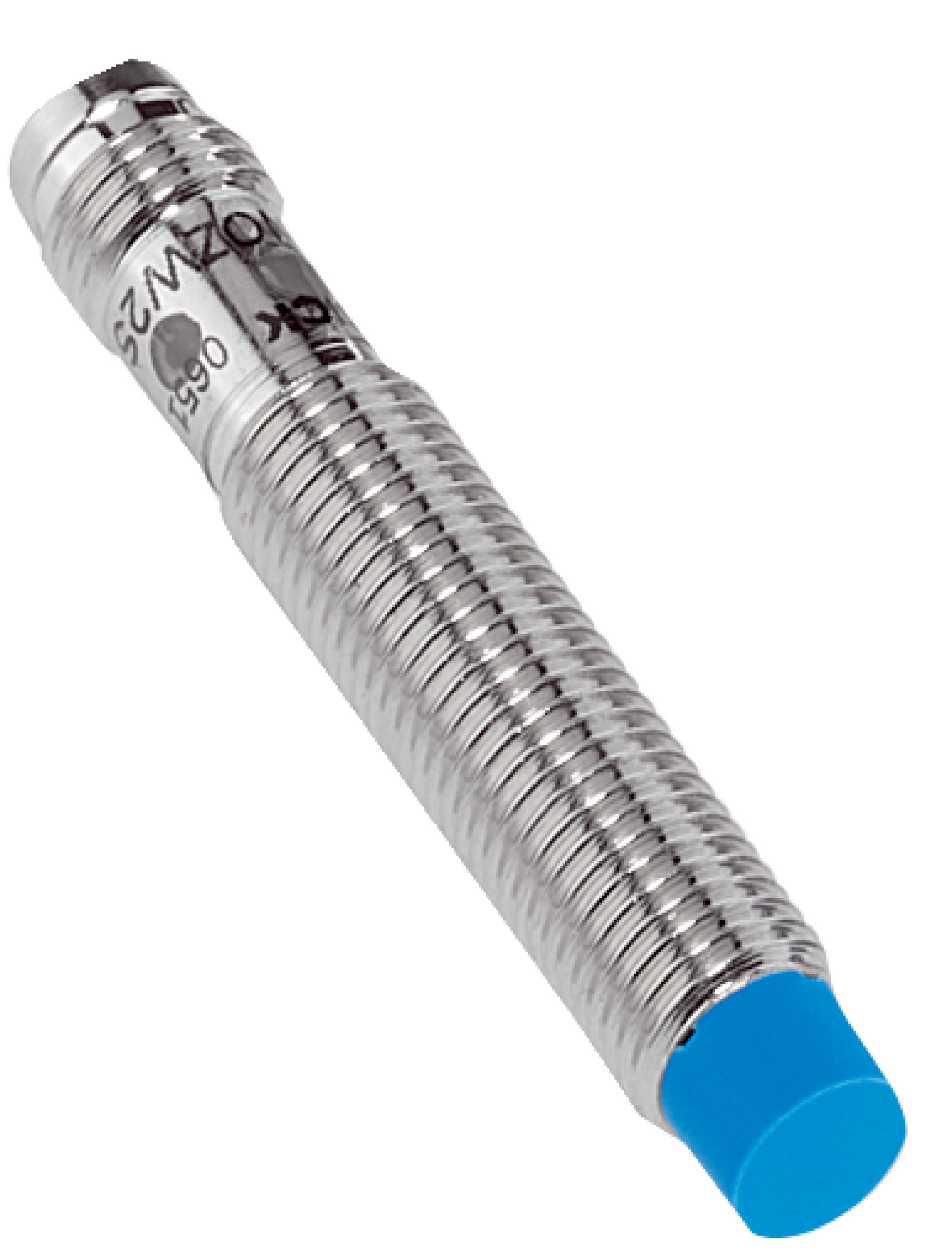

Inductive Proximity Sensor M8 | NPN NC Output | IP67 Rated | 4mm Sensing Range | by SICK
The Inductive Proximity Sensor M8 is designed for reliable object detection in industrial automation, featuring a sensing range of 4 mm and an IP67 enclosure rating for dust and water protection. With a robust brass housing and a switching frequency of up to 4,000 Hz, this sensor is perfect for harsh environments and non-contact switching applications, ensuring durability and efficiency in manufacturing lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor M8 | NPN NC Output | IP67 Rated | 4mm Sensing Range | by SICK
Brand: SICK
SKU: 1040898
Alternatively Known As: Inductive Proximity Sensor M8, NPN NC Inductive Sensor, SICK Proximity Switch, M8 Inductive Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Switching output: NPN normally closed
- Switching frequency: 4,000 Hz
- Connection type: Connector M8, 3-pin
- Enclosure rating: IP67
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz, 1 mm
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Tightening torque max: ≤ 5 Nm
- MTTFD: 1,735 years
- Dimensions (H x L x W): 50mm x 8mm x 8mm
- Weight: 0.1 kg
Key Features
- Standard design housing with brass, nickel-plated material
- M8 x 1 thread size with 8 mm diameter
- Non-flush installation type
- Sensing range of 4 mm with safe sensing range of 3.24 mm
- Switching frequency up to 4,000 Hz
- NPN normally closed (NC) output with DC 3-wire electrical wiring
- Connector M8, 3-pin connection type
- Enclosure rating IP67 for dust and water protection
- Short-circuit and power-up pulse protection included
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz, 1 mm)
- Operating temperature range from -25 °C to +75 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensor wiring and mounting to ensure proper function and safety.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Non-contact switching in harsh environments
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable brass housing reduces replacement frequency and waste
- Energy-efficient operation with low power consumption
- Compliant with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME08-04NNOZT0S inductive sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
