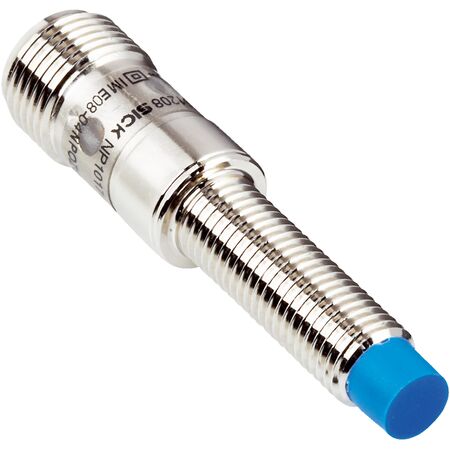

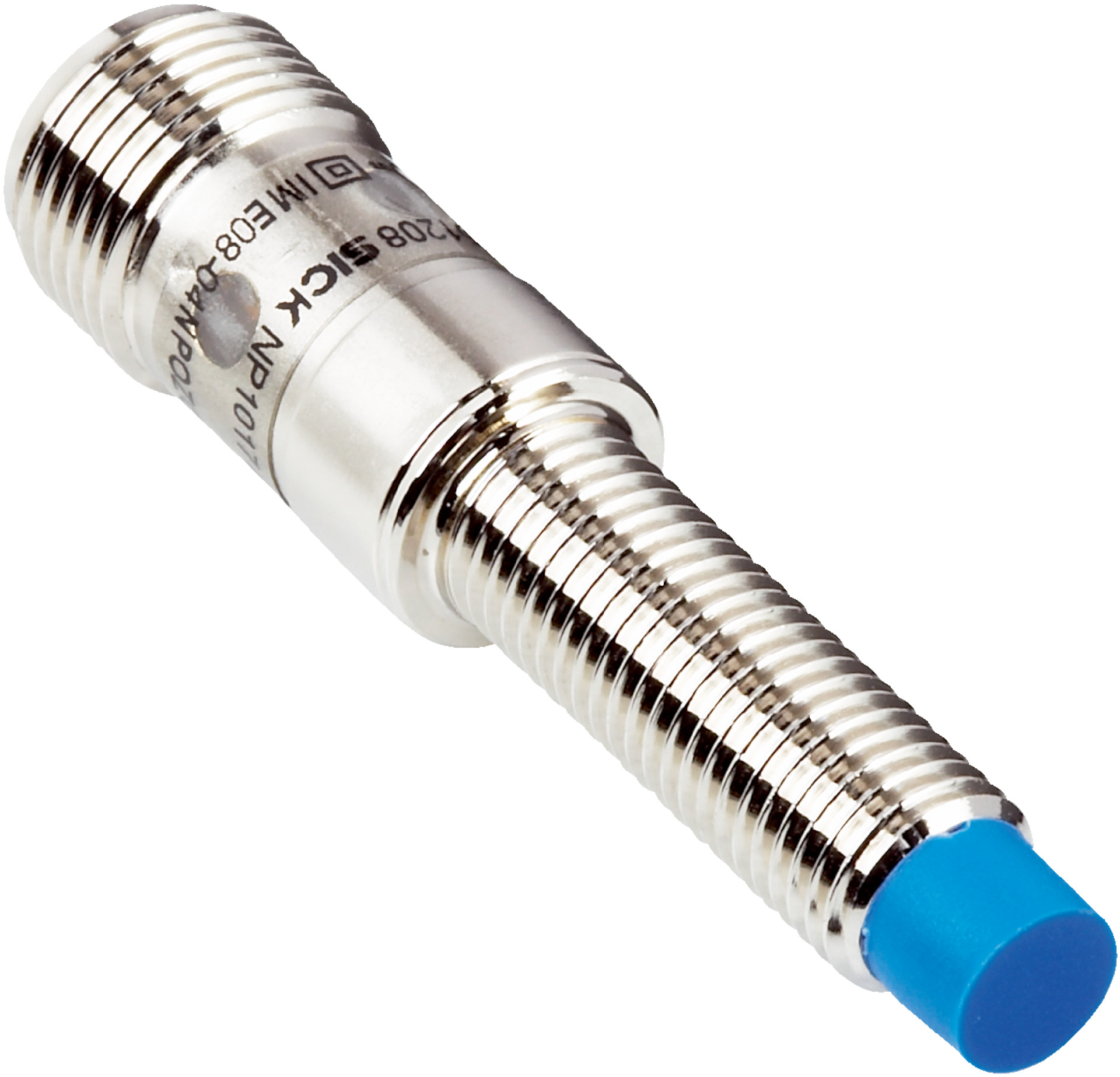

Inductive Proximity Sensor M8 | PNP NC Output | IP67 Rated | 6mm Sensing Range | by SICK
The Inductive Proximity Sensor M8 is designed for reliable non-contact detection in industrial automation applications. With a PNP normally closed output and a sensing range of 6mm, this sensor operates at a switching frequency of up to 500 Hz. Its robust IP67 rated enclosure ensures protection against dust and water, making it ideal for manufacturing lines and safety systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Switching frequency: 500 Hz
- Switching output: PNP, normally closed (NC)
- Electrical wiring: DC 3-wire
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ±10%
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, 1 mm amplitude
- Connection type: Male connector M12, 4-pin
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Enclosure rating: IP67
- Tightening torque max: ≤ 5 Nm
- MTTFD: 1,735 years
- Dimensions (H x L x W): 8mm x 52mm x 8mm
- Weight: 0.1 kg
Key Features
- Standard design housing with brass, nickel-plated material
- M8 x 1 thread size with 6 mm sensing range
- Non-flush installation type with triple sensing range
- Switching frequency up to 500 Hz with PNP normally closed output
- Male connector M12, 4-pin connection
- IP67 rated enclosure for dust and water protection
- Short-circuit and power-up pulse protection included
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz)
- Wide operating temperature range from -25 °C to +75 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensor wiring and safety standards to ensure proper connection and compliance with IP67 protection.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact switching in machinery
- Safety and control systems requiring reliable sensing
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable brass housing reduces replacement frequency and waste
- Energy-efficient operation with low current consumption
- Long service life minimizes environmental impact from disposal
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IME08-06NPOZC0S inductive sensor is available for immediate purchase, ideal for industrial automation and sensing applications requiring reliable non-contact detection.
