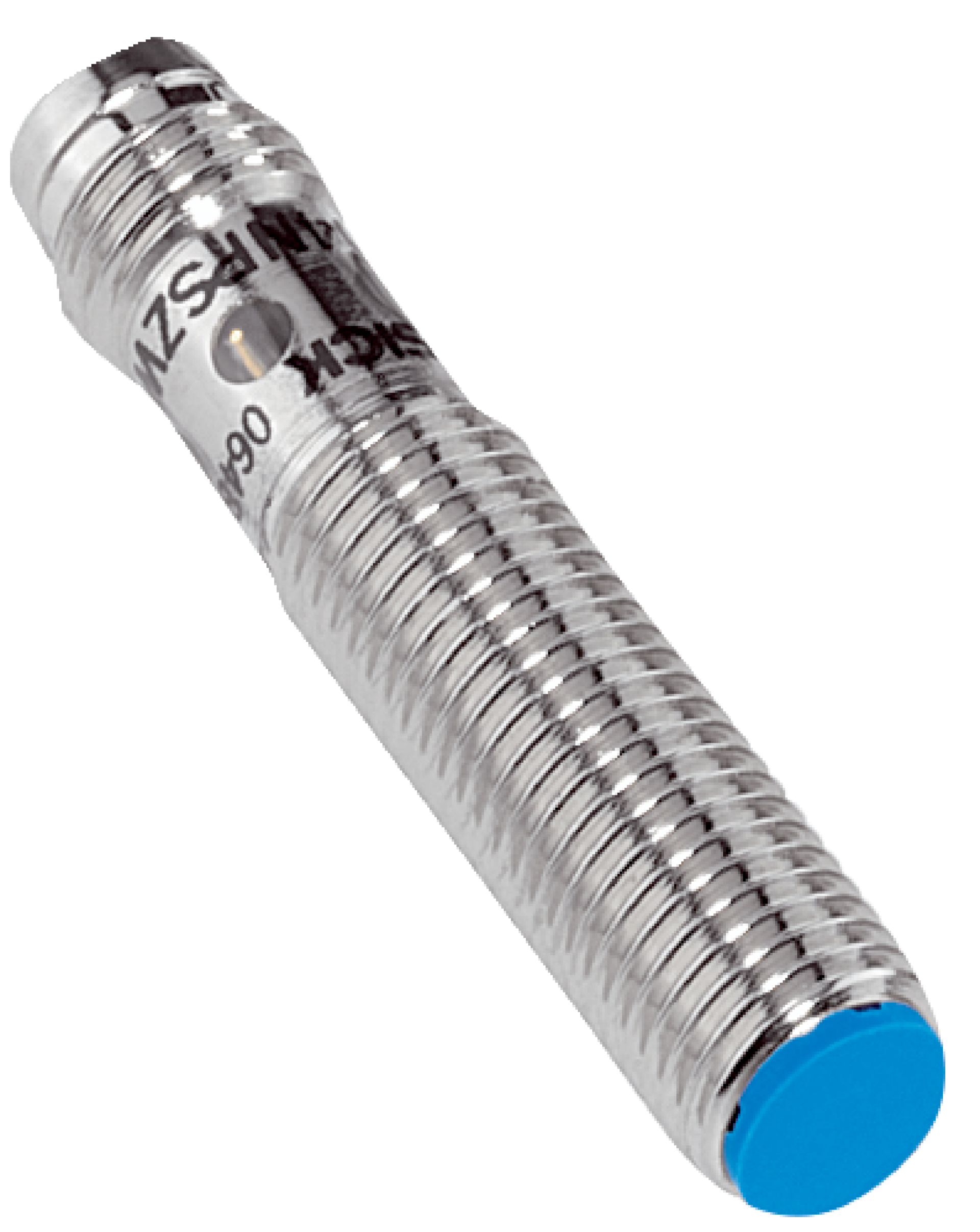

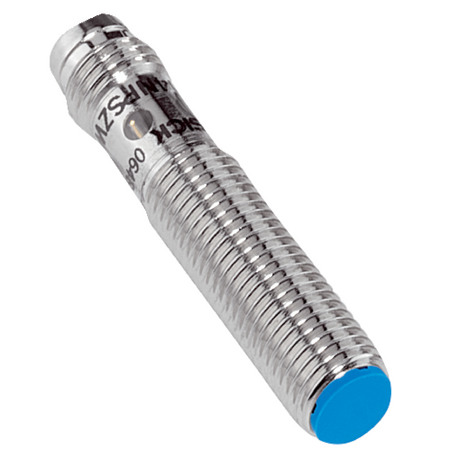

Inductive Proximity Sensor M8 | Short-Body Brass Housing | 2mm Sensing Range | IP67 Rated | by SICK
The Inductive Proximity Sensor M8 is designed for precise object detection in industrial automation, featuring a short-body brass housing and a sensing range of 2 mm. With a high switching frequency of 4,000 Hz and an IP67 rating for dust and water protection, this sensor is perfect for manufacturing lines and safety systems, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M8 Inductive Proximity Sensor, IME08 Proximity Sensor, SICK Proximity Sensor M8, Inductive Sensor M8
Technical Specifications
- Housing: Short-body, brass nickel-plated
- Thread size: M8 x 1
- Diameter: 8 mm
- Sensing range Sn: 2 mm
- Safe sensing range Sa: 1.62 mm
- Installation type: Flush
- Switching frequency: 4,000 Hz
- Connection type: Connector M8, 3-pin
- Switching output: PNP, Normally Open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +75 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic, PA 66
- Housing length: 41 mm
- Thread length: 25 mm
- Tightening torque max: ≤ 5 Nm
- Dimensions (H x L x W): 41mm x 41mm x 8mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M8 x 1 thread size
- Sensing range of 2 mm with safe sensing range of 1.62 mm
- Flush installation type
- High switching frequency of 4,000 Hz
- PNP switching output with NO function
- Connector M8, 3-pin connection type
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant up to 30 g
- Wide ambient operating temperature from -25 °C to +75 °C
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems in factories
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces waste and replacement frequency
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME08-02BPSZT0K Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
