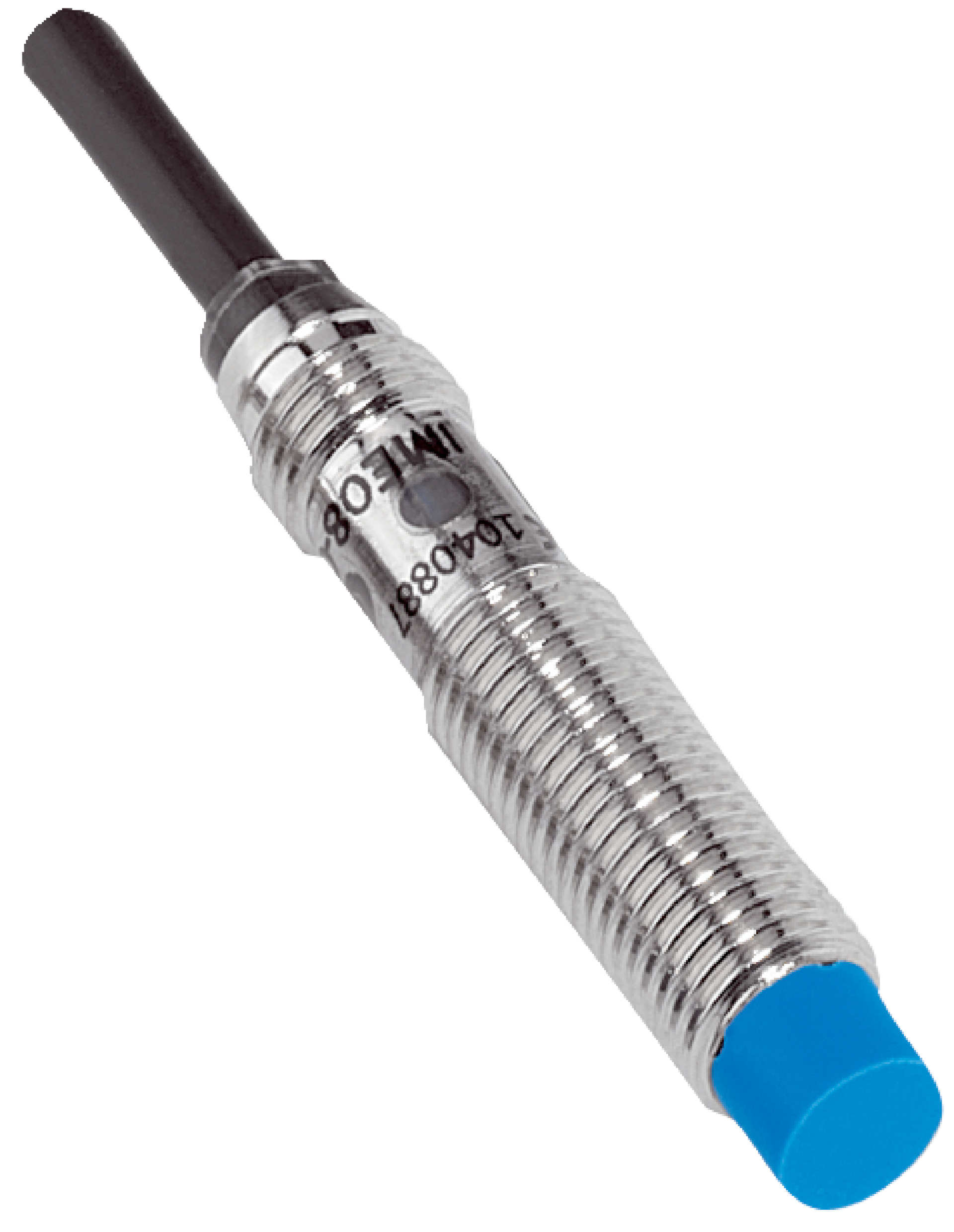

Inductive Proximity Sensor M8 | Short Body Design | IP67 Rated | 2.5mm Sensing Range | by SICK
The Inductive Proximity Sensor M8 is designed for reliable object detection in industrial automation, featuring a short body design and an IP67 rated enclosure for dust and water protection. With a sensing range of 2.5mm and a high switching frequency of 4,000 Hz, it's perfect for non-contact switching in machinery and position sensing in manufacturing lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor M8 | Short Body Design | IP67 Rated | 2.5mm Sensing Range | by SICK
Brand: SICK
SKU: 1045368
Alternatively Known As: Inductive Proximity Sensor M8, IME08 Proximity Switch, SICK M8 Sensor, Short Body Inductive Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable: PVC, 3-wire, 5 m length, diameter Ø 3.9 mm
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz
- Short-circuit and power-up pulse protection included
- Operating temperature range: -25 °C to +75 °C
- Switching output: PNP, normally open
- Dimensions (H x L x W): 8mm x 43mm x 8mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M8 x 1 thread size
- Non-flush installation type
- Sensing range of 2.5 mm with safe sensing range of 2.025 mm
- High switching frequency of 4,000 Hz
- PNP switching output with normally open function
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz)
- Includes two nickel-plated steel mounting nuts
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct wiring and mounting according to manufacturer guidelines.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact switching in machinery
- Metal detection in conveyor systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Non-contact sensing reduces mechanical wear and waste
- Durable IP67 housing extends product life, reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

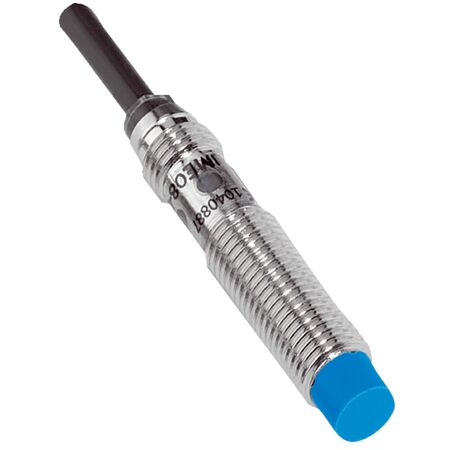

The SICK IME08-2N5PSZW5K inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
