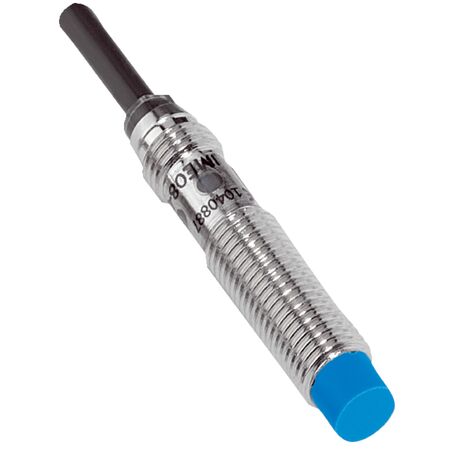

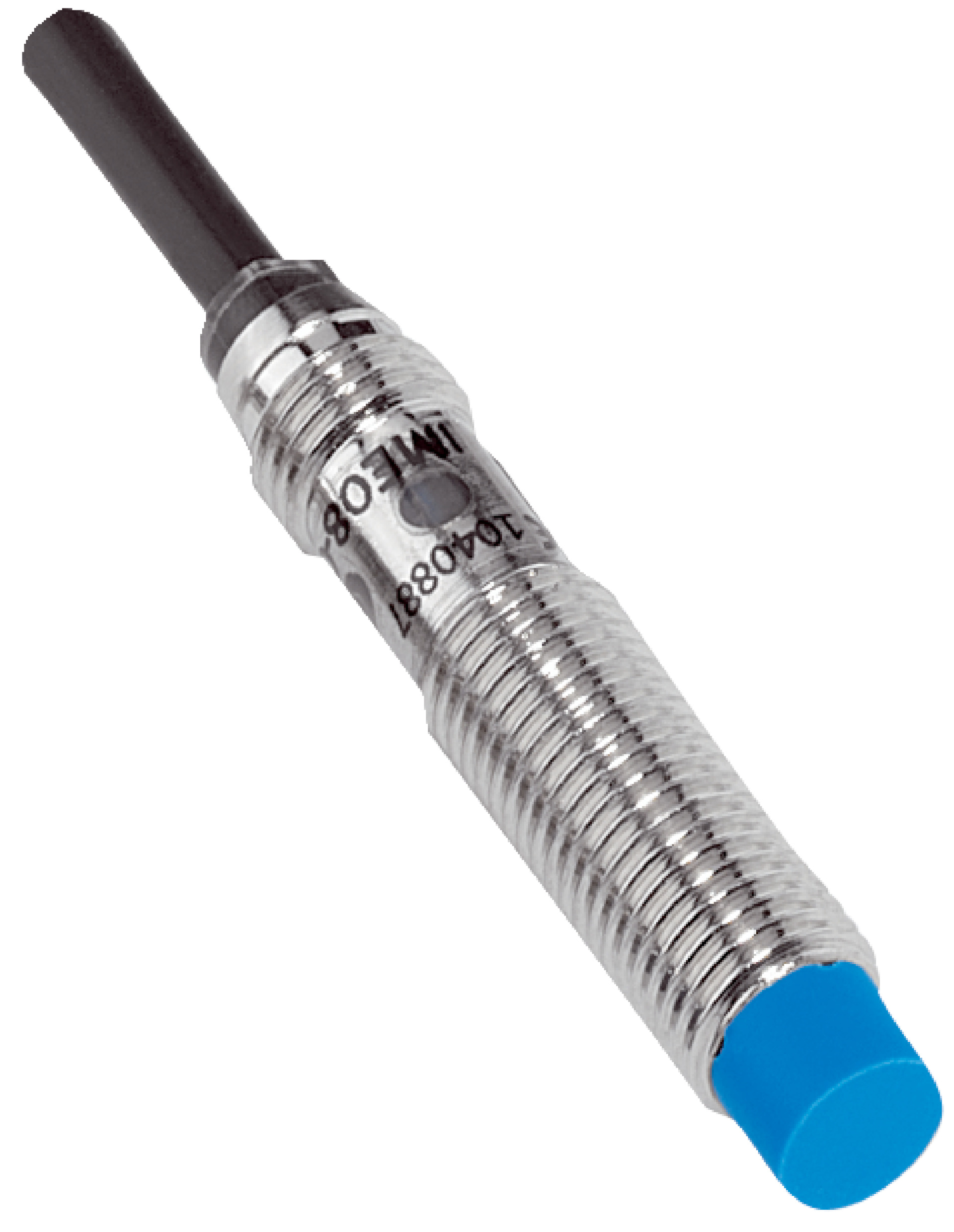

Inductive Proximity Sensor M8 | Short Body Design | IP67 Rated | High Switching Frequency | by SICK
The Inductive Proximity Sensor M8 is designed for reliable object detection in industrial automation, featuring a short body design and IP67 rating for dust and water protection. With a high switching frequency of 4,000 Hz and a sensing range of 2.5 mm, it's perfect for non-contact switching in machinery and position sensing in manufacturing lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor M8 | Short Body Design | IP67 Rated | High Switching Frequency | by SICK
Brand: SICK
SKU: 1040859
Alternatively Known As: Inductive Proximity Sensor M8, Short Body Proximity Sensor, PNP Proximity Sensor, Non-flush Inductive Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PVC, diameter Ø 3.9 mm
- Conductor size: 0.25 mm²
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread length: 21 mm
- Tightening torque max: ≤ 5 Nm
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz
- EMC compliant according to EN 60947-5-2
- Dimensions (H x L x W): 43mm x 43mm x 8mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M8 x 1 thread size
- Non-flush installation type
- Sensing range of 2.5 mm with safe sensing range of 2.025 mm
- High switching frequency of 4,000 Hz
- PNP switching output with NC output function
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant up to 30 g
- Cable connection, 3-wire, 2 m length
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper mounting torque and electrical connections according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact switching in machinery
- Metal detection in conveyor systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME08-2N5POZW2K inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
