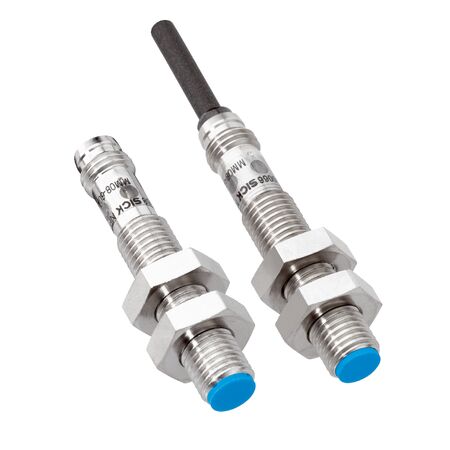

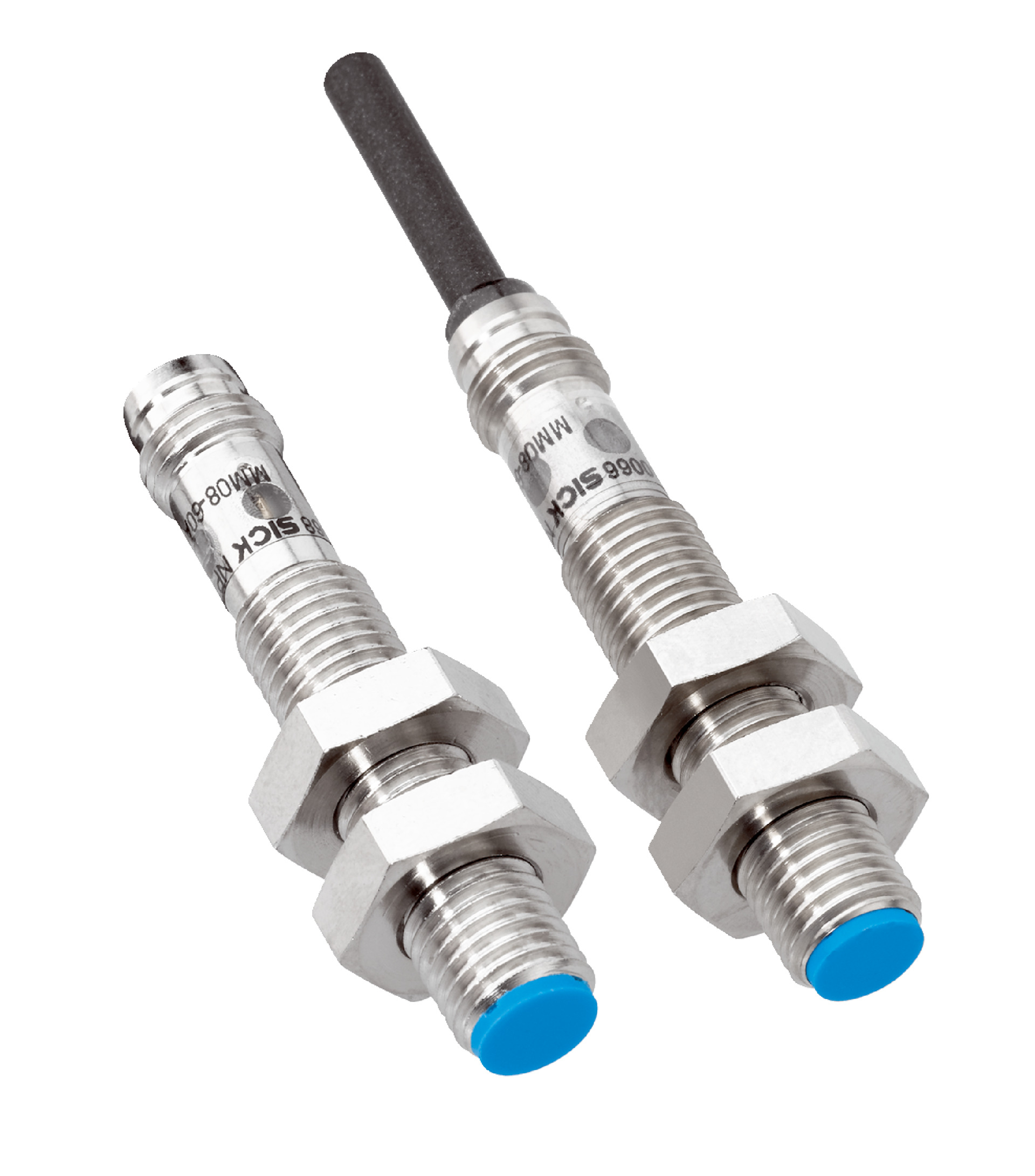

Inductive Proximity Sensor M8 | Short-Body Metal Housing | 60 mm Sensing Range | NPN Output | by SICK
The Inductive Proximity Sensor M8 is designed for precise object detection in industrial automation, featuring a robust short-body metal housing and a sensing range of up to 60 mm. With an NPN normally open output and high switching frequency of 1000 Hz, this sensor is perfect for manufacturing lines and robotics applications, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor M8 | Short-Body Metal Housing | 60 mm Sensing Range | NPN Output | by SICK
Brand: SICK
SKU: 1040068
Alternatively Known As: Inductive Proximity Sensor M8, M8 Proximity Switch, NPN Proximity Sensor, Short Body Inductive Sensor
Technical Specifications
- Housing: Short-body, metal nickel-plated brass
- Thread size: M8 x 1
- Diameter: 8 mm
- Sensing range Sn: 0 to 60 mm
- Safe sensing range Sa: 48.6 mm
- Magnetic sensitivity: 1 mT
- Switching frequency: 1000 Hz
- Connection type: Connector M8, 3-pin
- Switching output: NPN, normally open (NO)
- Electrical wiring: DC 3-wire
- Magnetic alignment: Axial
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Current consumption: 10 mA
- Time delay before availability: ≤ 20 ms
- Hysteresis: 1% to 10%
- Reproducibility: ≤ 1%
- Temperature drift: ± 10%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- Ambient operating temperature: -25°C to +75°C
- Housing length: 46 mm
- Thread length: 29.5 mm
- Tightening torque max: 6 Nm
- Dimensions (H x L x W): 8mm x 46mm x 8mm
- Weight: 0.1 kg
Key Features
- Short-body metal housing with nickel-plated brass
- M8 x 1 thread size with 60 mm sensing range
- NPN normally open switching output with DC 3-wire wiring
- High switching frequency of 1000 Hz
- IP67 rated enclosure for dust and water protection
- Reverse polarity, short-circuit, and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
- Operating temperature range from -25°C to +75°C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and secure mounting according to industrial safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Magnetic field sensing in machinery
- Robotics and conveyor systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable metal housing extends product life reducing waste
- Low power consumption with efficient DC 3-wire design
- Complies with China-RoHS for hazardous substance reduction
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MM08-60ANS-ZTK inductive proximity sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
