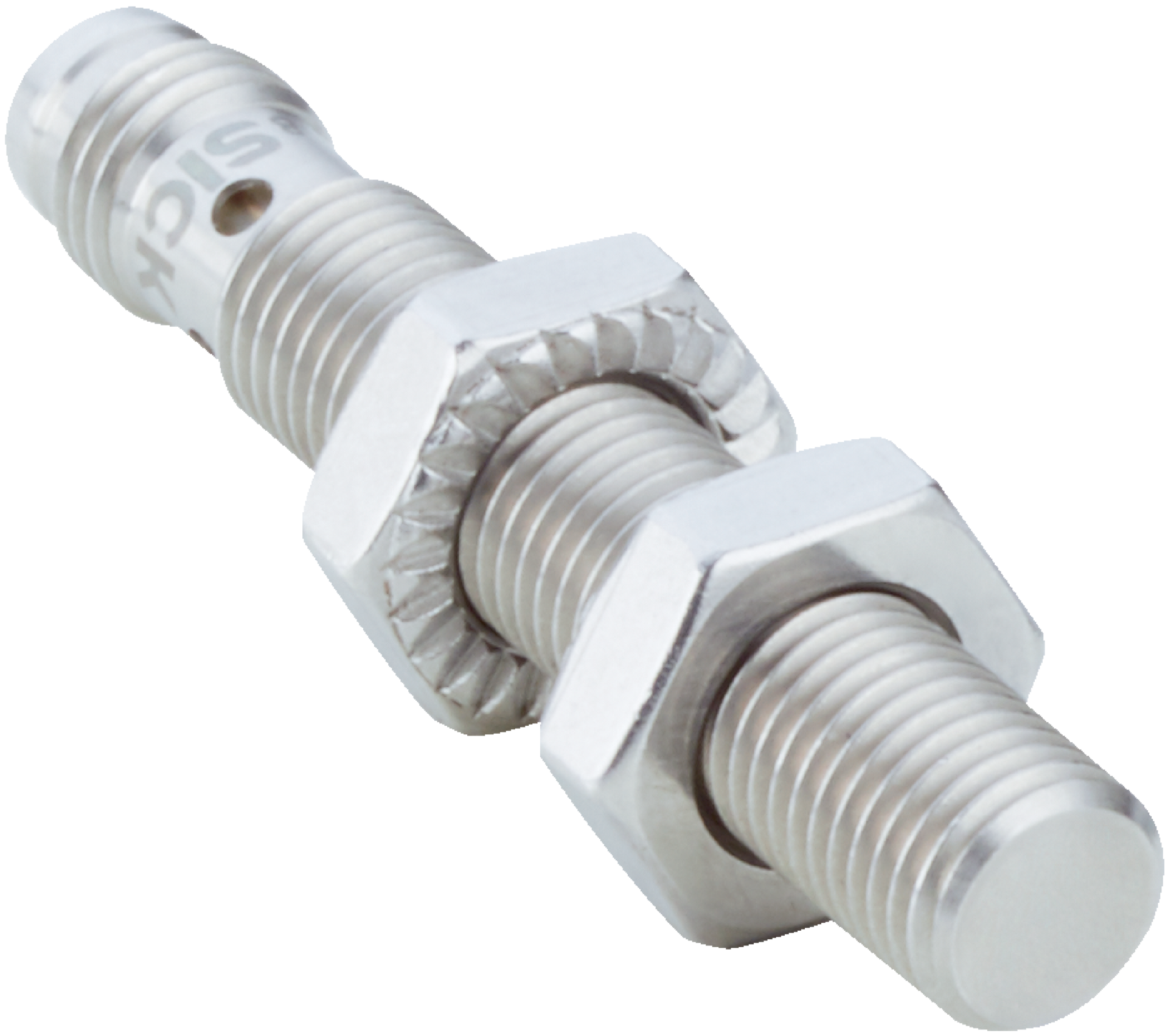

Inductive Proximity Sensor M8 | Stainless Steel Housing | IP68 & IP69K Rated | PNP Output | by SICK
The Inductive Proximity Sensor M8 is designed for reliable object detection in industrial automation, featuring a robust stainless steel housing and an IP68/IP69K protection rating. With a sensing range of 2 mm and a PNP normally open output, it's perfect for applications in harsh environments, including those with coolants and lubricants. Ensure professional installation for optimal performance and compliance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M8 Inductive Proximity Sensor, IMI08 Proximity Sensor, Stainless Steel Proximity Sensor, PNP Proximity Sensor M8
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 200 ms
- Hysteresis: 1% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ≤ 10%
- EMC compliant according to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 100 g / 11 ms / 1000 cycles; 150 g / 1 million cycles; 10 Hz to 55 Hz, 1 mm / 55 Hz to 500 Hz / 15 g
- Ambient operating temperature: -25 °C to +75 °C
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Protection class: III
- Switching output: PNP, normally open (NO)
- Connection type: Connector M8, 3-pin
- Dimensions (H x L x W): 50mm x 50mm x 8mm
- Weight: 0.1 kg
Key Features
- Metric housing with M8 x 1 thread size
- Sensing range of 2 mm with safe sensing range of 1.62 mm
- Flush installation type
- Switching frequency of 100 Hz
- PNP switching output with NO function
- Connector M8, 3-pin connection type
- Enclosure rating IP68 and IP69K for high protection
- Sensing face made of stainless steel V2A, resistant to coolant lubricants
- Includes mounting nut made of V2A stainless steel with locking teeth
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure correct mounting, wiring, and compliance with safety standards.
Applications
- Industrial automation for object detection
- Use in zones with coolants and lubricants
- Difficult application conditions requiring robust sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- High protection rating (IP68/IP69K) ensures long service life in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

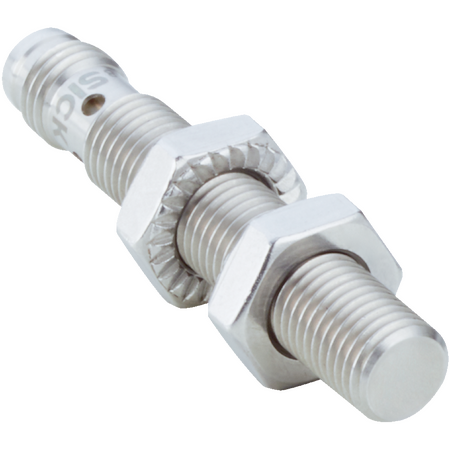

The SICK IMI08-02BPSVT0S Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
