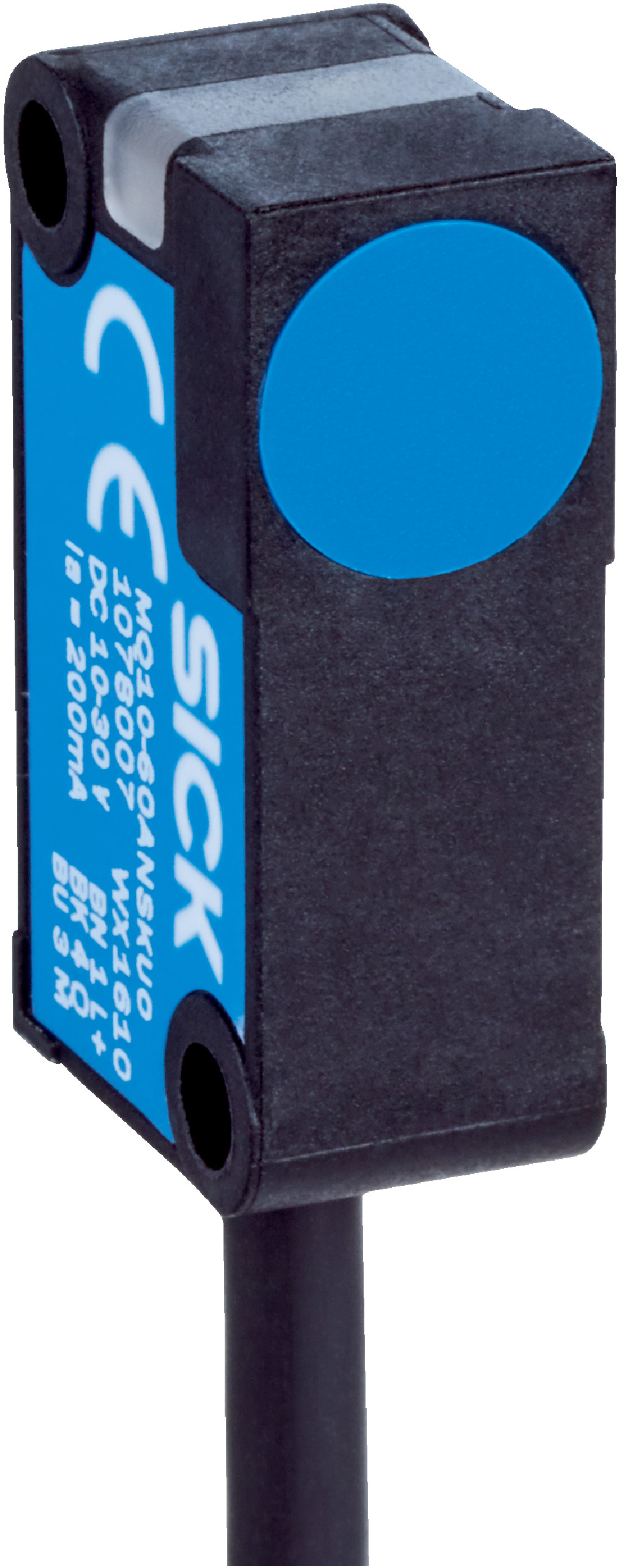

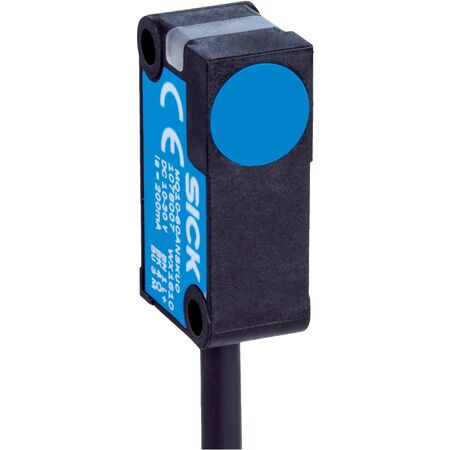

Inductive Proximity Sensor MQ10-60APSKU0 | 60mm Sensing Range | 1000Hz Switching Frequency | IP67 Rated | by SICK
The Inductive Proximity Sensor MQ10-60APSKU0 is designed for reliable object detection in industrial automation. With a sensing range of up to 60 mm and a high switching frequency of 1,000 Hz, it ensures fast and accurate position sensing. Built for durability with an IP67 rated enclosure, this sensor is perfect for manufacturing lines and safety control systems, providing robust performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Switching output: PNP, Normally Open (NO)
- Switching frequency: 1,000 Hz
- Sensing range (Sn): 0 mm to 60 mm
- Safe sensing range (Sa): 48.6 mm
- Current consumption: 5 mA
- Voltage drop: ≤ 1.5 V
- Time delay before availability: ≤ 26 ms
- Hysteresis: 1% to 10%
- Reproducibility: ≤ 1%
- Temperature drift: ± 10%
- EMC compliant according to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- Cable: 3-wire, 2 m PUR
- Protection: Reverse polarity, short-circuit, power-up pulse
- Operating temperature: -25 °C to +75 °C
- Enclosure rating: IP67
- Housing and sensing face material: Plastic, VISTAL®
- Dimensions (H x L x W): 28mm x 16mm x 10mm
- Weight: 0.1 kg
Key Features
- Rectangular housing made of durable VISTAL® plastic
- Sensing range up to 60 mm with safe sensing range of 48.6 mm
- High switching frequency of 1,000 Hz for fast response
- IP67 rated enclosure for dust and water protection
- Reverse polarity, short-circuit, and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Cable connection with 3-wire, 2 m PUR cable
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Safety and control systems requiring reliable proximity sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with 5 mA current draw
- Durable construction reduces replacement frequency and waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK MQ10-60APSKU0 inductive sensor is available for immediate purchase, ideal for industrial automation and control applications requiring precise proximity detection.
