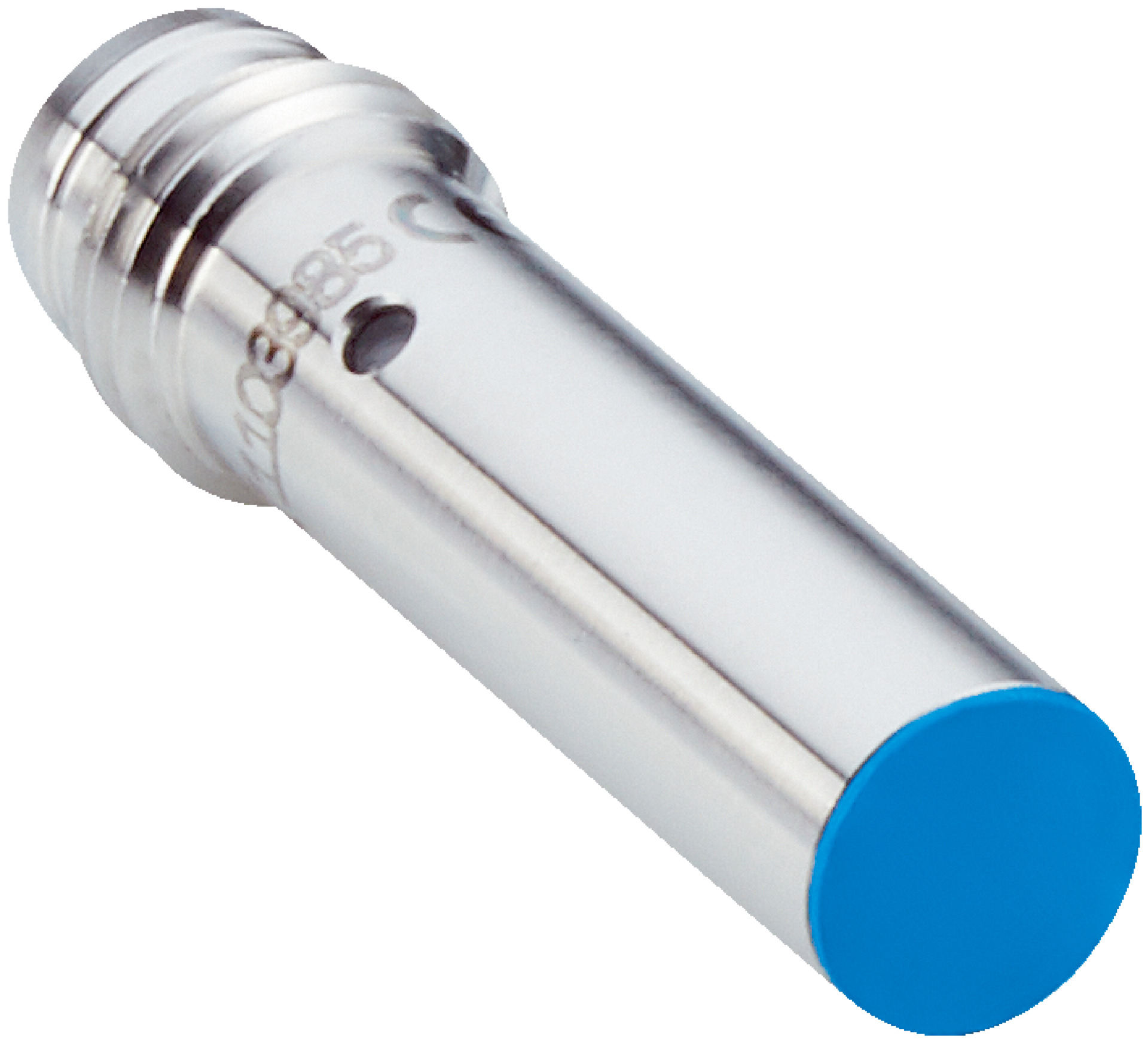

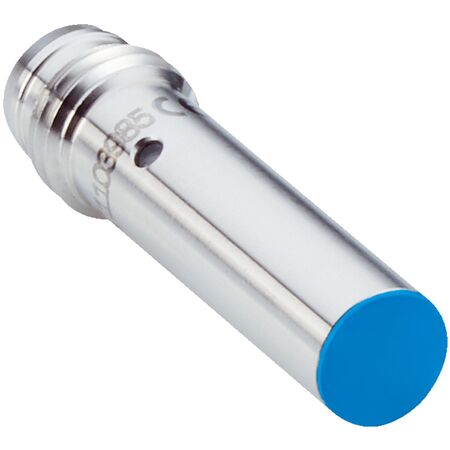

Inductive Proximity Sensor | NPN NC Output | IP67 Rated | Short Housing | by SICK
The Inductive Proximity Sensor IHM06-03BNOVT0G features a compact design with a 29 mm housing length, making it ideal for flush mounting in tight spaces. With an NPN normally closed output and an IP67 enclosure rating, this sensor is perfect for industrial automation and object detection applications, ensuring reliable performance even in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Switching frequency: 1,500 Hz
- Switching output: NPN, normally closed (NC)
- Connection type: Connector M8, 3-pin
- Enclosure rating: IP67
- Voltage drop: ≤ 2 V
- Ripple: ≤ 20%
- Time delay before availability: ≤ 50 ms
- Hysteresis: 1% to 10%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ≤ 10%
- Continuous current: ≤ 200 mA
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 to 55 Hz, 1 mm
- Operating temperature: -25 °C to +70 °C
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic LCP
- Dimensions (H x L x W): 6.5mm x 29mm x 6.5mm
- Weight: 0.1 kg
Key Features
- Extremely short model with 29 mm housing length
- Flush installation type
- Sensing range of 3 mm with safe sensing range of 2.43 mm
- Switching frequency up to 1,500 Hz
- NPN normally closed (NC) switching output
- Connector M8, 3-pin connection type
- IP67 rated enclosure for dust and water protection
- Visual adjustment indicator and triple sensing range
- Short-circuit and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide operating temperature range from -25 °C to +70 °C
- Housing made of stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face made of plastic LCP
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Flush mounting in tight spaces requiring short housing sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Energy-efficient operation with low power consumption
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IHM06-03BNOVT0G inductive sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications requiring reliable object detection in compact spaces.
