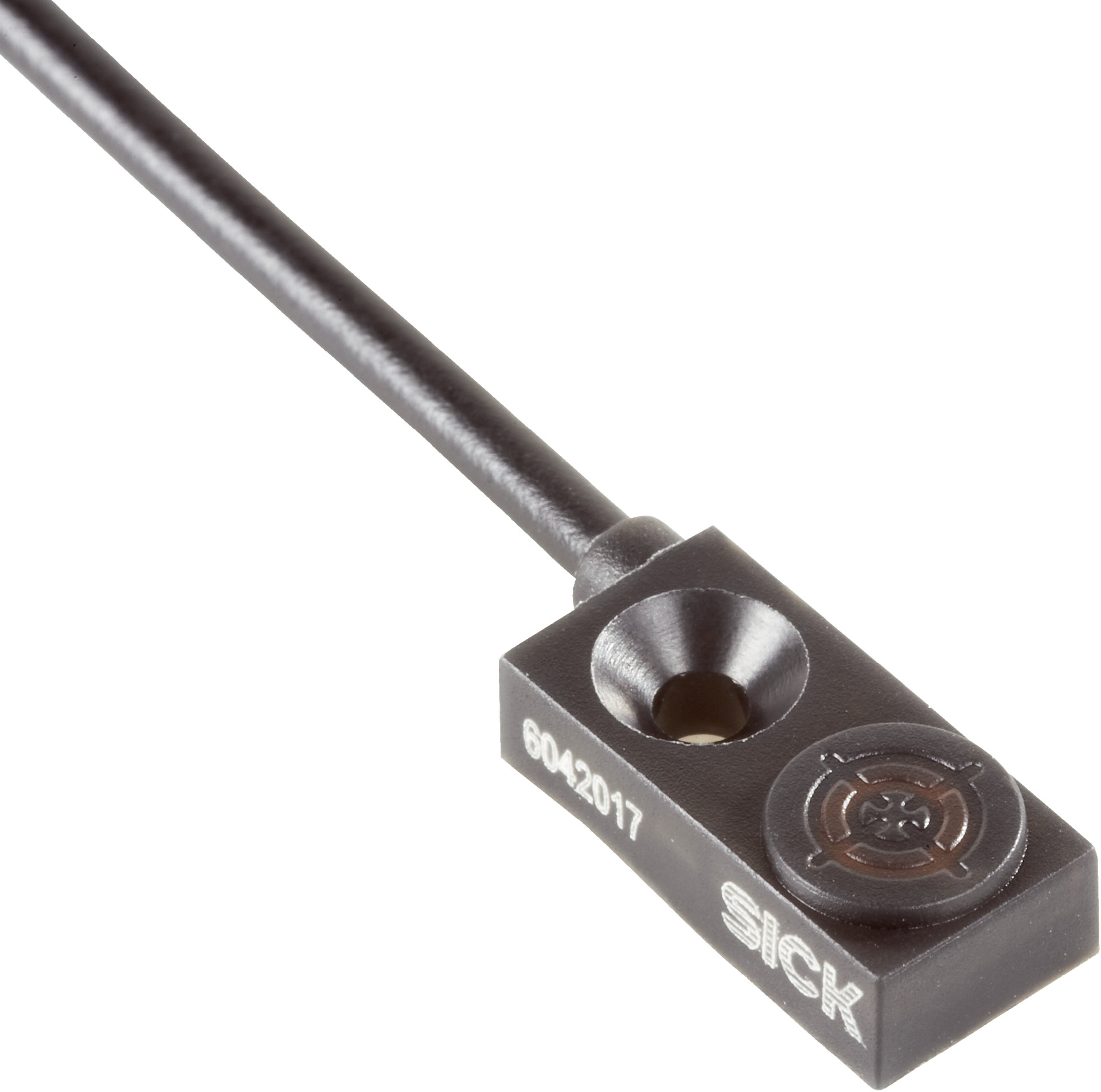

Inductive Proximity Sensor | NPN Normally Closed | IP67 Rated | 1.5mm Sensing Range | by SICK
The Inductive Proximity Sensor is designed for precise object detection in industrial automation, featuring a sensing range of 1.5 mm and a high switching frequency of 600 Hz. With an IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for manufacturing lines and safety control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Switching output: NPN, normally closed (NC)
- Switching frequency: 600 Hz
- Sensing range (Sn): 1.5 mm
- Safe sensing range (Sa): 1.215 mm
- Voltage drop: < 1.5 V
- Ripple: ≤ 10%
- Time delay before availability: ≤ 10 ms
- Hysteresis: 1% to 15%
- Reproducibility: ±1%
- Continuous current Ia: ≤ 100 mA
- Cable: 3-wire, 2 m length, PVC material, 0.09 mm² conductor size
- Enclosure rating: IP67
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Operating temperature: -25 °C to +70 °C
- Housing and sensing face material: Plastic, PA6
- Tightening torque max: 0.06 Nm
- Dimensions (H x L x W): 16mm x 4mm x 8mm
- Weight: 0.1 kg
Key Features
- Rectangular housing with flush installation
- Sensing range of 1.5 mm with safe sensing range of 1.215 mm
- High switching frequency of 600 Hz
- NPN normally closed switching output
- IP67 rated enclosure for dust and water protection
- Short-circuit protection included
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from -25 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor installation to ensure proper mounting and wiring according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Safety and control systems requiring precise proximity sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP67 rated housing reduces replacement frequency and waste
- Low power consumption with DC 3-wire electrical wiring
- Robust design minimizes environmental impact through extended service life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IQ04-1B5NOKW2S inductive sensor is available for immediate purchase, ideal for industrial automation and control applications requiring reliable proximity sensing.
